Brand:

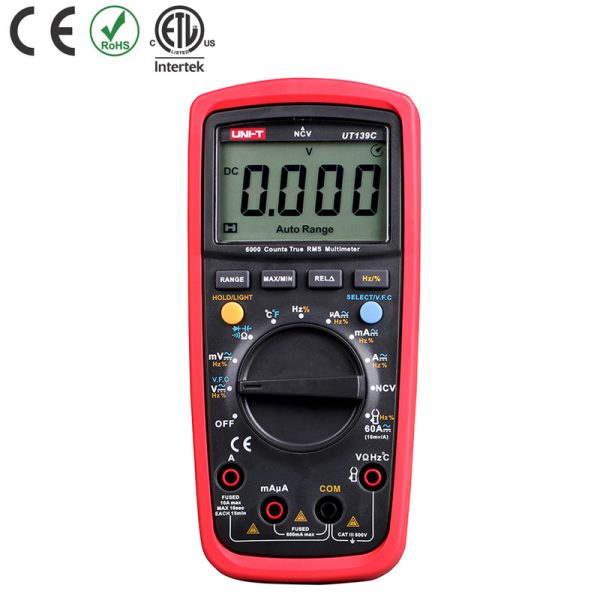

UT139C True RMS Digital Multimeter

Categories: ,

206,00 AED (Excl. VAT)

[posbadges]

Out of stock

UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.
GET QUOTATION

Brand:

UT139C True RMS Digital Multimeter

Categories: ,

206,00 AED (Excl. VAT)

[posbadges]

Out of stock

UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]
UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.

Features

  • MAX/MIN/REL modes
  • Data hold, LED backlight, auto power off
  • Full range protection (600V)
  • True RMS
  • NCV
  • Auto/manual ranges selectable



Specifications

Specifications Range UT139C
DC voltage (V) 600V ±(0.5%+2)
AC voltage (V) 600V ±(0.8%+3)
DC current (A) 10A ±(0.7%+2)
AC current (A) 10A ±(1%+3)
Resistance (Ω) 60MΩ ±(0.8%+2)
Capacitance (F) 99.99mF ±(4%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Temperature (°C) -40°C~1000°C ±(1%+3)
Temperature (°F) -40°F~1832°F ±(1.5%+5)
Features
Display count 6000
Auto range/Manual range
/True RMS		 √
Bandwidth (Hz) 45Hz~1kHz
NCV/Continuity buzzer √
Duty cycle 0.1%~99.9% √
Diode Around 3V
General Characteristics
Power 1.5V battery (R6) x 2
Display 58mm x 36mm
Product color Red and grey
Product net weight 354g
Product size 170mm x 80mm x 48mm

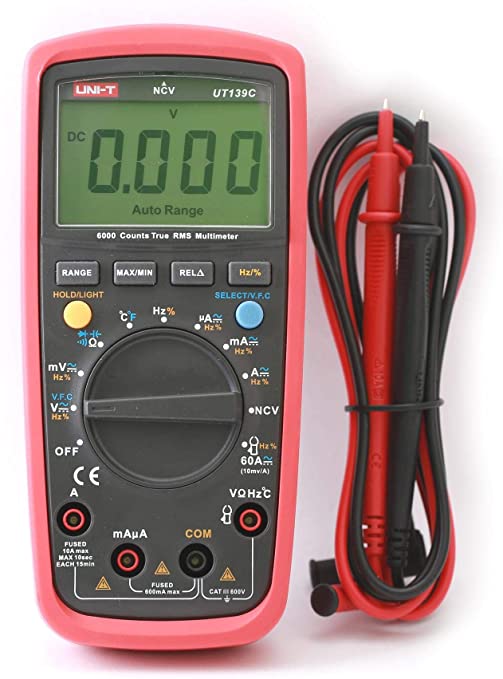

Standard accessories Batteries, test leads, temperature probe
Standard individual packing Gift box, English manual
Standard quantity per carton 20pcs
Standard carton measurement 450mm x 330mm x 340mm
Standard carton gross weight 12.2kg
Optional accessory Current sensor AC/DC 40A

Additional information
