Brand: Uni-T
Categories: Electrical Meters, Measuring Instruments
88,00 AED (Excl. VAT)
Out of stock

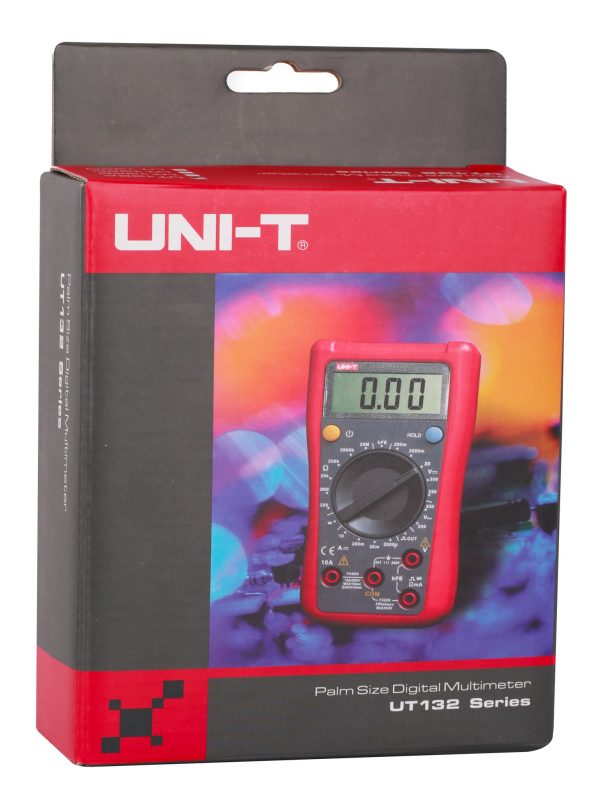

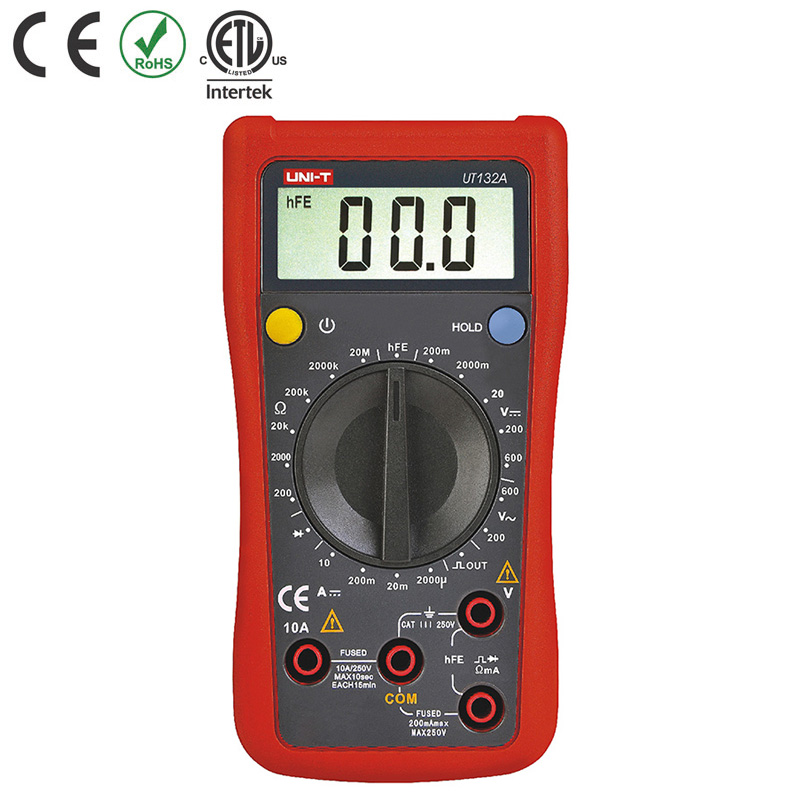

UNI-T’s UT132A is a palm size digital multimeter, testing AC/DC voltage, resistance and more. Over 10MΩ input impedance for DCV to ensure test accuracy.
Brand: Uni-T
Categories: Electrical Meters, Measuring Instruments
88,00 AED (Excl. VAT)
Out of stock
UNI-T’s UT132A is a palm size digital multimeter, testing AC/DC voltage, resistance and more. Over 10MΩ input impedance for DCV to ensure test accuracy.
UNI-T’s UT132A is a palm size digital multimeter, testing AC/DC voltage, resistance and more. Over 10MΩ input impedance for DCV to ensure test accuracy.
| Specifications | Range | Best Accuracy |
| Model | UT132A | |
| DC Voltage (V) | EU: 200mV/2000mV/20V/ 200V/600V | ±(0.5%+2) |
| ROW: 200mV/2000mV/20V/ 200V/250V | ±(0.5%+2) | |
| AC Voltage (V) | EU: 200V/600V | ±(1.2%+3) |
| ROW: 200V/250V | ±(1.2%+3) | |
| DC Current (A) | 2000μA/20mA/200mA/10A | ±(1%+2) |
| Resistance (Ω) | 200Ω/2000Ω/20kΩ/200kΩ/2000kΩ/20MΩ | ±(0.8%+5) |
| Features | ||
| Display Count | 2000 | |
| Manual Range | √ | |
| Square Wave Output | √ | |
| Diode | √ | |
| Transistor | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| LCD Size | 49mm X 18mm | |
| Product Color | Red and grey | |
| Product Net Weight | 200g | |
| Product Size | 72mm×137mm×35mm | |

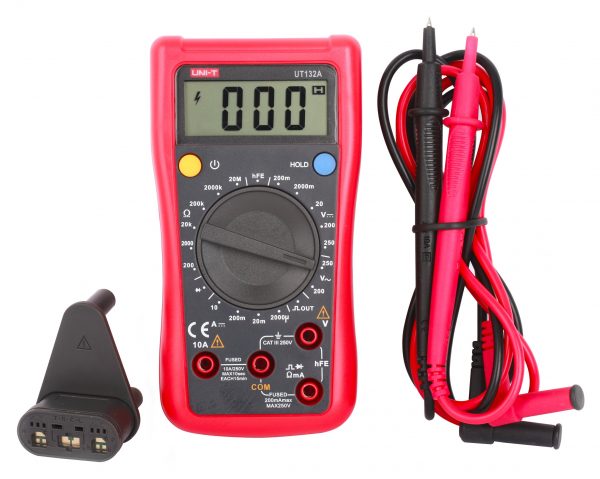

| Standard Accessories | Battery, test lead, Multi-purpose socket | |
| Standard Individual Packing | Gift box, English manual | |
| Standard Quantity Per Carton | 40pcs | |
| Standard Carton Measurement | 540mm × 360mm × 290mm (0.09CBM per standard carton) | |
| Standard Carton Gross Weight | 22.7kg | |
