MAIN FEATURES

• LED display: 7 bright red segments with 7 digits, 15 mm high, for viewing the weight and 6 LEDs for showing the active functions.
• Waterproof keypad with 18 functional keys.

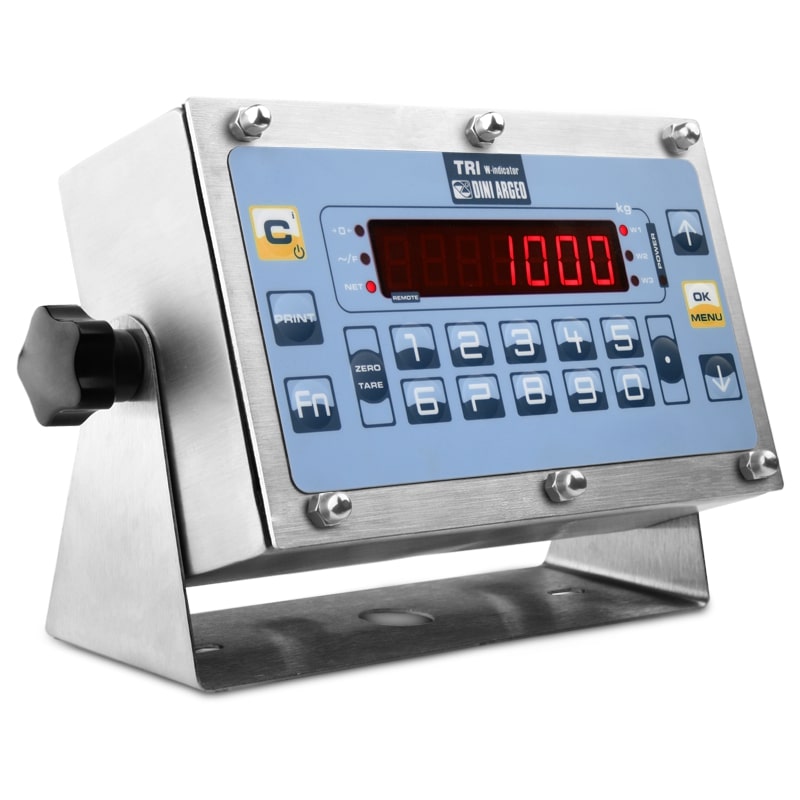

• Stainless steel indicator with bracket for mounting on a column or shelf with adjustable angle.

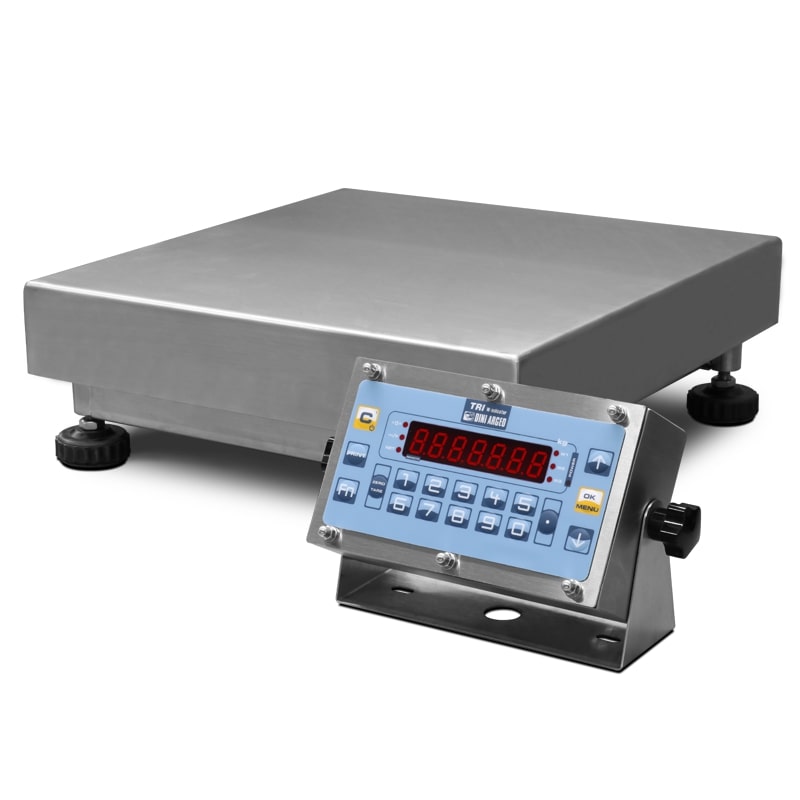

• Stainless steel structure, mechanics, small parts, and plate.
• Functions with aluminium “single point” load cell, with anticorrosive treatments.
• Protection from dust and water splashes according to IP65 standards.
• Adjustable feet and level.
• Digital calibration & set-up configurable from keyboard or from PC with DINITOOLS.
• 3m cable between indicator and platform
• 12 Vdc power supply with a built in 110-220 Vac power adapter.

SELECTABLE FUNCTIONS:

• Formulation.
• Horizontal / vertical / in unloading totalization with management of 3 zeroable and printable totals independent from each other (partial total, general total, grand total).
• +/- tolerance check.
• Counting.
• Percentage Weigh.
• Set point function active on all functioning modes.

I/O SECTION:

• RS232/C or TTL bidirectional output for connection to printer or remote display.
• Bi-directional RS232/C or RS485 configurable output for PC, PLC and additional remote display.

MAIN FUNCTIONS:

• Zeroing, Gross/Net selection, HR Visualisation x 10.
• Print and/or data transmission command, function command, on/off.
• Automatic tare, presettable tare, lock/unlock tare function.
• Horizontal totalization active on all functioning modes, selectable between automatic and manual; management of a total level
• Programmable printing from keyboard or from PC of 5 print formats (Print key, Totalization, Partial total, General total, Grand total, First weigh heading); each print format can contain 26 positions which may be simple ASCII codes or preconfigured print blocks (i.e. weigh progressives, gross/tare/net weigh, additional total, date and time, etc.)
