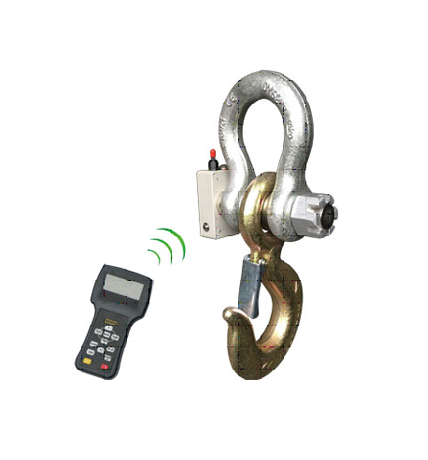

Sigma LQW-2D – Wireless Load Shackle Dynamometer

Name: Sigma LQW-2D - Wireless Load Shackle Dynamometer Supplier in Dubai, Abu Dhabi, Sharjah - Petra - UAE Weighing Equipment Division
SKU: SIG-LoadShackle-LQW-2D-Series
Availability: InStock

Categories: Dynamometer, Wireless Load Cell

0,00 AED (Excl. VAT)

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Capacity

Clear

Brand : Sigma (Taiwan)
Body Structure: High tensile carbon steel construction
Protection class: IP67 class water proof
Units: Kg/ Ton/ Lb./ N/ kN
With 280D Handheld Indicator
Set-Point: Two user programmable Set-Point can be used for safety and warning applications
Power
- Load Shackle Battery Standard 18650 Lithium battery, 3.7V/3100mAh
- Indicator Battery Standard 18650 Lithium battery, 3.7V/3100mAh
Wireless Distance: 200m without obstacle
1 year: warranty

GET QUOTATION

Brand: SiGMA

Sigma LQW-2D – Wireless Load Shackle Dynamometer

Categories: Dynamometer, Wireless Load Cell

0,00 AED (Excl. VAT)

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Capacity

Clear

Brand : Sigma (Taiwan)
Body Structure: High tensile carbon steel construction
Protection class: IP67 class water proof
Units: Kg/ Ton/ Lb./ N/ kN
With 280D Handheld Indicator
Set-Point: Two user programmable Set-Point can be used for safety and warning applications
Power
- Load Shackle Battery Standard 18650 Lithium battery, 3.7V/3100mAh
- Indicator Battery Standard 18650 Lithium battery, 3.7V/3100mAh
Wireless Distance: 200m without obstacle
1 year: warranty

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

LQW-2D wireless load shackle is an extremely well-built instrument for industry use, as a standard wireless tool offers universal applications, whether used as a conventional crane weigher or to measure force, LQW-2D wireless load shackle is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator 280D.

Specifications:

Material: High tensile carbon steel construction
Protection class: IP67 class water proof
Accuracy: 0.1%
Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)
Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places value.
Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).
Set-Point: Two user programmable Set-Point can be used for safety and warning applications

Features

280D Indicator Display	25mm (1’’) 5digits LCD with backlight
Power on zero range	20% F.S.
Manual Zero Range	4% F.S.
Tare Range	100% F.S.
Stable Time	≤5 seconds
Overload Indication	100% F.S. + 9e

Max. Safety Load	125% F.S.
Ultimate Load	400% F.S.
Sealing Standard	IP-67 protected from dust and high pressure jets of water
Load Shackle Battery	Standard 18650 Lithium battery, 3.7V/3100mAh
Indicator Battery	Standard 18650 Lithium battery, 3.7V/3100mAh
Operating Temp.	– 20℃ ~ + 50℃
Operating Humidity	≤85% RH under 20℃
Wireless Distance	200M without obstacle
