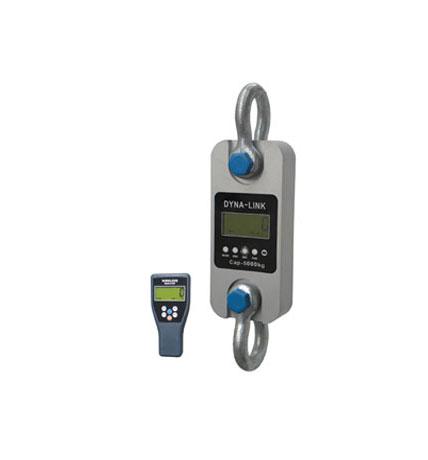

Sigma DDM-W3 – Wireless Dynamometer with 380 Handheld Indicator

0,00 AED (Excl. VAT)

[posbadges]
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
  • Brand : Sigma (Taiwan)
  • Body Structure: Aluminum / Alloy Steel powder coated
  • Waterproof keypad
  • Display:
    • Dynamometer: 25mm LCD display with backlight
    • 380 Indicator: 25mm LCD display with backlight
  • Wireless Distance: Min. 80m(default)
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
  • Power: AA Batteries
  • Over Load Protection and alarm
  • 1 year: warranty
GET QUOTATION

Brand:

Sigma DDM-W3 – Wireless Dynamometer with 380 Handheld Indicator

0,00 AED (Excl. VAT)

[posbadges]
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
Call for price
  • Brand : Sigma (Taiwan)
  • Body Structure: Aluminum / Alloy Steel powder coated
  • Waterproof keypad
  • Display:
    • Dynamometer: 25mm LCD display with backlight
    • 380 Indicator: 25mm LCD display with backlight
  • Wireless Distance: Min. 80m(default)
  • Units: Kg/ Ton/ Lb./ N/ kN
  • Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto-off, Programmable Set-Point, gravity acceleration
  • Power: AA Batteries
  • Over Load Protection and alarm
  • 1 year: warranty
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

DDM-W3 wireless dynamometer is an extremely well-built instrument for industry use, as a standard wireless tool that offers universal applications. The indicator 380 is handheld and very compact to use, making the customer requirements simpler and handier.  DDM-W3 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with Palm size 380 indicator.

Specifications:

  • Rugged construction.
  • Accuracy: 0.05% of capacity.
  • All functions and units are clearly displayed on the LCD (with backlighting).
  • Digits are 1 inch high for easy distant viewing.
  • Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
  • Long battery life on 3 standard “LR6(AA)”size alkaline batteries.
  • All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
  • Infrared Remote control easier to calibration(with password).
  • Infrared Remote control with many fuctions : “ZERO”, ”TARE”,”CLEAR”, “PEAK”, ”ACCUMULATE” ,”HOLD” ,”Unit Change” ,”Voltage Check” and “Power OFF”.
  • 4 local mechanical keys :”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.?
  • low battery warning.
  • RF wireless palm indicator.

Features:-

Display 25mm (1’’) 5digits LCD
Power on zero range 20% F.S.
Manual Zero Range 4% F.S.
Tare Range 20% F.S.
Stable Time ≤10seconds
Overload Indication 100% F.S. + 9e
Max. Safety Load 125% F.S.
Ultimate Load 400% F.S.
Battery Life ≥40 hours
Battery Type “LR6(AA)”size alkaline batteries. 1.5Vⅹ3
Operating Temp – 10℃ ~ + 40℃
Operating Humidity ≤85% RH under 20℃
Remote Controller Distance Min. 15m
Wireless Frequency 2.4GHz(default),433MHz,860MHz(optional)

Main technical data

MODEL Max. capacity (kg/lb) Min. weigh(kg) Division (kg /lb) Total dispay counts (n)
DDM-W3-01 1000/2200 10/20 0.5/1 2000
DDM-W3-02 2000/4400 20/40 1/2 2000
DDM-W3-03 3000/6600 20/40 1/2 3000
DDM-W3-05 5000/1100 40/80 2/4 2500
DDM-W3-10 10000/22000 100/200 5/10 2000
DDM-W3-20 20000/44000 200/400 10/20 2000
DDM-W3-30 30000/66000 200/400 10/20 3000

Specification

MODEL A(mm) B(mm) C(mm) D(mm) φ(mm) H(mm) Material
DL-W3-01 245 112 37 190 43 335 Aluminum
DL-W3-02 245 112 37 190 43 335 Aluminum
DL-W3-03 260 123 37 195 51 365 Aluminum
DL-W3-05 285 123 57 210 58 405 Aluminum
DL-W3-10 320 120 57 230 92 535 Alloy Steel
DL-W3-20 420 128 74 260 127 660 Alloy Steel
DL-W3-30 420 138 82 280 146 740 Alloy Steel

Additional information

Model

DDM-W3-01, DDM-W3-02, DDM-W3-03, DDM-W3-05, DDM-W3-10, DDM-W3-20, DDM-W3-30

Capacity / Division

1 ton / 0.5 kg, 2 ton / 1 kg, 3 ton / 1 kg, 5 ton / 2 kg, 10 ton / 5 kg, 20 ton / 5 kg, 30 ton / 10 kg

Warranty
