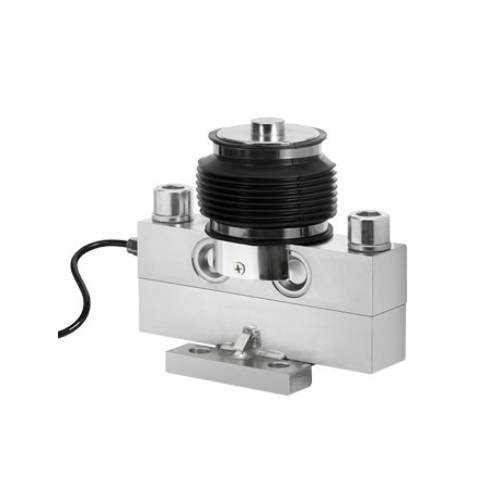

RSBT Double Shear Beam Load Cells

0,00 AED (Excl. VAT)

[posbadges]
Call for price
Call for price
Call for price

Double shear beam load cells particularly suitable for weighing weighbridges, dosage systems, tanks, silos, etc., complete with support and oscillating spherical joint. CE-M approved.

CAPACITIES (kg): 25000, 30000, 40000.

OIML R60. C3 precision class.

Nickel-plated steel. IP68 protection.

GET QUOTATION

Brand:

RSBT Double Shear Beam Load Cells

0,00 AED (Excl. VAT)

[posbadges]
Call for price
Call for price
Call for price

Double shear beam load cells particularly suitable for weighing weighbridges, dosage systems, tanks, silos, etc., complete with support and oscillating spherical joint. CE-M approved.

CAPACITIES (kg): 25000, 30000, 40000.

OIML R60. C3 precision class.

Nickel-plated steel. IP68 protection.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

MAIN FEATURES

  • C3 PRECISION CLASS;
  • EXECUTED IN NICKEL-PLATED STEEL WITH LASER SOLDERINGS;
  • HIGH PRECISION AND LINEARITY ALSO WITH NON PERPENDICULAR LOADS;
  • OPTIMISED FOR PARALLEL CONNECTION;
  • IP68 PROTECTION DEGREE;
  • CAPACITY FROM 25000 TO 40000kg;
  • SHIELDED TEFLON CONNECTION CABLE;
  • TEST CERTIFICATE AVAILABLE UPON REQUEST.



TECHNICAL FEATURES

  • Minimum verification interval: Vmin = EMax / 10.000;
  • Maximum number of load cell divisions: nLC=3000 (C3);
  • Full Scale Output: 2mV/V +/- 0,2%;
  • Temperature effect on full scale output: 0,0014%FS/°C;
  • Tempeature effect on the zero: +/- 0,0017%FS/°C;
  • Compensated temperature range: -10°C/+40°C;
  • Operating temperature range: -35°C/+65°C;
  • Creep error after 30 minutes: 0,02% F.S;
  • Excitation voltage: from 5 to 18 VDC;
  • Input Resistance: 750 Ohm;
  • Output Resistance: 700 ± 7 Ohm;
  • Zero Balance: +/-1,5% F.S.;
  • Insulation resistance > 5000 MOhm;
  • Safe overload > 150% F.S.;
  • Maximum overload 300% F.S.;
  • 4-wire shielded cable, 15m long, 6mm diameter.



ATEX VERSION

  • The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
    ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
    ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
    The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
  • IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.



Wiring Code
Colour Function
SHIELD
GREEN OUTPUT +
RED INPUT +
WHITE OUTPUT –
BLACK INPUT –

Additional information

Weight N/A
Model

RSBT25C3, RSBT30C3, RSBT40C3

Max (kg)

25000, 30000, 40000
