Tags: Analog Load Cell, Force Load Tester, Force Sensor, Force Tester, Force Transducer, Load Cell Sensor, Load Cell Transducer, Shear Beam Load Cell, Strain Gauge Load Cell, Strain Gauge Sensor, Strain Gauge Transducer, Weighing Sensor, Weight Sensor, Weight Transducer

Brand: Dini Argeo

“PLT” SERIES’ 350 Ohm NIKEL-PLATED LOAD CELL KITS FOR ASSEMBLING FLOOR SCALES

Name: "PLT" SERIES' 350 Ohm NIKEL-PLATED LOAD CELL KITS FOR ASSEMBLING FLOOR SCALES Supplier in Dubai, Abu Dhabi, Sharjah - Petra - UAE Weighing Equipment Division
Availability: InStock

Categories: Load Cell Kit, Shear Beam Load Cell

0,00 AED (Excl. VAT)

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

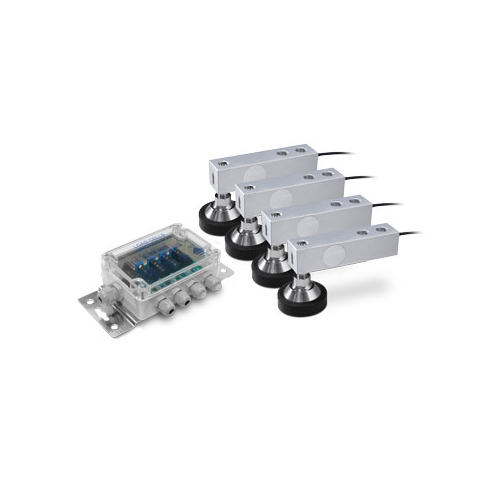

PLT420C3, Kit 4 x SBT500, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 500kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).

Call for price

PLT420C3, Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).

Call for price

PLT420C3, Kit 4 x SBT2000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 2000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).

Call for price

PLT410C3, Kit 4 x SBT500, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 500kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).

Call for price

PLT410C3, Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).

Call for price

PLT410C3, Kit 4 x SBT2000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 2000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).

Call for price

PLT405C3, Kit 4 x SBT500, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 500kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).

Call for price

PLT405C3, Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).

Call for price

PLT405C3, Kit 4 x SBT2000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 2000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).

Call for price

Model

Description

Clear

Ideal for creating platforms with 4 load cells of various sizes and capacities. The kit is made up of 4 350 Ohm IP67 nikel-plated load cells, OIML and NTEP approved, together with adjustable resting feet and an equalisation box.

LOAD CELL TECHNICAL FEATURES

Minimum load cell verification interval Vmin = EMax / 10.000
Maximum number of verification intervals nLC = 3000
Combined error 0,017% of Full Scale Output (F.S.)
Nonlinearity ± 0.02% FS
Hysteresis ± 0.02% FS
Repeatability ± 0.01% FS
Full Scale Output 2mV/V ± 0.5%
Zero balance ± 1% FS
Compensated Temperature Range -10°C/+50°C.
Operating Temperature Range -20°C/+60°C.
Creep error after 30 minutes <0,02% F.S. Maximum tolerated excitation voltage 15 Vdc Input Resistance 380 ± 20 Ohm
Output Resistance 350 ± 5 Ohm Insulation Resistance >5000 MOhm
Safe Overload 150% F.S.
Ultimate Overload 300% F.S.
6-wire shielded cable, 3.5m long, 5 mm diameter

GET QUOTATION

Brand: Dini Argeo

“PLT” SERIES’ 350 Ohm NIKEL-PLATED LOAD CELL KITS FOR ASSEMBLING FLOOR SCALES

Categories: Load Cell Kit, Shear Beam Load Cell

0,00 AED (Excl. VAT)

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Call for price

Model

Description

Clear

LOAD CELL TECHNICAL FEATURES

Minimum load cell verification interval Vmin = EMax / 10.000
Maximum number of verification intervals nLC = 3000
Combined error 0,017% of Full Scale Output (F.S.)
Nonlinearity ± 0.02% FS
Hysteresis ± 0.02% FS
Repeatability ± 0.01% FS
Full Scale Output 2mV/V ± 0.5%
Zero balance ± 1% FS
Compensated Temperature Range -10°C/+50°C.
Operating Temperature Range -20°C/+60°C.
Creep error after 30 minutes <0,02% F.S. Maximum tolerated excitation voltage 15 Vdc Input Resistance 380 ± 20 Ohm
Output Resistance 350 ± 5 Ohm Insulation Resistance >5000 MOhm
Safe Overload 150% F.S.
Ultimate Overload 300% F.S.
6-wire shielded cable, 3.5m long, 5 mm diameter

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

RESTING FEET

Adjustable in height
Nikel-plated steel structure
Anti-slip base
Ipersanitizable
Fitted with locking bush

JUNCTION BOX

Built-in junction and equalisation board
IP67 protection from dust and water
1 PG9 Cable gland and 4 PG7 Cable glands

DIMENSIONS – DECODING STANDARD CABLE

NOTE: dimensions in mm

Decoding of the standard cable colours

Additional information

Model

PLT405C3, PLT410C3, PLT420C3

Description

Kit 4 x SBT500, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 500kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box)., Kit 4 x SBT1000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 1000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box)., Kit 4 x SBT2000, 4 x SBFA, 4 x BLKM12I, 1 x JB4Q (4 IP67 nikel-plated steel load cells with 2000kg capacity, 4 nikel-plated steel adjustable resting feet, 4 bushings and IP67 ABS junction box).
