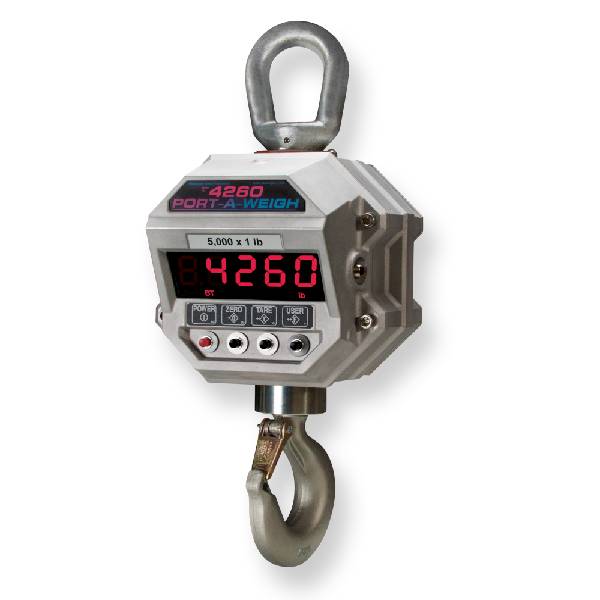

MSI-4260IS Intrinsically Safe Crane Scale

Categories:

0,00 AED (Excl. VAT)

[posbadges]

Standard Features

  • Crane unit with five-digit, 1.2 in (30 mm) LED display
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard​)
GET QUOTATION

Brand:

MSI-4260IS Intrinsically Safe Crane Scale

Categories:

0,00 AED (Excl. VAT)

[posbadges]

Standard Features

  • Crane unit with five-digit, 1.2 in (30 mm) LED display
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard​)
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

GET QUOTATION
[woocommerce_variations_table]

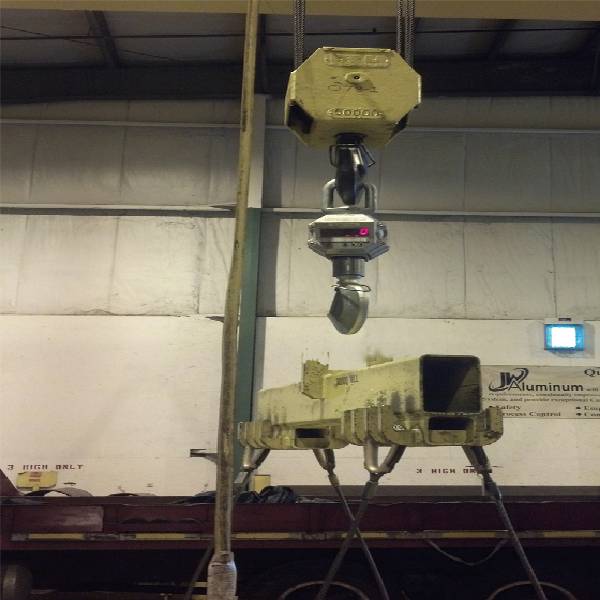

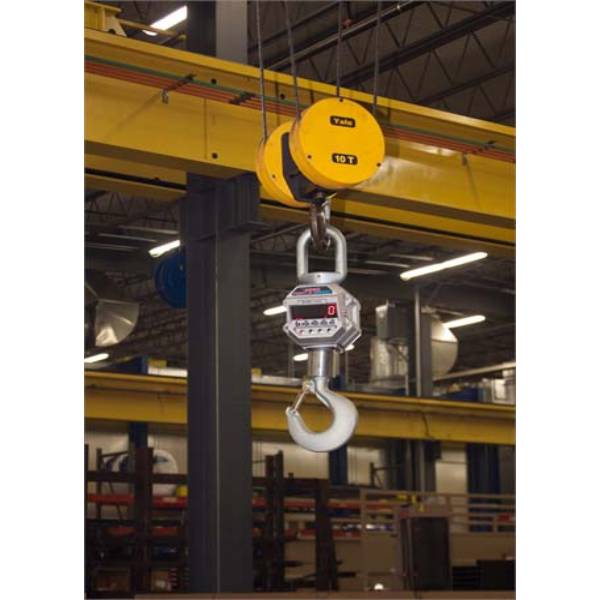

A Wireless, Digital Crane Scale

After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions. For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 meets or exceeds all industrial safety requirements, including OSHA, ANSI and ASME and is an economical choice for many bridge crane, foundry, and in-process material handling needs.



MSI-4260 IS Intrinsically Safe Specifications

Accuracy:
± (0.1% +1 d) of applied loadResolution:
3,000 to 5,000 d standard (up to 10,000 d available)Enclosure:
NEMA Type 4, IP66 marine grade 356 alloy anodized
cast aluminumInstrinsic Safety:
US Listings
FM16US0156X
IS / I, II, III / 1 / CDEFG / T4 Ta = -20°C to 50°C
I / 0 / AEx ia / IIB / T4 Ta = -20°C to 50°C Ga
20 / AEx ia / IIIC / T135°C Ta = -20°C to 50°C DaCanadian Listings
FM16CA0092X
IS / I / 1 / CD / T4 Ta = -10°C to 50°C
IS / II, III / 1 / EFG / T4 Ta = -10°C to 50°C
I / 0 / Ex ia / IIB / T4 Ta = -10°C to 50°C Ga
20 / Ex ia / IIIC / T135°C Ta = -10°C to 50°C DaATEX Listings
FM16ATEX0038X
II 1 G Ex ia IIB T4 Ga -10°C ≤ Ta ≤ 50°C
II 1 D Ex ia IIIC T135°C Da -10°C ≤ Ta ≤ 50°C
Lifting Eye, Shackle & Hook:
Crosby® or equal with 360° thrust-bearing swivel hookDesign Overload:
200% Safe / 500% Ultimate (except where noted)Functions:
Power: Turns unit on or off
Zero: Zeros applied load up to 100% of capacity
(limited range in NTEP Certified configuration)
Tare: Tares applied load and displays weight in Net
mode F1: Programmable as test, units, net/gross, total and peak holdDisplay:
Five-digit, 1.2 in (30 mm) LED with programmable brightness controlDisplayable Units:
Pounds or kilograms selectableAnnunciators:
COZ, Net, Gross, Total, Peak, Low Battery, lb/kg, Motion, SetpointsPower:
12 volt rechargeable battery.
115/230 VAC approved battery charger is included
Operating Time:
Up to 200 hours between charging with typical useAuto-Off Mode:
Select for 15, 30, 45 minutes, 1 hour or OffAuto Sleep Mode:
Power down during non-use and power up with
weight change or any key pressService Counters:
Counts number of lifts over percentage of capacity and lifts over capacityCalibration:
DigitalFiltering:
OFF, LO, HI-1, HI-2 selectableWarranty:
One-year limited warrantyApprovals:
NTEP CC 19-122
cFMus
CE Pending
