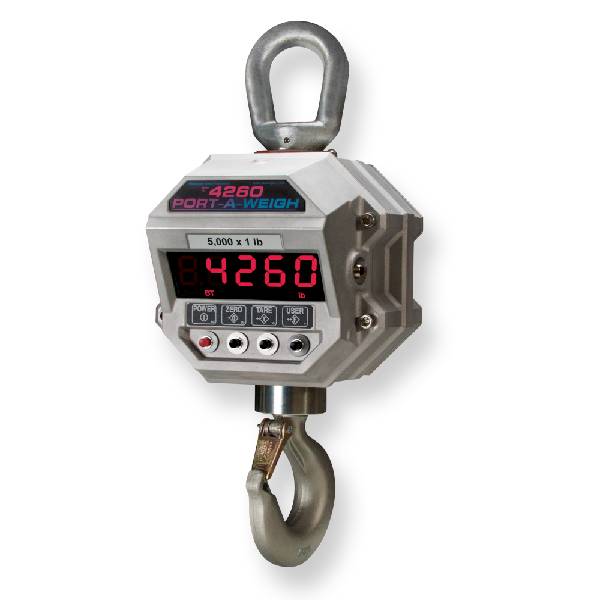

MSI-4260 Port-A-Weigh Crane Scale

Categories:

0,00 AED (Excl. VAT)

[posbadges]
  • Crane unit with five-digit, 1.2 in (30 mm) LED display
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger
    (NA plug standard​)



Options
(Contact MSI for application consultation)



  • Rugged remote control (control for On/Off, Zero, Tare and other functions)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display
    (typically 100 ft – 300 ft, line of sight, for longer range consult factory), TranSend and LaserLight2 remote display
  • Anti-heat shielding for high temperature applications
  • Substitute bottom swivel hook with shackle
  • Oversized top lifting eye for shackle
  • Oversized bottom hook
  • Universal direct power supply; 85-265 VAC, 47-440 Hz / 130-300 VDC
  • Low headroom top adapter
  • Audible alarm
  • Wi-Fi and Bluetooth communication are available for specialty applications. (Contact MSI for application consultation)
  • Custom top and bottom interfaces
  • Factory Mutual and ATEX approved Intrinsically Safe models available
GET QUOTATION

Brand:

MSI-4260 Port-A-Weigh Crane Scale

Categories:

0,00 AED (Excl. VAT)

[posbadges]
  • Crane unit with five-digit, 1.2 in (30 mm) LED display
  • Top lifting eye or shackle, bottom thrust bearing swivel hook
  • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger
    (NA plug standard​)



Options
(Contact MSI for application consultation)



  • Rugged remote control (control for On/Off, Zero, Tare and other functions)
  • RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display
    (typically 100 ft – 300 ft, line of sight, for longer range consult factory), TranSend and LaserLight2 remote display
  • Anti-heat shielding for high temperature applications
  • Substitute bottom swivel hook with shackle
  • Oversized top lifting eye for shackle
  • Oversized bottom hook
  • Universal direct power supply; 85-265 VAC, 47-440 Hz / 130-300 VDC
  • Low headroom top adapter
  • Audible alarm
  • Wi-Fi and Bluetooth communication are available for specialty applications. (Contact MSI for application consultation)
  • Custom top and bottom interfaces
  • Factory Mutual and ATEX approved Intrinsically Safe models available
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

GET QUOTATION
[woocommerce_variations_table]

A Wireless, Digital Crane Scale

The Industry Standard for Overhead Weighing

After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions. For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 meets or exceeds all industrial safety requirements, including OSHA, ANSI and ASME and is an economical choice for many bridge crane, foundry, and in-process material handling needs.



MSI-4260 Port-A-Weigh Specifications

Accuracy:
± 0.1% +1 d of applied loadResolution:
3000 to 5000 d standard (Up to 10,000 d available)Enclosure:
NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminumLifting Eye, Shackle & Hook:
Crosby® or equal with 360° thrust-bearing swivel hookDesign Overload:
200% Safe / 500% Ultimate (except where noted)Functions:
Power: Turns Unit ON or OFF, Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration),
Tare: Tares applied load and displays weight in Net mode, F1: Programmable as TEST, UNITS, NET/GROSS, TOTAL & PEAK HOLD
Display:
Five digit, 1.2 in (30 mm) LED with programmable brightness controlDisplayable Units:
Pounds or kilograms selectableAnnunciators:
COZ, Net, Gross, Total, Peak, Low Battery, lb/kg, Motion, SetpointsPower:
12 Volt rechargeable battery. 115/230 VAC battery charger is includedOperating Time:
Up to 200 hours between charging with typical use, less with optional RF Modem
LinkOperating Temperature:
-4°F to 140°F (-20°C to 60°C)

Auto-Off Mode:
Select for 15, 30, 45 minutes, 1 hour or Off

Auto Sleep Mode:
Power down during non-use and power up with weight change or any key pressService Counters:
Counts number of lifts over percentage of capacity and lifts over capacityCalibration:
DigitalFiltering:
OFF, LO, HI-1, HI-2 selectableWarranty:
One-year limitedApprovals:
NTEP CC 89-090 – 500 lb-2,000 lb (250 kg-1,000 kg)
NTEP CC 88-098A2 – 5,000 lb-70,000 lb (2,000 kg-35,000 kg)

Additional information

Model

SL15, SL30, SL50, SL100, SL300, SL500, SL1000
