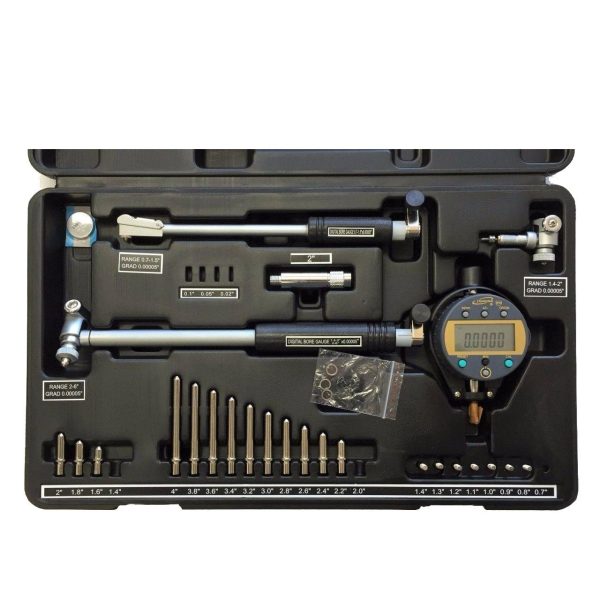

Measure these ranges with this kit:

• 0.7″ to 1.5″
• 1.4″ to 2″
• 2″ to 6″

Specifications:

• Bore gauge measuring range 0.7″ to 6″
• Bore gage total error: 0.0006″
• Bore gage self-centering error: 0.00025″
• Indicator measure range: 0-0.25″ / 0-6.85mm
• Resolution: 0.00005″ / 0.001mm
• Indicator Accuracy: 0.0003″ / 0.008mm
• Indicator Repeatability: 0.00005″ / 0.001mm
• Battery: 3V CR 2032 (included)

Description:

• Inch/metric interchange between inch and metric reading
• +/-: change measure direction
• Power On/Off
• Origin: Press 3 seconds to set Origin zero
• MIN: minimum diameter
• Preset: Preset data use a Master Ring
• Cal: Memorize MIN Data
• IP54 Water drop and Dust resistance
• 330 Degree rotation for indicator face
• LCD Digital Display
• Battery Compartment
• 3/8″ Diameter Shank
• 4-48 Thread Carbide Point

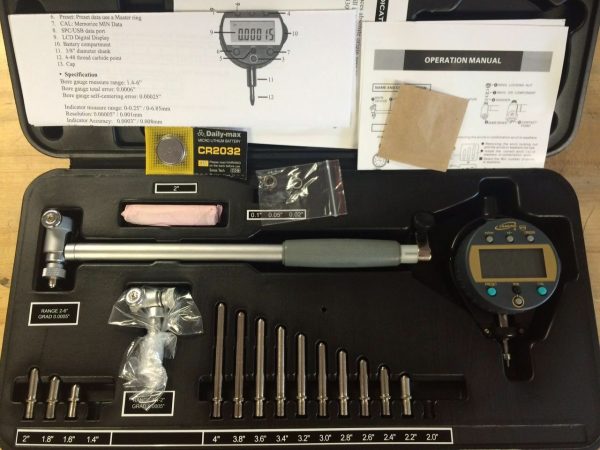

• Instructions are included

iGaging part number: 35-2868-i
