Brand: Dini Argeo

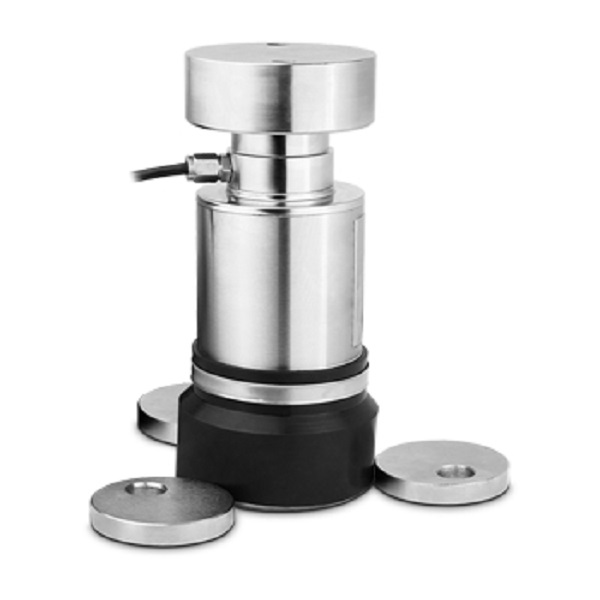

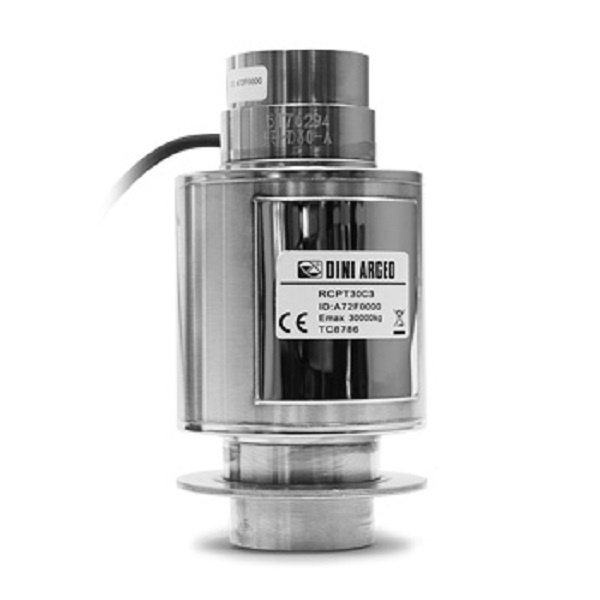

Dini Argeo RCPT Load Cell – Weighbridge, Column, Canister, Compression Type

Categories: Compression Load Cell, Load Cell, Weighbridge Load Cell

1.330,00 AED – 2.060,00 AED (Excl. VAT)

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Capacity

Clear

Column load cell for CE-M approved weighbridges, tanks, silos, etc.
Special alloy steel body with STAINLESS steel external casing; manufactured with laser soldering.
IP68 protection.
C3 precision class.
Optimized parallel connection
Capacity: 20000 TO 50000 kg.
Shielded 18m connection cable.
Fitted with self-aligned articulated joints, self centering plates and protection washer(version with cups).

GET QUOTATION

Brand: Dini Argeo

Dini Argeo RCPT Load Cell – Weighbridge, Column, Canister, Compression Type

Categories: Compression Load Cell, Load Cell, Weighbridge Load Cell

1.330,00 AED – 2.060,00 AED (Excl. VAT)

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Capacity

Clear

Column load cell for CE-M approved weighbridges, tanks, silos, etc.
Special alloy steel body with STAINLESS steel external casing; manufactured with laser soldering.
IP68 protection.
C3 precision class.
Optimized parallel connection
Capacity: 20000 TO 50000 kg.
Shielded 18m connection cable.
Fitted with self-aligned articulated joints, self centering plates and protection washer(version with cups).

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

Tags: Analog Load Cell, Canister Load Cell, Column Load Cell, Compression Load Cell, Dubai Load Cells, Force Load Tester, Force Sensor, Force Tester, Force Transducer, Load Cell, Load Cell Abu Dhabi, Load Cell Dubai, Load Cell Sensor, Load Cell Transducer, Load Cell UAE, Load Cells in Abu Dhabi, Load Cells in UAE, Strain Gauge, Strain Gauge Load Cell, Strain Gauge Transducer, Stress Gauge, Torque Sensing, Truck Scale Load Cell, Weighbridge Load Cell, Weighing Components and Accessories, Weighing Scale Load Cell, Weighing Sensor, Weight Scale Sensor, Weight Sensing Sensor, Weight Sensor, Weight Transducer

GET QUOTATION

[woocommerce_variations_table]

Prices for 8 units and more:

Minimum load cell verification interval: Vmin = EMax / 10.000
Maximum number of load cell divisions: nLC = 3000 (C3)
Sensitivity: 2mV/V +/- 0,1%
Temperature effect on full scale: 0,002% /°C
Temperature effect on zero: 0,002% /°C
Compensated Temperature Range: -10°C/+40°C
Operating Temperature Range: -30°C/+70°C
Creep error after 30 minutes: 0,02% F.S.
Excitation voltage from 5 to 15 VDC
Input Resistance: 700 ± 20 Ohm
Output Resistance: 703 ± 7 Ohm
Zero Balance: +/-1% F.S.
Insulation Resistance: >5000 MOhm
Safe Overload: >150% F.S.
Ultimate Overload: 250% F.S.
4-wire shielded cable, 5mm diameter

Applications:

Weighbridges, tanks, silos, etc.

Additional information

Model	RCPT30C3NC, RCPT20C3, RCPT30C3, RCPT50C3
Capacity	20 Ton, 30 Ton, 50 Ton
