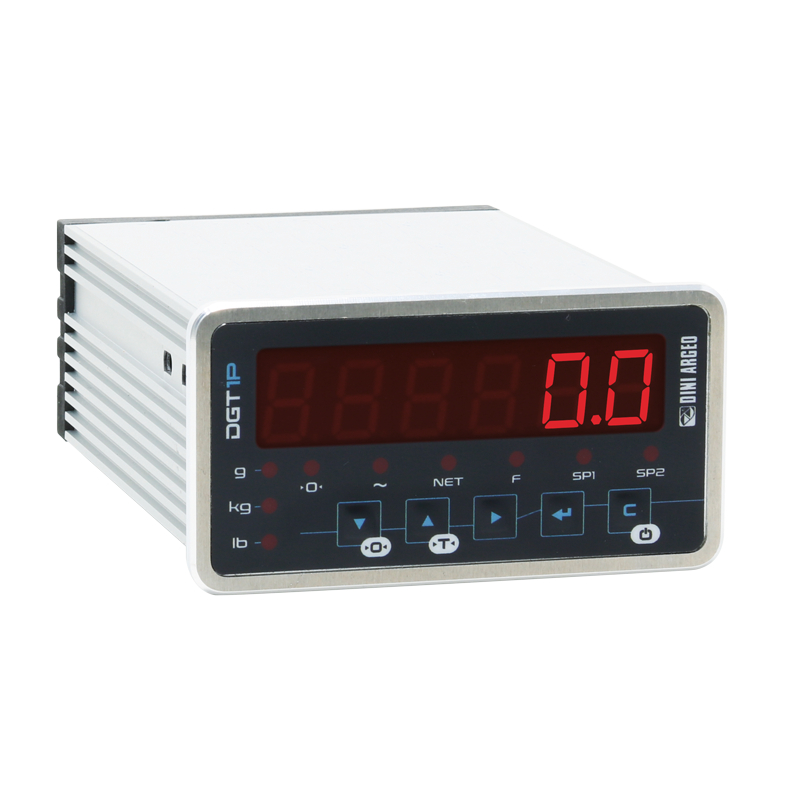

DGT1P – PANEL DIGITAL WEIGHT TRANSMITTER / INDICATOR

1.730,00 AED1.880,00 AED (Excl. VAT)

[posbadges]
1.730,00 AED (Excl. VAT)
Panel weight transmitter with aluminum case. 2 IN and 2 OUT. 5-key keypad, LED display.
1.880,00 AED (Excl. VAT)
Panel weight transmitter with aluminum case. 2 IN, 2 OUT and analogue output. 5-key keypad, LED display.

Panel weight transmitter/indicator with aluminum case. Ideal as microcontroller in industrial weighing and dosing systems, it makes it easier and safer to integrate the weighing into any automation system. Up to 2 programmable digital inputs and 6 outputs.

Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID)

GET QUOTATION

Brand:

DGT1P – PANEL DIGITAL WEIGHT TRANSMITTER / INDICATOR

1.730,00 AED1.880,00 AED (Excl. VAT)

[posbadges]
1.730,00 AED (Excl. VAT)
Panel weight transmitter with aluminum case. 2 IN and 2 OUT. 5-key keypad, LED display.
1.880,00 AED (Excl. VAT)
Panel weight transmitter with aluminum case. 2 IN, 2 OUT and analogue output. 5-key keypad, LED display.

Panel weight transmitter/indicator with aluminum case. Ideal as microcontroller in industrial weighing and dosing systems, it makes it easier and safer to integrate the weighing into any automation system. Up to 2 programmable digital inputs and 6 outputs.

Approvals:
CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID)

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

GET QUOTATION
[woocommerce_variations_table]

TECHNICAL FEATURES

  • Power supply: 12-24 Vdc
  • Converter: A/D 24 bit with 1 channel
  • Max number of scales: 1
  • Load cells connection: 4 or 6 wires (with sense)
  • Conversion rate: 400 Hz
  • Selectable sampling rate: up to 400 conv./sec
  • Displaying: up to 800.000d
  • Signal sensitivity: 0,01 µV/d (0,03 µV/e)
  • Resolution: 3.000.000 points
  • Linearization: up to 8 points
  • Connectable load cells: up to 16×350 Ω cells
  • Serial ports: 1 RS485 port
  • Analog output: 16 bit optoisolated (DGT1PAN Model) choosing between 0-5Vdc, 0-10Vdc, 4-20mA or 0-20mA.
  • Digital outputs: n. 2 OUT (optional up to 6), configurable optoisolated photomosfet
  • Digital inputs: n. 2 IN, configurable optoisolated

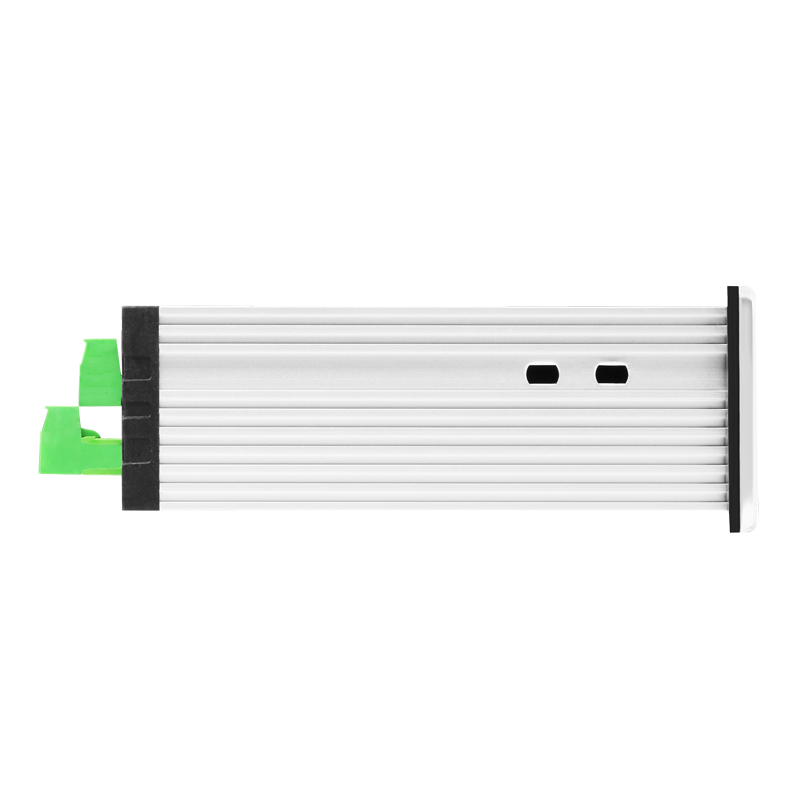

  • Case: aluminium. Dimensions:100 x 53 x 136 mm(lxhxw). Panel cutout: 92 x 44 mm(lxh).
  • Calibration:
    – Theoretical (mVV)
    – With sample weights
  • Keyboard functions: zeroing, tare, function mode, print, manual data sending, On/Stand-by
  • Program functions:
    – Setpoint
    – High resolution
    – Peak
    – Alibi Memory
    – Unit of measure conversion
  • Keyboard: mechanical with 5 digits, waterproof
  • Display: 14,2mm red LED



MAIN CERTIFICATIONS

  • CE-M EN 45501
  • OIML R76
  • OIML R61 – MID
  • OIML R51

Additional information

Model

DGT1P, DGT1PAN
