MAIN FEATURES

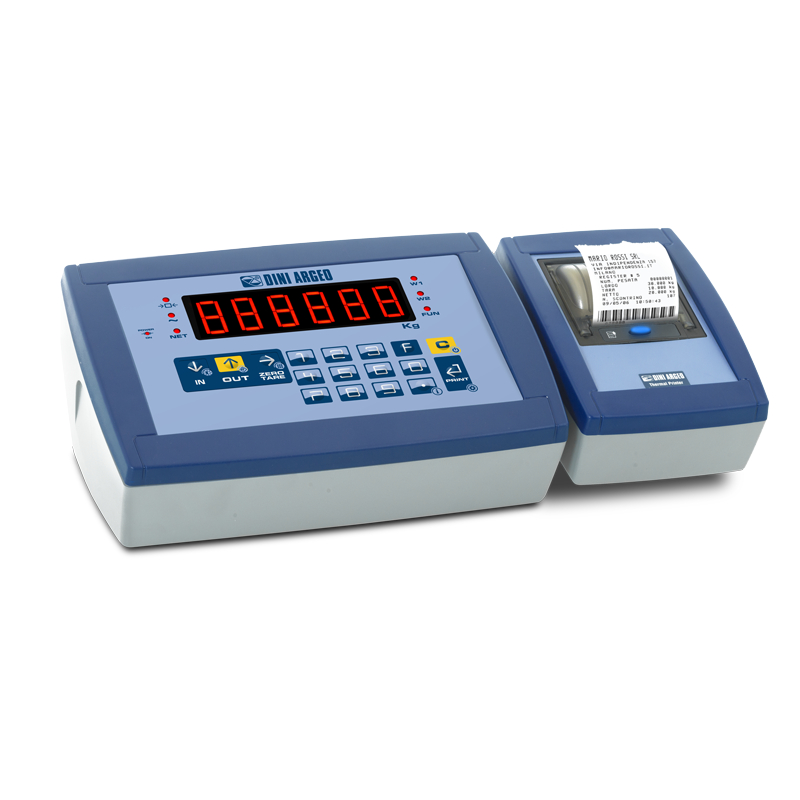

• Waterproof 17-key functional keyboard.
• Very bright red LED display with 6 digits 25 mm high; easily visible from all angles and from long distances, with adjustable brightness intensity.
  Complete of 6 Leds for showing the active functions.
• ABS case, easy to clean and resistant to harsh and corrosive environments.
• Fitted with attached thermal printer: speed > 50mm/sec, 203 dpi resolution, 24/40 columns, 58 mm paper width, 50 mm roll diameter.
• Dimensions: 408x186x125mm.
• Suitable for use on the table, column, or wall.
• A/D 24 bit, 4 channel converter, up to 200 conv./sec. autoselect, and up to 8 signal linearisation points.
• Up to 10.000e or multi-range 3 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
• Up to 1.000.000 divisions displayable with built-in resolution up to 3.000.000 points.
• Real time clock.
• Calibration and digital Set-Up from the keyboard or from PC with DINITOOLS.
• Built-in rechargeable battery and internal 110-240 Vac adapter.
• Connection with up to 16 load cells having an input resistance of 700 Ohm.

I/O SECTION

• Bidirectional serial port configurable as RS232/C for connection to the attached thermal printer.
• Bidirectional serial port configurable as RS232/C on RJ connector (or RS485 optional) for connection to the PC/PLC.
• Ethernet or WiFi interfaces (optional).

AVAILABLE FUNCTIONS FROM REMOTE CONTROL

• Infrared 19-key remote control: zero, tare / manual tare, enable / disable function, print, switch-off.
• Radiofrequency 6-key remote control: zero, tare, enable / disable function, print, switch-off.

MAIN CERTIFICATIONS

• EU Type Examination Certificate (45501:2015)
• OIML R76

FUNCTIONS

• Zeroing.
• Semi automatic tare or with manual introduction, locked or unlocked.
• Database of up to 30 quickly recallable tares.
• Weigh storage in input through ID CODE (up to 99 suspended weighs)
• Calculation of the loaded/unloaded net weight through difference between input and output.
• Single input/output weigh, with entry of the tare value or tare selection from database.
• Printing of the input and output total weight, and the total difference.
• Printing of the list of open weighs, ID, and date and time.
• Printing of the single customisable weigh ticket, with company name, weigh progressives, date and time, etc.
