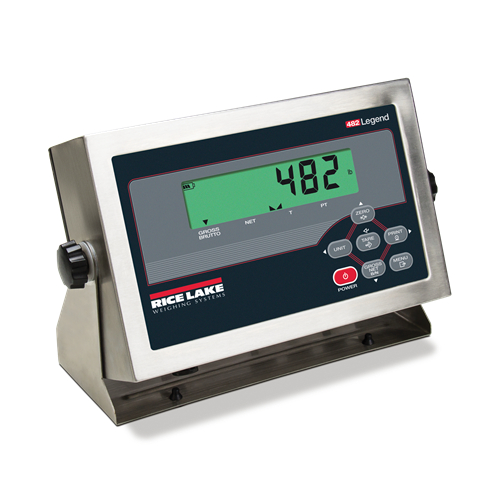

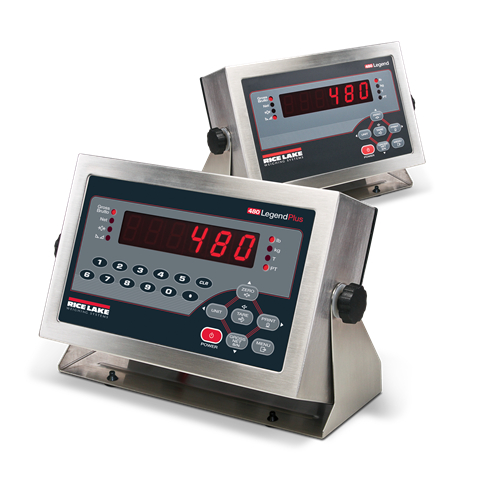

With NEMA Type 4X, stainless steel enclosure and advanced gasket system, the industrial-strength Legend Series is built for dirty, wet environments and demanding workplaces, inside or out. Choose between large, ultra-bright LED or LCD 0.8-inch displays with 6-digits and sharp contrast for superior display visibility.

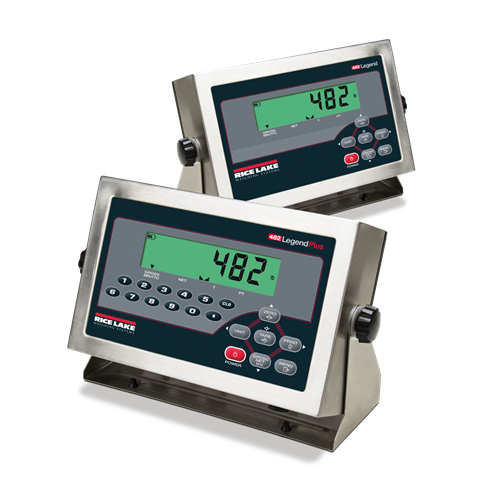

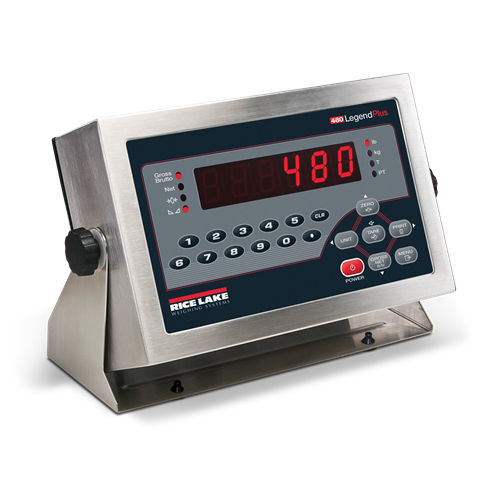

Advanced circuitry withstands electrical noise, power disturbances and transient spikes that are common to industrial applications. The Legend Series’ six-button tactile keypad allows for quick navigation and programming. The Legend Plus Series offers a full numeric keypad.
The Legend Series offers a valuable solution for a variety of applications, from basic weighing to batching. Built-in gross/net modes provide quick flexibility for everyday needs. Also utilize the 480’s custom ticket printing to modify
480/482 Legend™ Series Specifications
| Power: Line voltages: 100-240 VAC Frequency: 50-60 Hz DC voltages: n/a Power consumption: 8 WExcitation Voltage: 5 VDC, 8 x 350Ω or 16 x 700Ω load cellsAnalog Signal Input Range: ±7mV/VAnalog Signal Sensitivity: 0.1 μV/graduation minimum, 0. 5 μV/graduation recommendedA/D Sample Rate: 5, 10, 20, 40 Hz, software selectable Resolution: System Linearity: Digital I/O: |
Communication Ports: Com 1: RS-232 full duplex Com 2: RS-232 full duplex or 20 mA simplex, continuous Both ports 1200, 2400, 4800, 9600, 19200, 38400 baud seven or eight data bits, even, odd or no parity(Optional) Analog Output: 16-bit resolution, voltage output 0-10 VDC, current output 0-20 mA / 4-20 mA(Optional) Relay Board: Two opto-isolated, 5 to 24 VDC, active high inputs. Two inputs (requires relay output option). Primary keys, pseudo functions, batching functions. (4) 30 VDC, 2 amp dry-contract relays(Optional) Ethernet and USB Board: USB five-pin header for PC, printer or flash drive. Ethernet TCP/IP, RJ45 jack, server and client ports.Display: 480/480 Plus:LED display 0.8 in (20 mm, six-digit, seven-segment 482/482 Plus: LCD backlit display, Transmissive/Transflective 0.8 in (20 mm, six-digit, seven-segment |
Status Annunciators: Gross, net, center of zero, standstill, lb, kg, tare, preset tareKeys/Buttons: Flat membrane panel, embossed keys, tactile feelTemperature Range: Certified: 14°F to 104°F (-10°C to 40°C) Operating: 14°F to 122°F (-10°C to 50°C)Weight: 6.4 lb (2.9 kg)Rating/Material: Enclosure: NEMA Type 4X/IP66, heavy-gauge stainless steelWarranty: Two-year limited warranty EMC Immunity: Approvals: |
480/482 Legend™ Series Options
- Analog output, 0-10 VDC, 0-20 mA, 4-20 mA, selection for 20% offset
- Relay output, two digital inputs, four dry contact relays (supports two boards)
- Ethernet TCP/IP and USB interface (requires cable)
- Battery, rechargeable lithium ion
- Power for 18 hours of battery life on one 350 ohm load cell
- Power-saving modes for sleep and wake-up threshold
480/482 Legend™ Series Dimensions
| Dimensions | |||||
|---|---|---|---|---|---|
| A | 9.50 in (241 mm) | D | 3.65 in (92 mm) | G | 6.00 in (152 mm) |
| B | 10.00 in (254 mm) | E | 2.75 in (70 mm) | H | 3.75 in (95 mm) |
| C | 11.00 in (279 mm) | F | 7.00 in (178 mm) | ||
