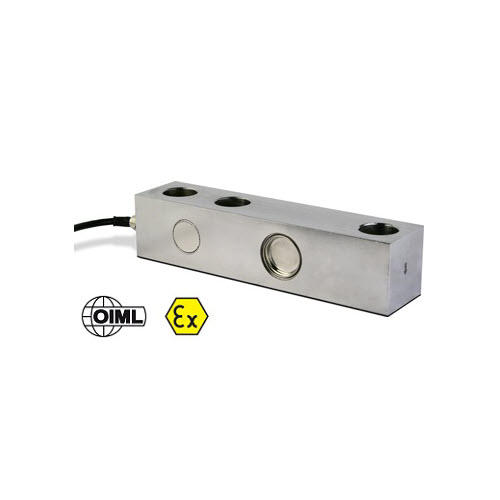

MAIN FEATURES

• C3 PRECISION CLASS
• STAINLESS STEEL CONSTRUCTION WITH LASER WELDING
• IP68 PROTECTION, IP69K UPON REQUEST
• CAPACITIES 10000 kg
• SHIELDED CONNECTION CABLE
• TEST CERTIFICATE PROVIDED AS STANDARD

TECHNICAL FEATURES

• Minimum load cell verification interval Vmin = EMax / 10.000
• Maximum number of verification intervals nLC = 3000
• Combined error 0,017% of Full Scale Output (F.S.)
• Full Scale Output 2mV/V +/- 0.5%
• Temperature effect on zero 0,002% / °C
• Temperature effect on full scale output 0,002% / °C
• Compensated Temperature Range -10°C/+50°C
• Operating Temperature Range -20°C/+60°C
• Creep error after 30 minutes 0,02% F.S.
• Maximum tolerated excitation voltage 15 VDC
• Input Resistance 1100 ± 20 Ohm.
• Output Resistance 1000 ± 20 Ohm.
• Insulation Resistance >5000 MOhm
• Safe Overload 120% F.S.
• Ultimate Overload 300% F.S.
• 6-wire shielded cable, 5m long, 5 mm diameter

ATEX VERSION

• The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
  ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
  ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
  The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
• IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

DIMENSIONS – DECODING STANDARD CABLE

• NOTE: dimensions in mm


Decoding of the standard cable colours
