TECHNICAL FEATURES

• Backlit LCD 25 mm LCD display with 6 high contrast digits with icons for indicating the active functions.
• 5 Key waterproof mechanical keyboard.
• IP65 protection.
• Compact and sturdy case, easy to clean and resistant in harsh and corrosive environments.
• Dimensions (lxhxw): 173x98x54mm
• Max. functioning distance, in appropriate environmental and installation conditions: 45m indoors, 140m outdoors. 39 configurable channels.
• Power supply provided by rechargeable long life battery (about 80h); battery charger included.
• DFWPM has to be coupled with scales or crane scales fitted with optional radio module.

Additional features for the DFWPMxxUSB model:

• Memory for weight storage.
  TAKE NOTE: for legal for trade applications, the connected scale/crane scale has to be fitted with the optional alibi memory board.
• Mini USB standard port for download of the weights by a PC, through WeighConsole PC software (Mini USB to USB cable adapter not included).

SERIAL PORTS

• 2.4 GHz integrated radio modem, with 39 different frequency channels, easily programmable from PC, for communication with indicator, scale and crane scale.
• USB port (standard fitted with the DFWPM2G4-USB), for quick connection to the PC.
• Infrared receiver for functioning with remote control.

FUNCTIONS

• Remote visualisation of the weight, messages and metrological/functional icons.
• Remote management of displayed scale functions: ZERO, TARE, PRINT, ENABLING/DISABLING of the FUNCTIONING MODE and SWITCH-OFF.

Additional functionalities for the DFWPM2G4-USB model:

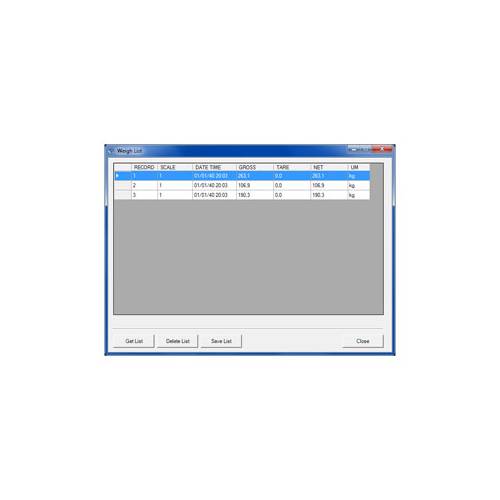

• Recording of 500 weights for internal use, executed on one or more scales/crane scales (weight of each scale and sum).
• Connection to the PC through USB port for reading the list of weighs, by using the “Weigh Console” software or by a specific serial communication protocol.
• Recording of 250 weights for legal for trade use, executed on one scale/crane scale fitted with optional alibi memory.
