Brand: Uni-T
Categories: Electrical Meters, Measuring Instruments
Call for price

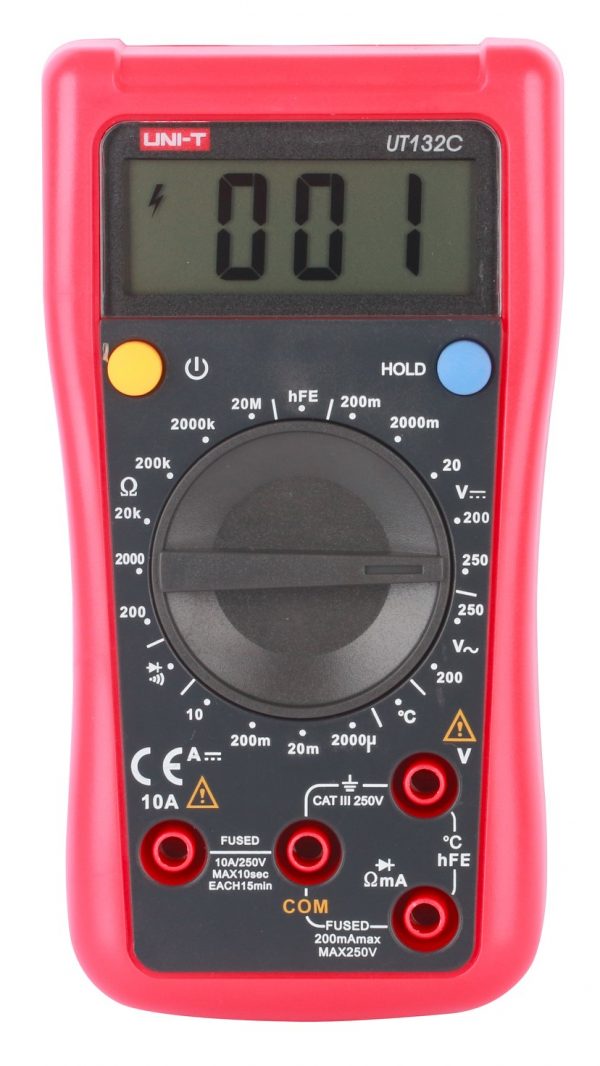

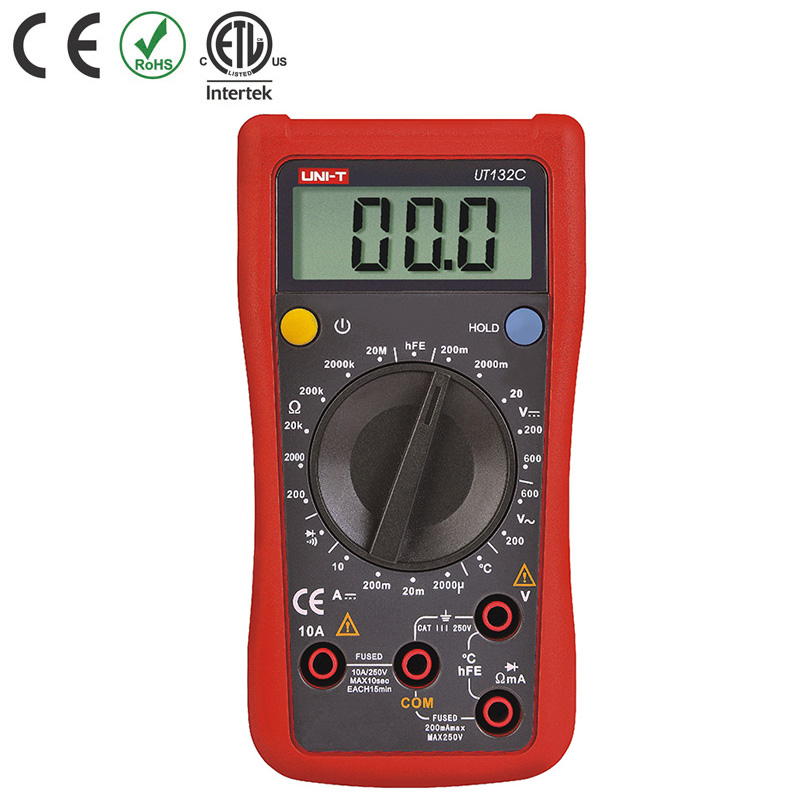

UNI-T’s UT132C is a palm size 2000-count digital multimeter, which measures AC/DC voltage with ±(0.5%+2) accuracy, DC current and more.
Brand: Uni-T
Categories: Electrical Meters, Measuring Instruments
Call for price
UNI-T’s UT132C is a palm size 2000-count digital multimeter, which measures AC/DC voltage with ±(0.5%+2) accuracy, DC current and more.
UNI-T’s UT132C is a palm size 2000-count digital multimeter, which measures AC/DC voltage with ±(0.5%+2) accuracy, DC current and more.
| Specifications | Range | Best Accuracy |
| Model | UT132C | |
| DC Voltage (V) | EU: 200mV/ 2000mV/ 20V/ 200V/ 600V | ±(0.5%+2) |
| ROW: 200mV/ 2000mV/ 20V/ 200V/ 250V | ±(0.5%+2) | |
| AC Voltage (V) | EU: 200V/600V | ±(1.2%+3) |
| ROW: 200V/250V | ±(1.2%+3) | |
| DC Current (A) | 2000μA/ 20mA/ 200mA/10A | ±(1%+2) |
| Resistance (Ω) | 200Ω/ 2000Ω/ 20kΩ/ 200kΩ/ 2000kΩ/ 20MΩ | ±(1.2%+3) |
| Temperature (°C) | -40 °C ～ 1000°C | ±(1.0%+3) |
| Features | ||
| Display Count | 2000 | |
| Manual Range | √ | |
| Diode | √ | |
| Transistor | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristic | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 49mm x 18mm | |
| Product Color | Red and grey | |
| Product Net Weight | 200g | |
| Product Size | 72mm × 137mm × 35mm | |
| Standard Accessories | Battery, test lead, multi-purpose socket, point contact temperature probe | |
| Standard Individual Packing | Gift box, English manual | |
| Standard Quantity Per Carton | 66pcs | |
| Standard Carton Measurement | 595mm × 360mm × 420mm (0.09CBM per standard carton) | |
| Standard Carton Gross Weight | 25.7kg | |
