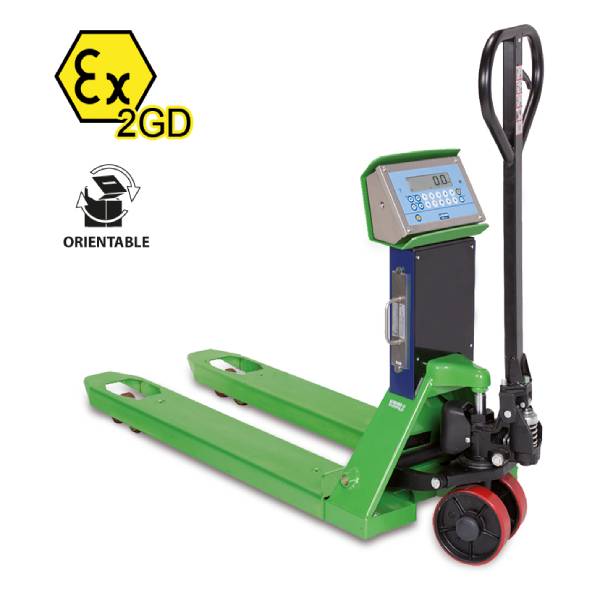

TPW EX 2GD ATEX PALLET TRUCK SCALE ZONES 1/21 & 2/22

Call for price

[posbadges]

ATEX pallet truck scale for use in hazardous areas (ZONES 1 & 21 & 2 & 22) with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X protection.

Also available in a version approved for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample weights.

GET QUOTATION

Brand:

TPW EX 2GD ATEX PALLET TRUCK SCALE ZONES 1/21 & 2/22

Call for price

[posbadges]

ATEX pallet truck scale for use in hazardous areas (ZONES 1 & 21 & 2 & 22) with Ex II 2G IIB T4 Gb X and Ex II 2D IIIC T197°C Db X protection.

Also available in a version approved for legal-for-trade use. Manufactured, calibrated and adjusted in Italy by Dini Argeo, using certified sample weights.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

GET QUOTATION
[woocommerce_variations_table]

WEIGHING FEATURES

  • Maximum lifting capacity: 2,000 kg.
  • Resolution:
    > internal use: 0,2 kg
    > approved: 0,5 / 1 kg
  • Accuracy (weighing of goods on Europallet with distributed load):
    > internal use: +/- 0,5 kg
    > approved: according to CE certification (Directive 2014/31/EU)
  • Calibration and Set-Up parameters configurable from keyboard.



WHY CHOOSE TPW EX 2GD DINI ARGEO

  • Pallet truck scale made with ATEX certified components, suitable for use in hazardous areas (zones 1 and 21 & 2 and 22).
  • Thanks to the resolution up to 100 g, it can weigh with the highest accuracy.
  • Available in approved version for legal-for-trade use.
  • Removable battery, rechargeable in safe area, connectable and disconnectable to the weighing system even in hazardous area.
  • Autonomy of about 150 hours, or 24/7 with optional second rechargeable battery.
  • Built with 4 Dini Argeo load cells, Atex certified, in IP68 stainless steel.
  • Weight indicator with waterproof casing in IP68 stainless steel, easy to clean and resistant in harsh and corrosive environments.
  • The large 25 mm LCD display makes it easier to read even in low light conditions.
  • Each pallet truck is tested and supplied with calibration certificate to guarantee the declared accuracy.



TECHNICAL FEATURES

  • Forks with low profile, only 85 mm.
  • Forks dimensions 1150 x 550 x 85 mm.
  • Lifting height: 200 mm.
  • Weight approx. 125 kg.
  • Bearing structure in extra-thick steel, oven-fire painted.
  • Optional stainless steel forks.
  • Standard swivelling head +/-160°.
  • Steering wheels and double loading wheels with polyurethane coating.
  • Membrane waterproof keyboard, with 17 numeric/functional keys.
  • Dini Argeo electronics, ATEX certified, intrinsically safe.
  • 230Vac 50Hz battery charger with EU, US and UK plugs as standard (charging time 8 hours) for charging in a safe area. Optional AU plug.
  • Temperature range: -10° / +40° C



THE EASIEST ONE TO RECALIBRATE AND REPAIR

  • The only one without junction box: the adjustment of each individual cell is done comfortably from the keyboard.
  • Spare and wear parts always available and ready for delivery.
  • Service centres throughout Europe and the world.



MAIN FUNCTIONS

  • Zeroing, Tare
  • High Resolution Weighing x 10
  • Net/Gross or lb/kg conversion
  • Weighs accumulation
  • Formulation
    Discover the other functions, download the manual.



OTHER VERSIONS AVAILABLE

  • Forks width 680 mm
  • Long forks from 850 to 1500 mm upon request
  • High resolution 0.1 kg
  • Approved load capacity 600 / 1,500 kg, resolution 0.2 / 0.5 kg
  • Approved load capacity 1,500 kg approved, resolution 0.5 kg
  • Approved load capacity 1,500 / 2,500 kg approved, resolution 0.5 / 1 kg
  • Approved load capacity 2,500 kg
  • Other capacities / special resolutions: upon request
  • Other special versions: upon request



WARNING
EXFor direct weighing of light metals such as aluminum, magnesium, titanium and their alloys, the use of optional STAINLESS STEEL fork covers is necessary.

Additional information

Weight N/A
Model

TPWX2GD20-2, TPWX2GD20M-1
