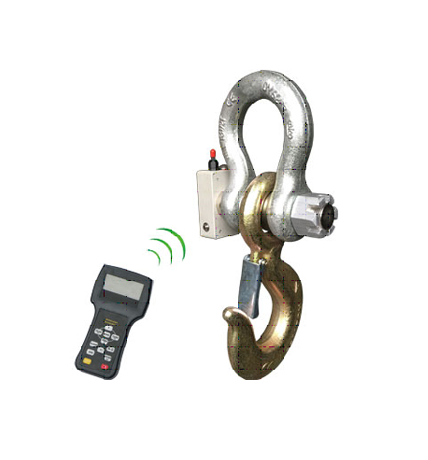

Sigma LQW-2D – Wireless Load Shackle Dynamometer

Call for price

[posbadges]
  • Brand : Sigma (Taiwan)
  • Body Structure: High tensile carbon steel construction
  • Protection class: IP67 class water proof
  • Units: Kg/ Ton/ Lb./ N/ kN
  • With 280D Handheld Indicator
  • Set-Point: Two user programmable Set-Point can be used for safety and warning applications
  • Power
    • Load Shackle Battery Standard 18650 Lithium battery, 3.7V/3100mAh
    • Indicator Battery Standard 18650 Lithium battery, 3.7V/3100mAh
  • Wireless Distance: 200m without obstacle
  • 1 year: warranty
GET QUOTATION

Brand:

Sigma LQW-2D – Wireless Load Shackle Dynamometer

Call for price

[posbadges]
  • Brand : Sigma (Taiwan)
  • Body Structure: High tensile carbon steel construction
  • Protection class: IP67 class water proof
  • Units: Kg/ Ton/ Lb./ N/ kN
  • With 280D Handheld Indicator
  • Set-Point: Two user programmable Set-Point can be used for safety and warning applications
  • Power
    • Load Shackle Battery Standard 18650 Lithium battery, 3.7V/3100mAh
    • Indicator Battery Standard 18650 Lithium battery, 3.7V/3100mAh
  • Wireless Distance: 200m without obstacle
  • 1 year: warranty
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

LQW-2D wireless load shackle is an extremely well-built instrument for industry use, as a standard wireless tool offers universal applications, whether used as a conventional crane weigher or to measure force, LQW-2D wireless load shackle is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator 280D.

Specifications:

  • Material: High tensile carbon steel construction
  • Protection class: IP67 class water proof
  • Accuracy: 0.1%
  • Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN)
  • Gravity regulation: The acceleration of gravity can be regulated through indicator parameter setting according to different places value.
  • Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).
  • Set-Point: Two user programmable Set-Point can be used for safety and warning applications



Features

280D Indicator Display 25mm (1’’) 5digits LCD with backlight
Power on zero range 20% F.S.
Manual Zero Range 4% F.S.
Tare Range 100% F.S.
Stable Time ≤5 seconds
Overload Indication 100% F.S. + 9e
Max. Safety Load 125% F.S.
Ultimate Load 400% F.S.
Sealing Standard IP-67 protected from dust and high pressure jets of water
Load Shackle Battery Standard 18650 Lithium battery, 3.7V/3100mAh
Indicator Battery Standard 18650 Lithium battery, 3.7V/3100mAh
Operating Temp. – 20℃ ~ + 50℃
Operating Humidity ≤85% RH under 20℃
Wireless Distance 200M without obstacle

Specification

MODEL Cap.(kg) A(mm) B(mm) C(mm) D(mm) E(mm) H(mm) (kg)
LQW-2D-5 5000 80 200 45 160 29 290 8
LQW-2D-10 10000 99 216 51 205 35 361 13
LQW-2D-20 20000 129 270 86 280 44 307 31
LQW-2D-30 30000 143 295 100 327 50 540 46

Additional information

Model

LQW-2D-5, LQW-2D-10, LQW-2D-20, LQW-2D-30

Capacity

5 ton, 10 ton, 20 ton, 30 ton
