Brand:

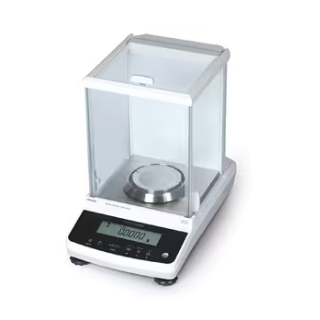

SHIMADZU AT-R Series – Analytical Balances

Call for price

[posbadges]

Basic Model with Improved Convenience

  • Freely set responsiveness or stability
  • Connect with a computer via USB or RS232C
  • Perform stable measurements in combination with an ionizer
  • Weighing Capacity: 62g~320g
  • Minimum Display (Division): 0.1mg
  • Pan Size Approx.: 91 mm dia.
  • Dimensions Approx.: W213 × D356 × H338 mm
  • Weight Approx.: 6.2 kg or approx. 6.0 kg
  • Required Power Supply: AC adapter (input 100-240 V AC, 50/60 Hz, output 12 V, 1 A)
  • I/O Terminals: RS232C (D-sub 9P plug), USB device (Type B)
  • Calibration Weight: Built-in (Internal Calibration) or External weight
GET QUOTATION

Brand:

SHIMADZU AT-R Series – Analytical Balances

Call for price

[posbadges]

Basic Model with Improved Convenience

  • Freely set responsiveness or stability
  • Connect with a computer via USB or RS232C
  • Perform stable measurements in combination with an ionizer
  • Weighing Capacity: 62g~320g
  • Minimum Display (Division): 0.1mg
  • Pan Size Approx.: 91 mm dia.
  • Dimensions Approx.: W213 × D356 × H338 mm
  • Weight Approx.: 6.2 kg or approx. 6.0 kg
  • Required Power Supply: AC adapter (input 100-240 V AC, 50/60 Hz, output 12 V, 1 A)
  • I/O Terminals: RS232C (D-sub 9P plug), USB device (Type B)
  • Calibration Weight: Built-in (Internal Calibration) or External weight
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

Features of the AT-R Series

  • Easy Settings Enable Responsiveness and Stability to be Freely Changed:
    • Responsiveness becomes very important when weighing fixed amounts of powders and liquids. On the other hand, stability is required when weighing substances in environments subject to drafts or vibrations.
    • The AT-R balances are equipped with a 5-stage indicator.
    • It is easy to switch between a response focus (R) and a stability focus (S) during measurements.
    • Response-focused (R) for weighing process
    • Stability-focused (S) when vibrations become a concern

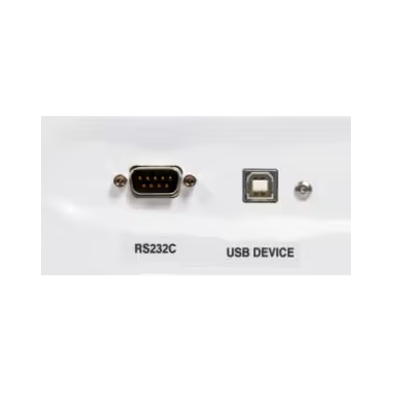

  • Equipped with Two Interfaces: USB and RS232C
    • The balances are equipped as standard with two convenient interfaces for connection with a computer or PLC (programmable logic controller).
    • Human error can be prevented by the direct transfer of weight values to the computer.
    • The balances have been shown to operate with the following PLCs from major companies.
      • Mitsubishi Electric Q Series
      • Keyence KV-8000
      • OMRON CJ2 Series
      • IDEC FC6A Series
  • Addition of an Ionizer Increases Measurement Reliability
    • The optional STABLO™-AP ionizer (static remover) quickly removes static from samples and containers, without creating a draft. This prevents reproducibility errors and fluctuations in measurement values due to static electricity. The static elimination can be enhanced by placing flasks in the AP Holder (sold separately).



AT-R Series Specifications:

Model ATX324R ATX224R ATX124R ATX84R ATY324R ATY224R ATY124R ATY64R
Weighing Capacity 320g 220g 120g 82g 320g 220g 120g 62g
Minimum Display 0.1mg
Pan Size Approx. 91 mm dia.
Dimensions Approx. W213 × D356 × H338 mm
Weight Approx. 6.2 kg Approx. 6.0 kg
Required Power Supply AC adapter (input 100-240 V AC, 50/60 Hz, output 12 V, 1 A)
I/O Terminals RS232C (D-sub 9P plug), USB device (Type B)
Calibration Weight Built-in External weight



Optional Accessories

  • EP-100 Printer
  • EP-110 Printer
  • USB Cable Set
  • SMK-501 Specific Gravity Measurement Kit
  • AP Holder
  • Protective Cover (5 pc set)
  • AC Adapter (provided as standard with the main unit)

Additional information

Model

ATX324R, ATX224R, ATX124R, ATX84R, ATY324R, ATY224R, ATY124R, ATY64R

Capacity

62g, 82g, 120g, 220g, 320g

Minimum Display (Division)

0.1mg

Calibration Weight

Built-in (Internal Calibration), External weight (External Calibration)
