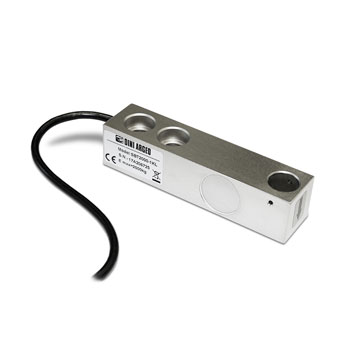

“SBT-1KL” Series Shear Beam Nickel-Plated Load Cells, From 500kg To 2500kg

Categories:

Call for price

[posbadges]

Dini Argeo nickel-plated approved load cells, with low-power 1000 Ohm output resistance for mobile battery applications.
The measures are compatible with the main shear beam load cells present on the market. They are suitable for creating CE-M approved scales with 4 load cells or for weighing conveyors, tanks and hoppers, thanks to their accessories.

CAPACITIES (kg): 500, 1000, 2000, 2500.
OIML R60 approved, NTEP, ATEX 3GD.
Nickel-plated steel. IP67 protection.
Output Resistance 1000 Ohm.

GET QUOTATION

Brand:

“SBT-1KL” Series Shear Beam Nickel-Plated Load Cells, From 500kg To 2500kg

Categories:

Call for price

[posbadges]

Dini Argeo nickel-plated approved load cells, with low-power 1000 Ohm output resistance for mobile battery applications.
The measures are compatible with the main shear beam load cells present on the market. They are suitable for creating CE-M approved scales with 4 load cells or for weighing conveyors, tanks and hoppers, thanks to their accessories.

CAPACITIES (kg): 500, 1000, 2000, 2500.
OIML R60 approved, NTEP, ATEX 3GD.
Nickel-plated steel. IP67 protection.
Output Resistance 1000 Ohm.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

MAIN FEATURES

  • C3 PRECISION CLASS
  • NICKEL-PLATED CONSTRUCTION
  • POTTED SEAL, IP67 PROTECTION
  • MAX. CAPACITIES FROM 500 TO 2500 kg
  • SHIELDED CONNECTION CABLE
  • TEST CERTIFICATE AVAILABLE UPON REQUEST



TECHNICAL FEATURES

  • Minimum load cell verification interval Vmin = EMax / 10.000
  • Maximum number of verification intervals nLC = 3000
  • Combined error 0,017% of Full Scale Output (F.S.)
  • Nonlinearity ± 0.02% FS
  • Hysteresis ± 0.02% FS
  • Repeatability ± 0.01% FS
  • Full Scale Output 2mV/V ± 0.5%
  • Zero balance ± 1% FS
  • Compensated Temperature Range -10°C/+50°C.
  • Operating Temperature Range -20°C/+60°C.
  • Creep error after 30 minutes <0,02% F.S. Maximum tolerated excitation voltage 15 Vdc Input Resistance 1085 ± 10 Ohm Output
  • Resistance 1000 ± 5 Ohm Insulation Resistance >5000 MOhm
  • Safe Overload 120% F.S.
  • Ultimate Overload 300% F.S.
  • 6-wire shielded cable, 3,5m long, 5 mm diameter



DIMENSIONS – DECODING STANDARD CABLE

  • NOTE: dimensions in mm

Decoding of the standard cable colours

Additional information

Model

SBT500-1KL, SBT1000-1KL, SBT2000-1KL, SBT2500-1KL

Max (kg)

500, 1000, 2000, 2500
