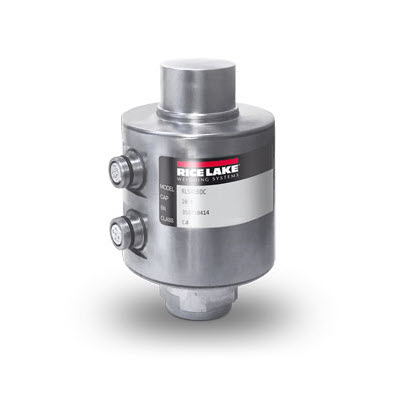

Rice Lake Digital Canister Load Cells, In Stainless Steel, “RL5416DC” Series With Connectors

Call for price

[posbadges]

Digital canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP68 protection degree, 4000 divisions.
Specifically developed for working without junction box.
CAPACITIES: 30 t, 40 t
OIML R60. C4 precision class.
Stainless steel body. IP68 Protection Degree.

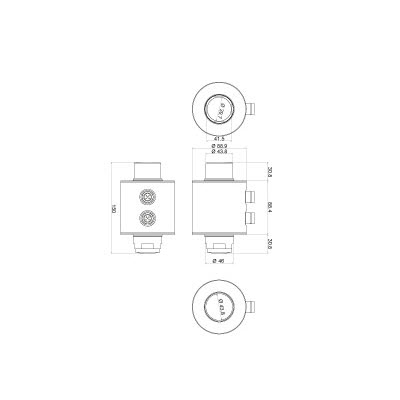

h= 150 mm.

GET QUOTATION

Brand:

Rice Lake Digital Canister Load Cells, In Stainless Steel, “RL5416DC” Series With Connectors

Call for price

[posbadges]

Digital canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP68 protection degree, 4000 divisions.
Specifically developed for working without junction box.
CAPACITIES: 30 t, 40 t
OIML R60. C4 precision class.
Stainless steel body. IP68 Protection Degree.
h= 150 mm.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

TECNICAL FEATURES

METROLOGICAL FEATURES

  • Rated capacity: (FS): 30 t, 40 t
  • Combined error: 0,022 %F.S
  • Creep error (after 30 min.): 0,14 %FS
  • Temperature effect on zero: 0,02 %F.S./10°C
  • Temperature effect on sensitivity: 0,01 %F.S./10°C
  • Non-linearity error: 0,015%F.S.
  • Non-repeatability error: 0,006%F.S.



OIML R60

  • Vmin= Emax/18000
  • Accuracy class: C4
  • Max. number of intervals: 4000e (EC Test Certificate, according to OIML R60 (2000))



ELECTRONICMECHANICAL FEATURES

  • Gas dischargers to protect against atmospheric discharges
  • Double connector for load cells interconnection and weight indicator connection, without junction box.
  • Halfduplex RS485 communication technology
  • Rice Lake communication protocol
  • Power Supply: 8…15 V (AC or DC)
  • Rated digital output: 40000 d
  • Current consumption: 35 mA
  • Internal resolution: 24 bit
  • Converter rate: max. 40 conv./sec.
  • RS485 communication speed: Max 100kHz.
  • Operating temperature: -35 ~ +70 °C
  • Compensated temperature: -10 ~ +40 °C
  • Storage temperature limits:: -40 ~ 80 °C
  • Safe load limit: 150% F.S.
  • Ultimate overload: 300% F.S.
  • IP68 protection degree
  • Stainless steel body
  • 4-core RS485 cable as optional with stainless steel shield, diameter 7mm
  • Self-centring spherical bases
  • Equipped with anti-rotation system, to be combined with 173793 cups for proper operation

Additional information

Model

RL5416DC-30T, RL5416DC-40T

Max (kg)

30 000, 40 000
