Rice Lake Canister Load Cell, In Stainless Steel, “RL5416” Series

Call for price

[posbadges]

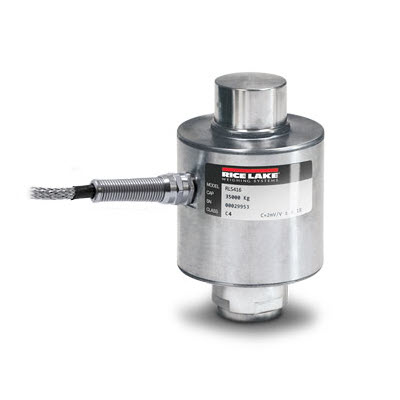

Canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP69K protection degree, 4000 divisions.
CAPACITIES: 20t, 30t, 40t, 50t.
OIML R60. C4 precision class.
Stainless steel body. IP69K Protection Degree.
20 m armoured rat-proof cable with stainless steel armouring as standard
h= 150mm.

GET QUOTATION

Brand:

Rice Lake Canister Load Cell, In Stainless Steel, “RL5416” Series

Call for price

[posbadges]

Canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP69K protection degree, 4000 divisions.
CAPACITIES: 20t, 30t, 40t, 50t.
OIML R60. C4 precision class.
Stainless steel body. IP69K Protection Degree.
20 m armoured rat-proof cable with stainless steel armouring as standard
h= 150mm.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

TECNICAL FEATURES

METROLOGICAL FEATURES

  • Rated capacity: (F.S.): 20 t, 30 t, 40 t, 50 t
  • Combined error: 0,022 %F.S.
  • Creep error (after 30 min.): 0,014 %F.S.
  • Temperature effect on zero: 0,02 %F.S./10°C
  • Temperature effect on sensitivity: 0,01 %F.S./10°C
  • Non-linearity error: 0.015%F.S.
  • Non-repeatability error: 0.006%F.S.



OIML R60

  • Vmin= Emax/14000
  • Accuracy class: C4
  • Max. number of intervals: 4000e OIML



ELECTRONICMECHANICAL FEATURES

  • Gas dischargers to protect against atmospheric discharges
  • Power Supply: 5÷15 V (AC or CC)
  • Rated output at F.S.: 2 ± 0.05% mV/V
  • Input resistance: 800 ± 3Ω
  • Output resistance: 700 ± 3Ω
  • Insulation resistance: 5000MΩ
  • Operating temperature: -35 ~ +70 °C
  • Compensated temperature for homologation: -10 ~ +40 °C
  • Storage temperature limits: -40° ~ +80°
  • Normal service: 120% F.S.
  • Maximum load / Safe load: 150% F.S.
  • Ultimate overload: 300% F.S.
  • IP69K protection degree
  • Stainless steel body
  • 6-core cable with stainless steel shield, length 20 m, diameter 6mm
  • Nickel plated steel cable gland with protective spring
  • Self-centring spherical bases
  • Equipped with anti-rotation system, to be combined with 173793 cups for proper operation



INSTALLATION KIT

  • The 173793 kit allows a correct installation of the RL5416 load cells below the weighbridge plate.
  • The kit consists of an upper cup and a lower cup with anti-rotation system. All components are made from stainless steel. Both cups are designed for optimal operation in conjunction with the cell’s self-centring spherical bases, allowing their proper oscillation and return to position.

Additional information

Model

RL5416-20T, RL5416-30T, RL5416-40T, RL5416-50T

Max (kg)

20 000, 30 000, 40 000, 50 000
