Brand: Rice Lake
Categories: Dynamometer, Wireless Load Cell
Call for price
Call for price

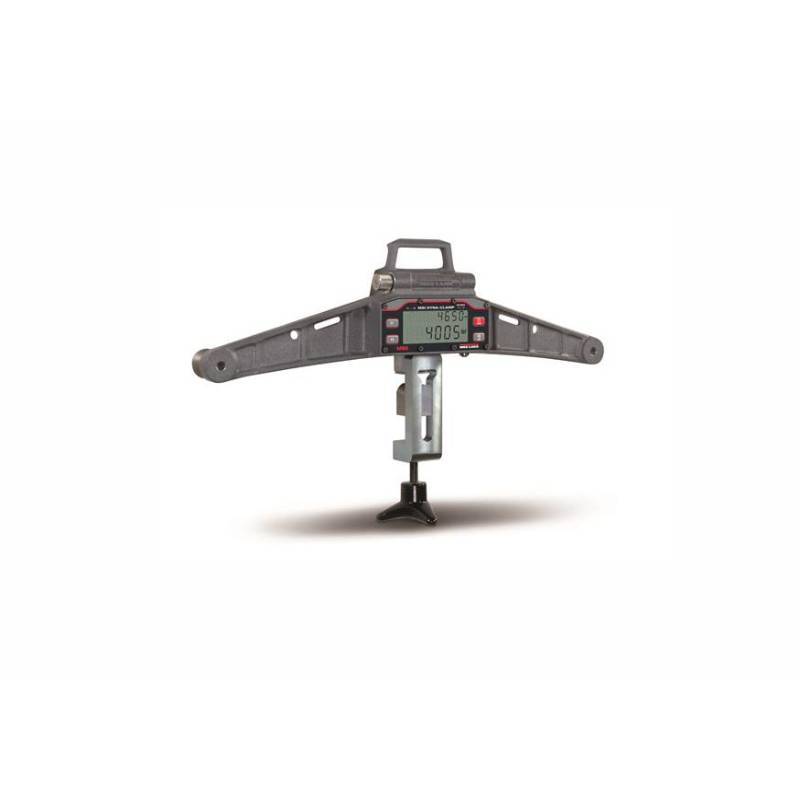

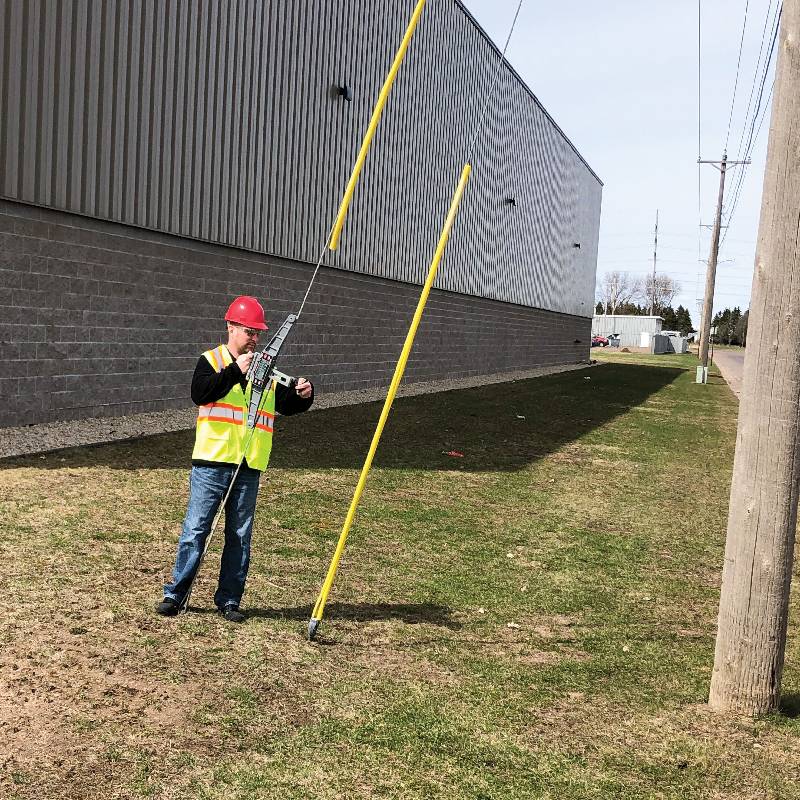

The MSI Dyna-Clamp tension meter has a wire rope engagement site window to help ensure accurate tension readings. The MSI Dyna-Clamp features an easy-turn power screw, to make measuring wire rope tension simple and effortless, even in difficult environments.
The MSI Dyna-Clamp has accommodations for a safety strap, complying with OSHA requirements. Users can measure wire ropes with up to one-inch diameters without changing equipment.
The Dyna-Clamp’s large LCD display can be clearly read in bright, sunny conditions and features a scratch-resistant overlay for added durability. Two lines on the display allow users to view two measurements. The live wire rope tension is prominently displayed on the primary display line, while the secondary display line is configurable to show wire rope diameter, average tension, or peak tension.
| Power: Battery operated two AA Cell 1.5 V alkaline batteries (can be replaced with rechargeable NiMH cells)Max Tension: 12,500 lbfOperating Time: Alkaline AA Cells 24 hoursWire Rope: Diameter 3/16 in (5 mm) – 1 in (25 mm)Accuracy: Rated Accuracy ±3% of capacity Units: |
Resolution: Standard: 2500 divisionsTwo-Line LCD Display: Primary display (bottom) six, 0.7 in (18 mm) numeric digits Secondary display (top) eight, 0.5 in (13 mm) numeric digitsFunction Keys: Two programmable keys (user-defined) – F1, F2 (TEST, UNIT, PRINT, SCROLL, ACTFUN) Two permanent keys – POWER, ZEROSetpoints: Two dedicated setpoints for minimum and maximum allowable wire rope tension (LEDs for measurements outside of allowable range) |
Auto-Off Mode: Prolongs battery life by turning power OFF after 15, 30, 45 or 60 minutes of no activity (user determined)Enclosure: IP65 powder-coated aluminum frameCalibration: Up to eight (8) factory programmed wire rope calibrationsOperating Temp: -4°F to 122°F (-20°C to 50°C)Operator Use: Outdoor Storage: Approvals: |
| model | SL15, SL30, SL50, SL100, SL300, SL500, SL1000 |
|---|
