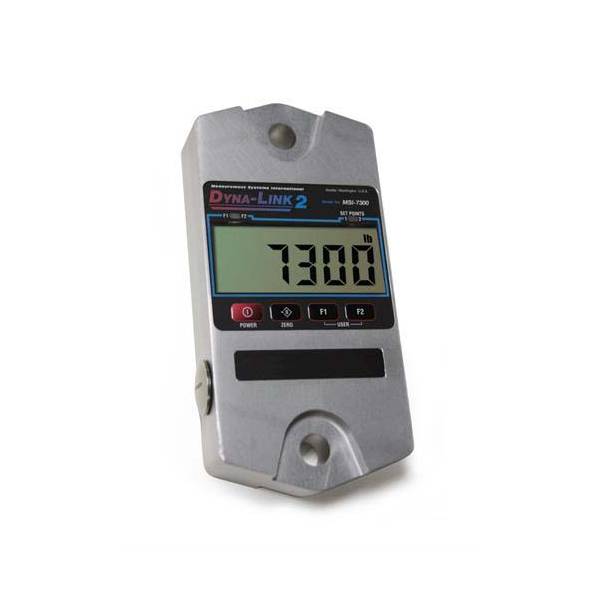

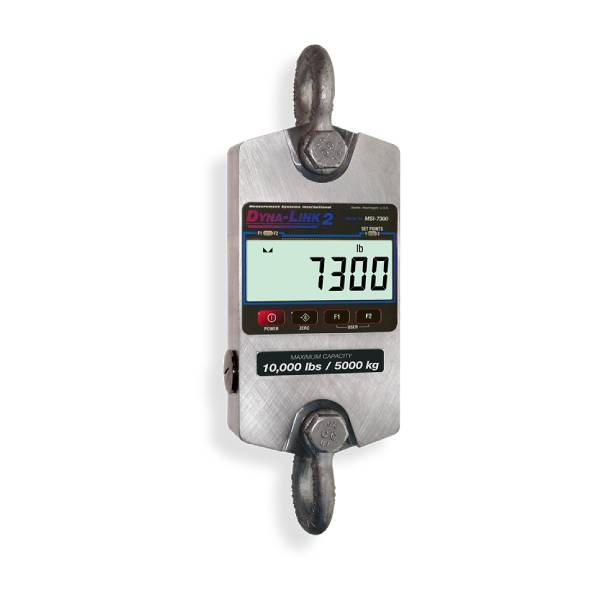

MSI-7300 Dyna-Link 2 Digital Tension Dynamometer

Categories: Dynamometer, Wireless Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model Number

Clear

Tension dynamometer with 6-digit, 1.00 in (25.4 mm) LCD display
Two C alkaline batteries for capacities up to 10,000 lb (5,000 kg)
Two D alkaline batteries for capacities 25,000 lb (12,500 kg) and above

Additional Options
(Contact MSI for application consultation)

Rugged remote control (control for On/Off, Zero, Tare and other functions)
Crosby® top and bottom shackles
Portable transport case
Serial output cable
RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display (typically 100 ft – 300 ft, line of sight, for longer range consult factory) and TranSend
Heavy capacity configurations (60 to 275 Ton)
Audible alarm
Wi-Fi or Bluetooth® communications are available for specialty applications. (Contact MSI for application consultation)

GET QUOTATION

Brand: Rice Lake

MSI-7300 Dyna-Link 2 Digital Tension Dynamometer

Categories: Dynamometer, Wireless Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model Number

Clear

Tension dynamometer with 6-digit, 1.00 in (25.4 mm) LCD display
Two C alkaline batteries for capacities up to 10,000 lb (5,000 kg)
Two D alkaline batteries for capacities 25,000 lb (12,500 kg) and above

Additional Options
(Contact MSI for application consultation)

Rugged remote control (control for On/Off, Zero, Tare and other functions)
Crosby® top and bottom shackles
Portable transport case
Serial output cable
RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display (typically 100 ft – 300 ft, line of sight, for longer range consult factory) and TranSend
Heavy capacity configurations (60 to 275 Ton)
Audible alarm
Wi-Fi or Bluetooth® communications are available for specialty applications. (Contact MSI for application consultation)

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

Tags: Digital Dynamometer, Digital Tension Dynamometer, Dynamometer, Load Cell Sensor, Petrascale, Wireless Dynamometer, Wireless Load Cell

GET QUOTATION

[woocommerce_variations_table]

Introducing New and Enhanced Performance Features

Dyna-Link 2 is lighter and more portable than its predecessor. It interfaces with industry-standard Crosby® shackles and a variety of accessories and options, including wireless connectivity with the MSI-8000 and 8000HD RF remote display. Long-range viewing is enhanced by a large six-digit, 1 inch (25.4 mm) LCD display with resolution settings up to 5,000 divisions and precision accuracy over a wide range of capacities.

Dyna-Link 2 is constructed of high-grade, aircraft-quality aluminum with an anodized finish and gasket sealing to ensure NEMA 4/IP65 rated environmental protection. Peak digital processing with low power consumption provides up to 300 hours of operation from standard common batteries during typical use. The optional MSI-8000 RF remote display provides full-function remote control of Dyna-Link 2 features up to distances of 100 feet (30m). An integrated serial port offers interface capabilities with data collection devices.

MSI-7300 Dyna-Link 2 Specifications

Accuracy:
0.1% FS of rated capacity (up to 50 ton) 0.5% FS of rated capacity (50 ton and above)Enclosure:
NEMA Type 4, IP65, anodized corrosion-resistant finishMaterial:
2024 aircraft grade aluminum
Capacities above 100 K have zinc plated enclosures and 4340 load cell bodiesDesign Overload:
200% Safe/700% Ultimate* (except where noted)Functions:
On/Off, Zero, Hi-Speed Peak Hold, Setpoints, Total, Tare, Auto-Off, Motion FilterDisplay:
6 digit, 1.00 in (25.4 mm) LCD

Displayable Units:
Pounds, kilograms, kilonewtons, tons, metric tonsLED Annunciators:
Function 1, Function 2, Setpoint 1, Setpoint 2LCD Annunciators:
Net, Center of Zero, Stable, Battery Test, Peak Hold, TotalPower:
Two each C alkaline batteries for capacities up to 10,000 lb two each D alkaline
batteries for capacities 25,000 lb–100,000 lbOperating Time:
From 150 to 300 hours in typical use depending on unit capacity and battery configuration. Approximately 25 to 30 hours with optional RF modem link installed.

Operating Temperature:
– 4°F to 140°F (-20°C to 60°C)Calibration:
DigitalFiltering:
OFF, LO, HI selectableData Output:
Serial RS-232Warranty:
Two-year limited

Optional Shackle Dimensions

RT NUMBER	MSI PART NUMBER	W.L.L. TONS	SIZE	A	B	C	D	E	F	H	L	N	P	WEIGHT	PRICE
151357	10541	3 1/4	0.63	1.06	.75	2.38	0.63	1.69	1.56	4.22	2.94	0.69	N/A	1.58	Consult
151355	10538	6 1/2	0.88	1.44	1.00	3.31	0.88	2.28	2.13	5.75	4.03	0.97	5.00	3.95	Consult
141992	10539	17	1.50	2.38	1.63	5.75	1.50	3.88	3.63	9.88	6.88	1.62	8.25	19.50	Consult
151356	10540	25	1.75	2.88	2.00	7.00	1.75	5.00	4.32	11.88	8.50	2.12	9.59	31.30	Consult
146334	23650-0030	30	1.50	2.38	1.63	5.75	1.50	3.88	3.63	9.88	6.88	1.62	8.25	20.80	Consult
146335	23650-0040	40	1.75	2.88	2.00	7.00	1.75	5.00	4.32	11.88	8.50	2.12	9.59	33.91	Consult
146336	23650-0050	55	2.00	3.25	2.25	7.75	2.00	5.75	5.00	13.38	9.75	2.00	11.00	51.75	Consult
151359	N/A	85	2.5	4.12	2.75	10.50	2.72	7.25	5.69	17.84	12.87	3.12	13.58	96.00	Consult
151360	23650-0110	120	3.00	5.00	3.25	13.00	3.00	7.88	6.50	21.50	14.50	3.63	16.50	178.00	Consult
83455	N/A	120	3	5.00	3.25	13.00	3.11	7.88	6.50	21.50	14.36	3.63	15.13	178.00	Consult
151361	23650-0175	175	4.00	5.50	4.25	14.50	4.00	10.00	9.00	25.69	18.38	4.56	19.75	338.00	Consult
151358		250	4	8.50	5.00	20.00	4.50	13.00	12.00	35.00	24.50	6.50	22.68	600.00	Consult
Oversized Shackles
148497	501386-0100	40	1.75	2.88	2.00	10.00	2.25	6.00	4.32	15.35	10.50	2.25	9.00	45.00	Consult
148393	501082-0100	40	2.25	2.88	2.00	12.50	2.25	8.00	4.32	17.85	12.50	2.25	10.00	90.00	Consult
148394	501083-0100	50	2.00	3.25	2.25	12.25	2.50	8.00	5.00	18.50	13.00	2.50	11.00	72.00	Consult
Shims
146534	30013-0112	(For use with 50,000 ton/70,000 ton systems)													Consult
