Brand:

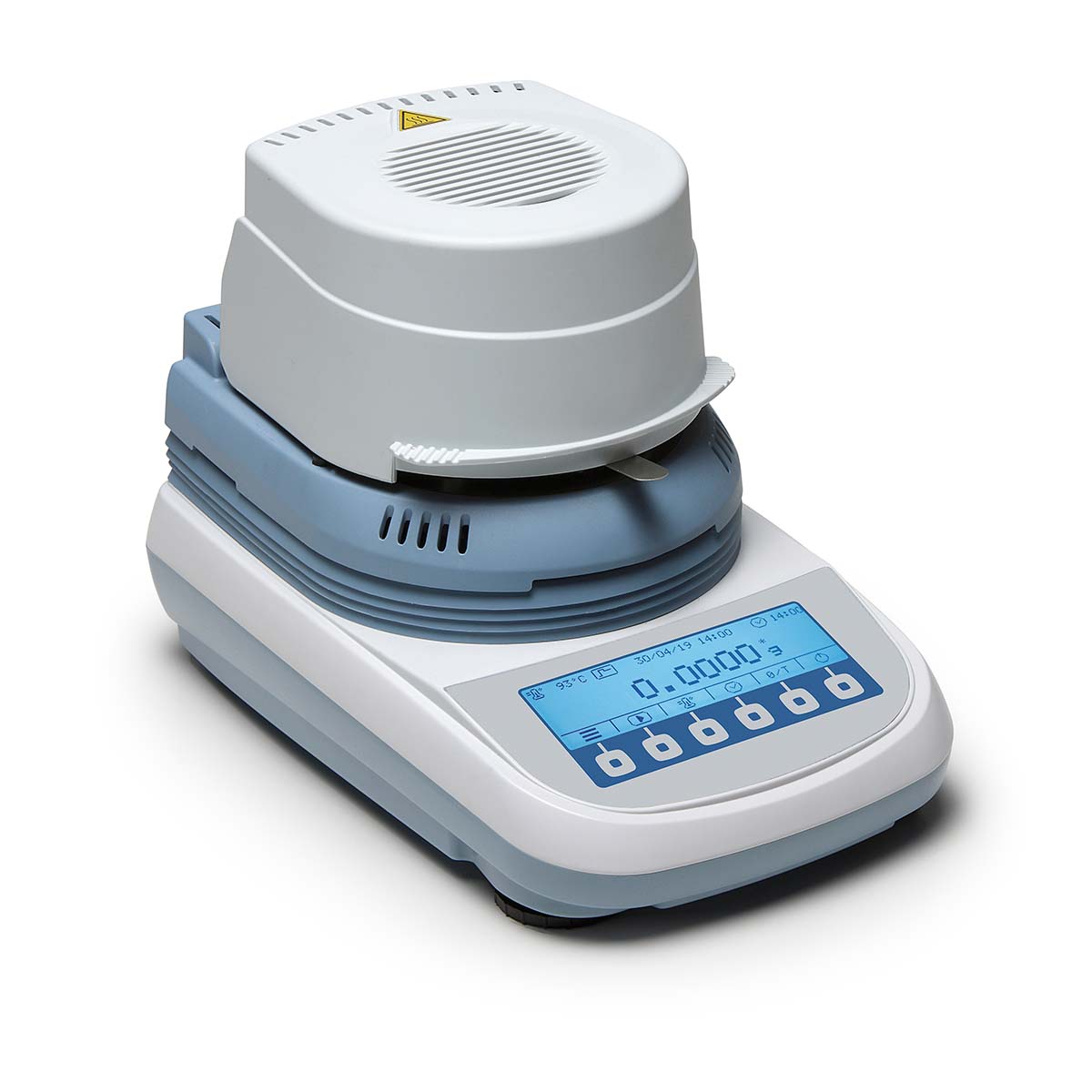

BEL, Moisture Analyzer – i-Thermo G series

Call for price

[posbadges]
Halogen Moisture Analyzer Balance
Dot Matrix Graphical display. For easy reading and user-friendly operations, accurate advanced weighing applications with high accuracy and sensitivity.
GET QUOTATION

Brand:

BEL, Moisture Analyzer – i-Thermo G series

Call for price

[posbadges]
Halogen Moisture Analyzer Balance
Dot Matrix Graphical display. For easy reading and user-friendly operations, accurate advanced weighing applications with high accuracy and sensitivity.
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

The i-Thermo G are rugged instruments for moisture determination of raw materials and finished samples in the food, cosmetics, ceramics, agriculture, and construction industry.
The Dot Matrix graphical display with backlight makes it much easier and friendly using the instrument and gives easy and intuitive guidance through the operating process thanks also to his advanced software. On the display are shown all the parameters regarding the drying process and all the relative results, all viewable at once.
This instrument brings advanced features such as one key pressing for starting automatically the last drying cycle memorized or the default one, the possibility to print the drying session by interval time set by the user, automatic session starting just by closing the heater etc…
Drying readability is 0,001%. Possibility of calibrating the internal thermometer (with optional KIT).

All the parameters all visible on the display at once during the drying session

The display shows clear and detailed results

Easy set up of the heater parameters

Moisture analyzer calibration data overview



  • Electromagnetic force restoration weighing system (A64MG and 163MG models)
  • High-resolution load cell weighing system (163LG and 62LG models)
  • Halogen-infrared lamp
  • Large Graphic display allows efficient and easy operations
  • External calibration
  • Date and time indication
  • Multi-language: EN-DE-FR-IT-ES-PT
  • GLP/ISO record
  • Two heating modes: standard and rapid
  • Pre-heating on/off
  • Time (1-99 min) and Autostop operating modes
  • Temperature range: 35-160°C/1°C
  • RS232 serial interface
  • Moisture, dry residue in percentage and ATRO indications
  • View and print the moisture analyzer and heater’s last stored calibration data
  • Measuring unit g or mg
  • Automatic starting of sessions by closing the heater
  • Plastic protection cover



Optional Accessories

  • Ioniser Ion-A15 (BL0371)
  • Thermometer calibration KIT (STCi-02)
  • Serial Printer TLP-50, with date/time (C054)
  • Serial Printer DPP-250 (AC007)
  • Alphanumeric external keyboard (AC005)
  • Serial to USB converter (E1002)
  • Serial cable for output to printer/PC (E743)
  • Aluminium TEST pans (Ø 100mm x 0,5mm) (A753)
  • Fiber glass TEST pans (Ø 90mm) (AC026)
  • Factory Calibration Certificate (BL0333)

Additional information

Model

i-Thermo G64AM, i-Thermo G163L, i-Thermo G163M, i-Thermo G62L

Capacity / Division

60g / 0.1mg, 160g / 1mg, 160g / 1mg, 60g / 0.01g

Scale Division

,

Scale Capacity Range (Table, Balances)
