● Display 4000 Counts
● Auto & Manual Ranging
● Auto Power Off
● ℃/℉ Selection
● Diode Open Voltage 1.5V
● Continuity Buzzer <50±20Ω
● Data Hold
● Low Battery Display
● Display Backlight
Brand: Mastech
Categories: Electrical Meters, Measuring Instruments
Call for price
Brand: Mastech
Categories: Electrical Meters, Measuring Instruments
Call for price

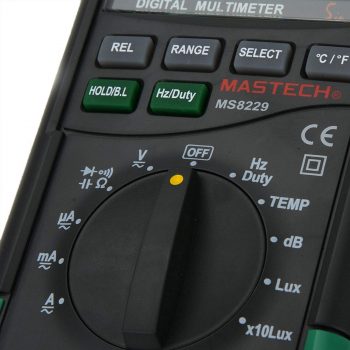

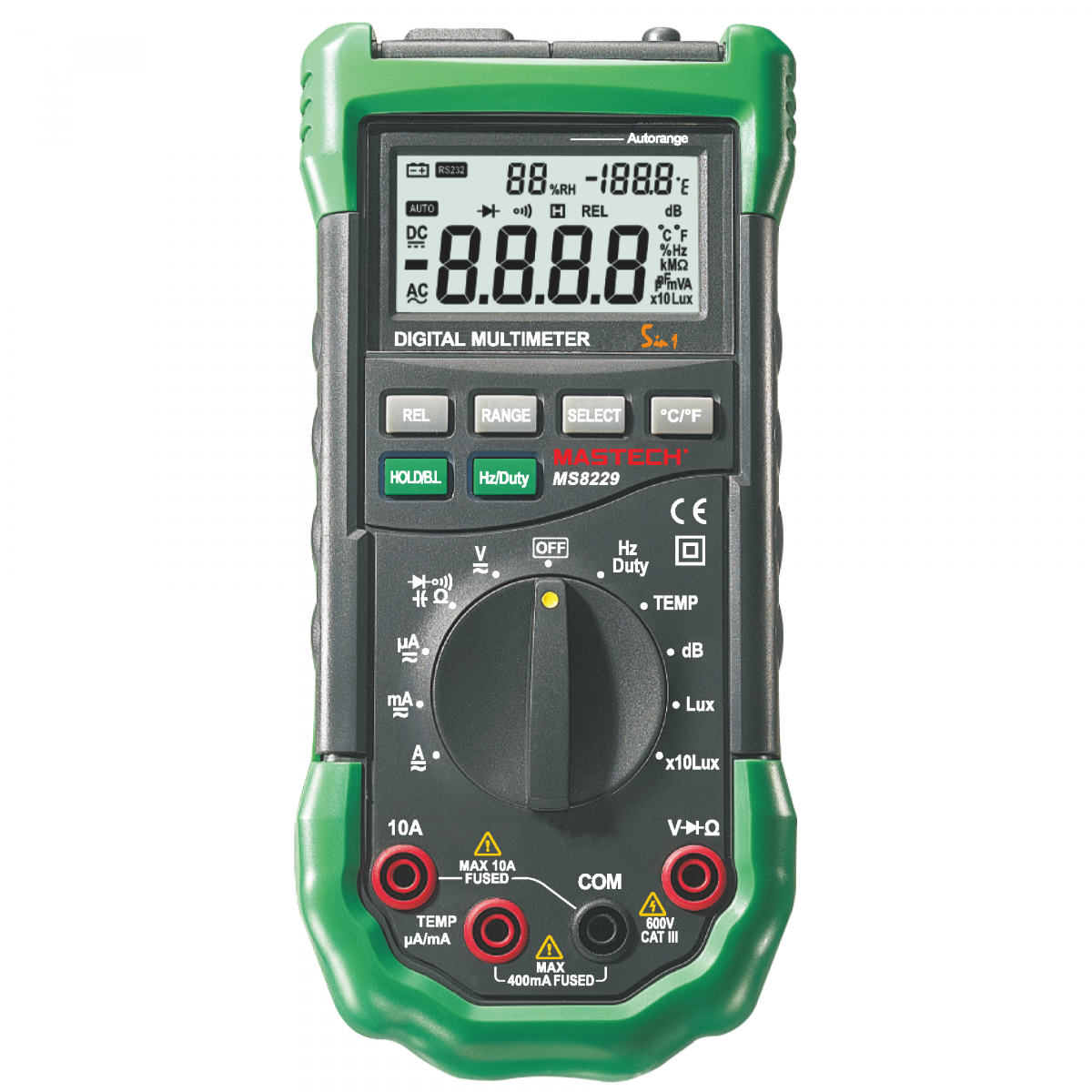

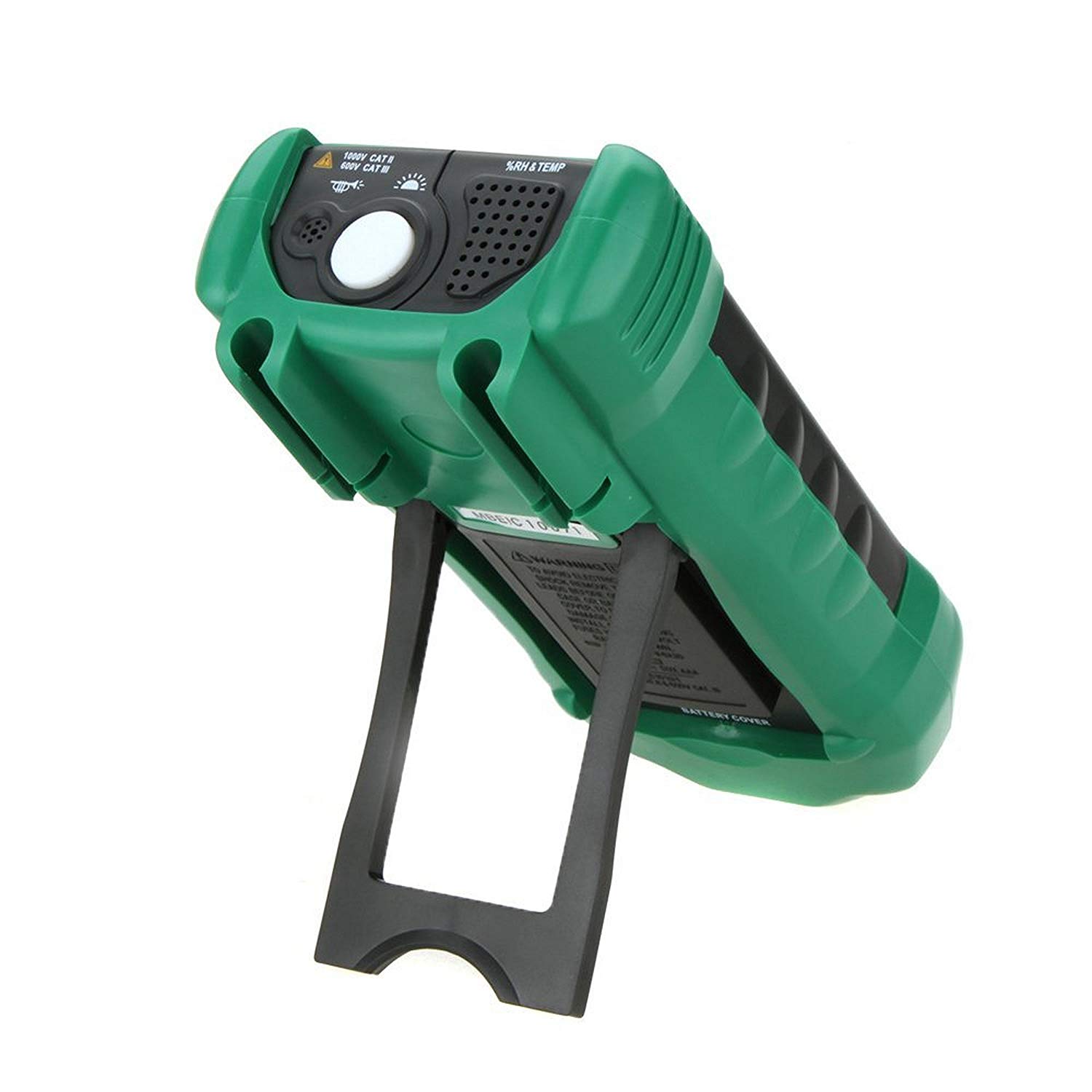

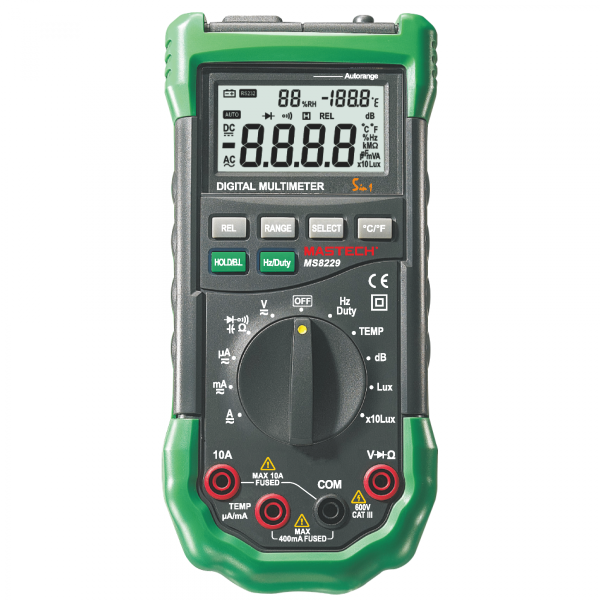

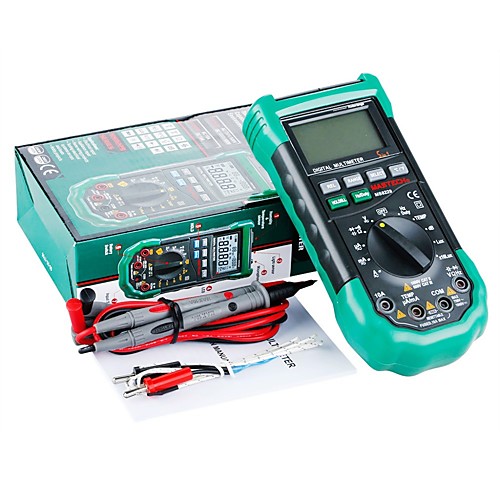

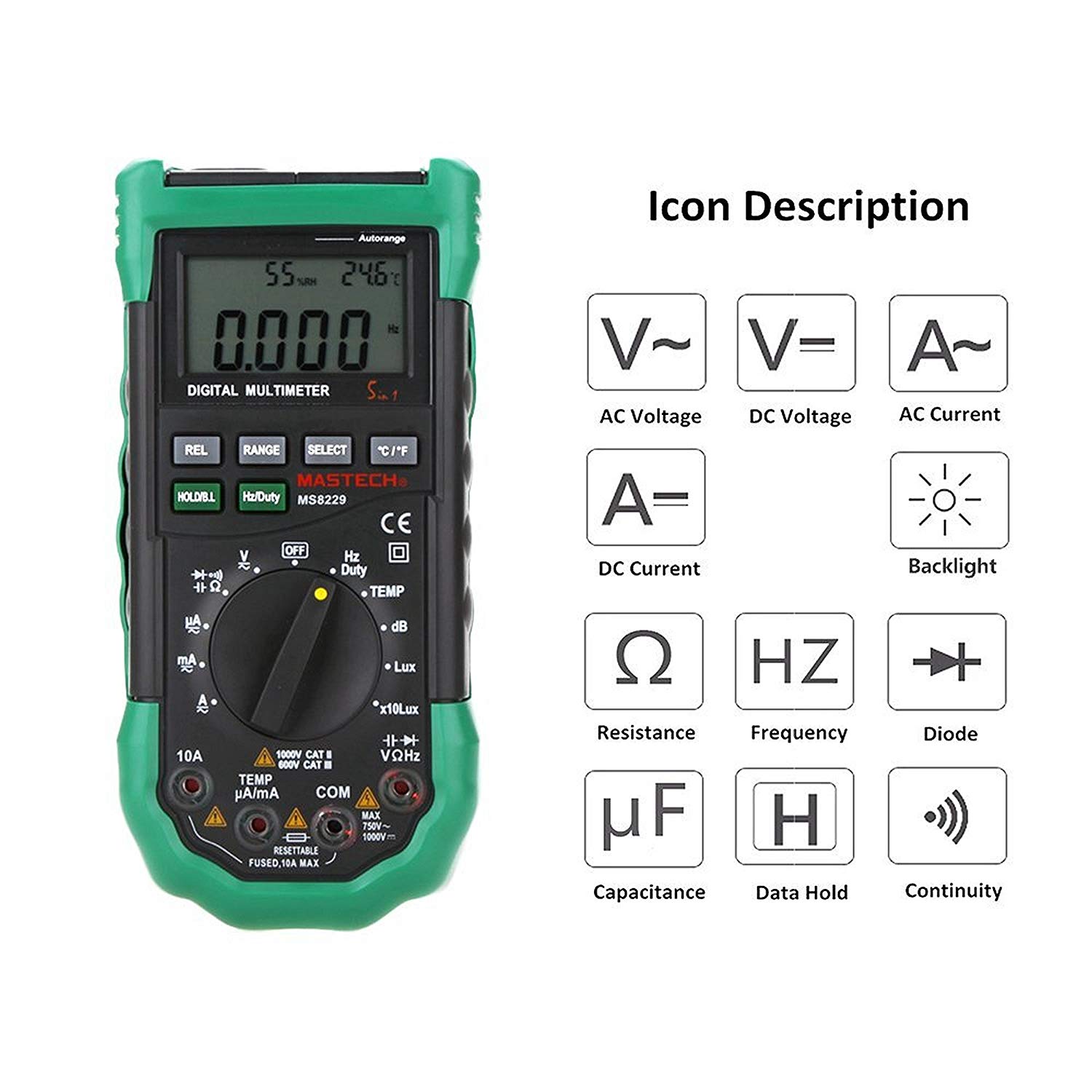

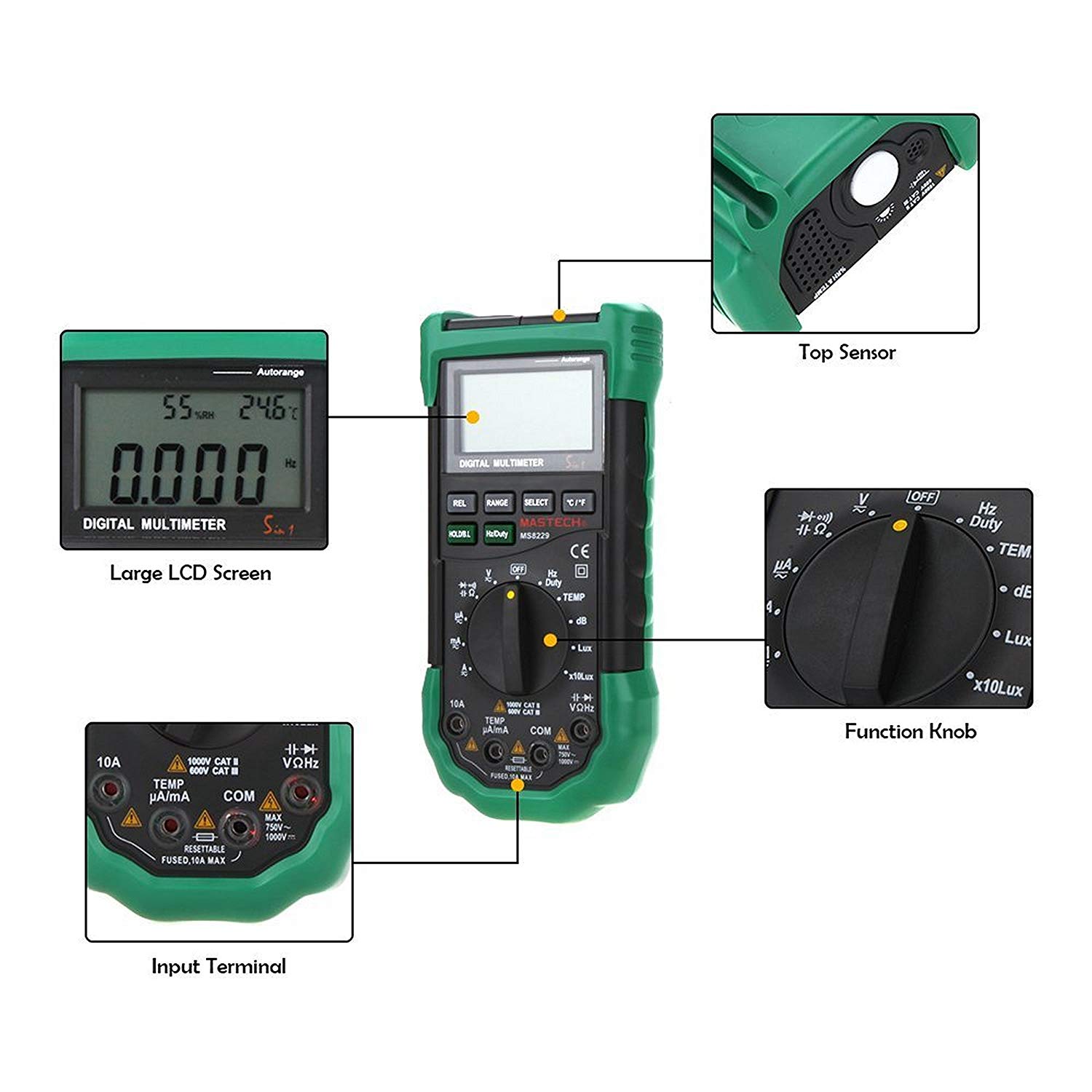

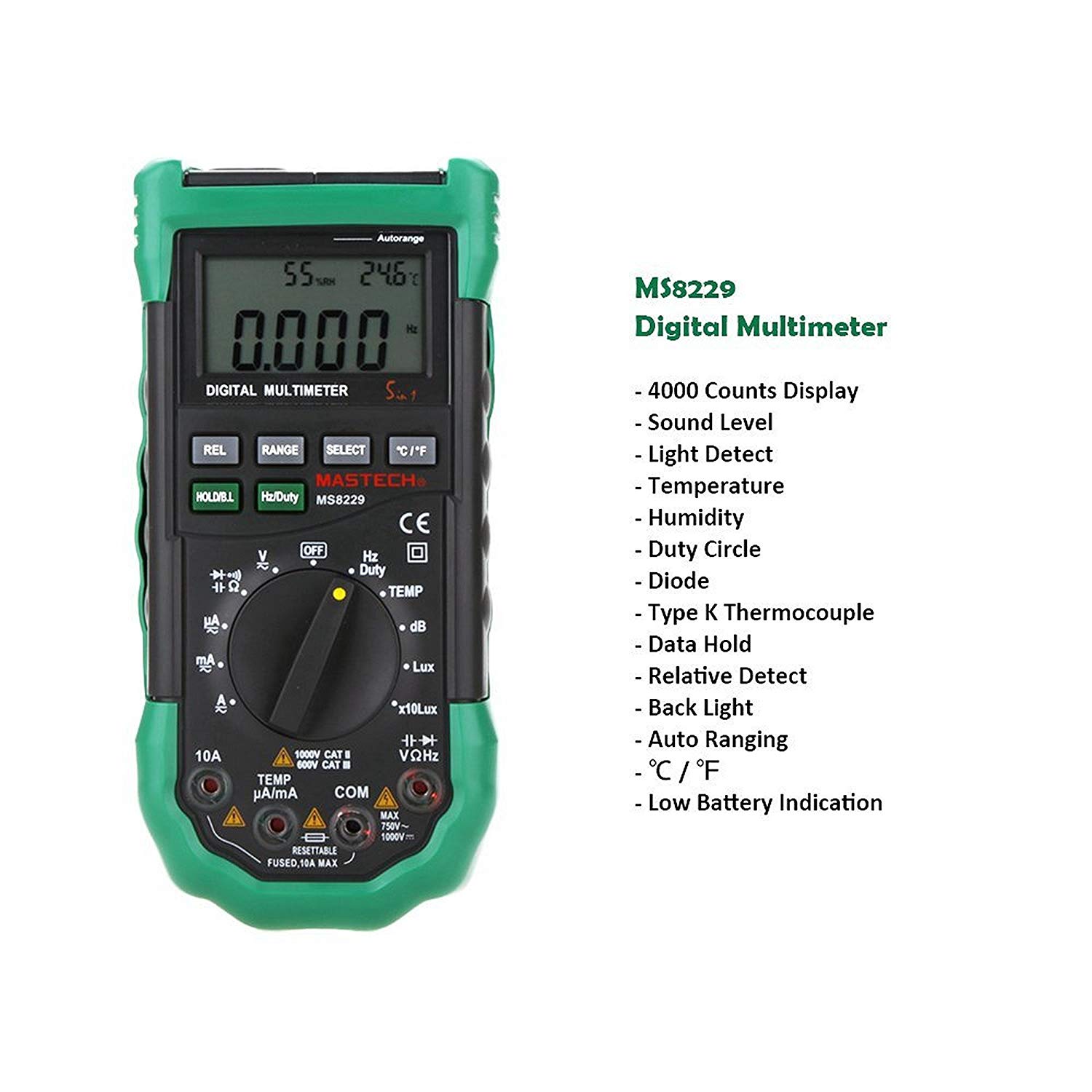

Auto Range Multimeter & Temperature Humidity Light Lux Sound Level Meter Tester 5 in 1 with Back Light
● Display 4000 Counts
● Auto & Manual Ranging
● Auto Power Off
● ℃/℉ Selection
● Diode Open Voltage 1.5V
● Continuity Buzzer <50±20Ω
● Data Hold
● Low Battery Display
● Display Backlight
| Specifications | Range | Resolution | Accuracy | |
| DC Voltage | 400mV/4V/40V/400V/600V | 0.1mV/1mV/10mV/0.1V/1V | ±(0.7%+2) | |
| AC Voltage | 400mV/4V/40V/400V | 0.1mV/1mV/10mV/0.1V | ±(0.8%+3) | |
| 600V | 1V | ±(1.0%+3) | ||
| DC Current |
400μA/4000μA/40mA/400mA
|
0.1μA/1μA/10μA/0.1mA | ±(1.2%+3) | |
| 4A/10A | 1mA/10mA |
±(2.0%+10)
|
||
| AC Current |
400μA/4000μA/40mA/400mA
|
0.1μA/1μA/10μA/0.1mA | ±(1.5%+5) | |
| 4A/10A | 1mA/10mA |
±(3.0%+10)
|
||
| Resistance |
400Ω/4kΩ/40kΩ/400kΩ/4MΩ
|
0.1Ω/1Ω/10Ω/0.1kΩ/1kΩ | ±(1.2%+2) | |
| 40MΩ | 10kΩ | ±(2.0%+5) | ||
| Capacitance |
40nF/400nF/4μF/40μF/100μF
|
0.01nF/0.1nF/1nF/10nF/0.1μF
|
±(3.0%+3) | |
| Frequency | 10Hz | 0.001Hz | ±(2.0%+5) | |
| 100Hz/1000Hz/10kHz | 0.01Hz/0.1Hz/1Hz | ±(1.5%+5) | ||
| 100kHz/200kHz | 10Hz/0.1kHz | ±(2.0%+5) | ||
| >200kHz | 0.1kHz | Reference | ||
| Duty Cycle | 0.1%~99.9% | 0.1% | ±(3.0%) | |
| Temperature (K-Type) |
-20℃~0℃ | 1℃ | ±(5.0%+3) | |
| 1℃~400℃ | 1℃ | ±(1.0%+2) | ||
| 401℃ ~1000℃ | 1℃ | ±(2.0%) | ||
| -4℉~32℉ | 1℉ | ±(5.0%+6) | ||
| 33℉~752℉ | 1℉ | ±(1.0%+4) | ||
| 753℉~1832℉ | 1℉ | ±(2.0%) | ||
| Environment | 0℃~40℃ | 0.1℃ | ±(2.0℃) | |
| 32℉~104℉ | 0.1℉ | ±(4.0℉) | ||
| Relative Humidity | 20%~95% | 0.1% | ±(5.0%) | |
| Sound Level | 40dB~100dB | 0.1dB | ±(3.5%) | |
| Luminosity | 4000Lux/40000Lux | 1 Lux/10 Lux |
±(5.0%+10)
|
| MODEL | MS-8229 |
|---|---|
| SIZE | AC/DC 600 V |
