Call for price
| Specifications | Accuracy |
|---|---|

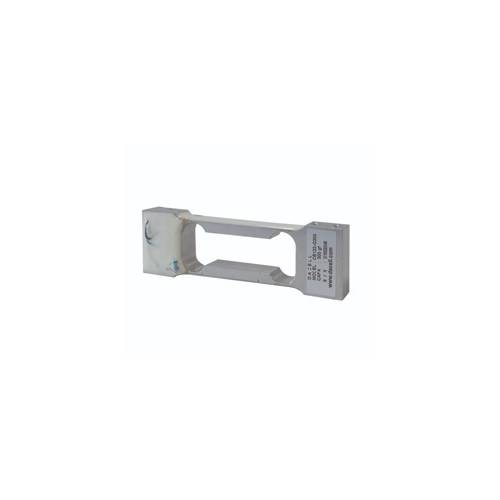

| Model | CB122 |
| Rated capacity(R.C) | 200gf, 300gf |
| Rated output(R.O) | 1.2mV/V ± 20% |
| Nonlinearity | 0.02% of R.O. |
| Hysteresis | 0.02% of R.O. |
| Repeatability | 0.02% of R.O. |
| Zero Balance | ±5% of R.O. |
| Temperature range, compensated | 0 ~ 40℃ |
| Temperature range, safe | -10 ~ 50℃ |
| Temp. Effect on rated output | ±0.02% of LOAD/10℃ |
| Temp. Effect on zero balance | ±0.03% of R.O./10℃ |
| Terminal resistance input | 420 ± 30Ω |
| Terminal resistance output | 350 ± 5Ω |
| Insulation resistance bridge | 2000MΩ |
| Cable length | Φ3, 4CORE SHIELD CABLE, 1.5m |
| Excitation recommended | 10V |
| Safe overload | 150% R.C |
| model | SL15, SL30, SL50, SL100, SL300, SL500, SL1000 |
|---|
