Brand:

JCM 360 Gold Telemetry Load Links

Call for price

[posbadges]

Features of ALRS2 electronics

  • 600 meter range
  • Constant peak and actual load continually displayed
  • 5 units of measurement, Te, Kgs, lbs, US Tons, kN
  • Internal antenna
  • Display light for easy viewing
  • Fast update speed
  • Simple battery change out
  • Optional logging package
  • Easy to use
GET QUOTATION

Brand:

JCM 360 Gold Telemetry Load Links

Call for price

[posbadges]

Features of ALRS2 electronics

  • 600 meter range
  • Constant peak and actual load continually displayed
  • 5 units of measurement, Te, Kgs, lbs, US Tons, kN
  • Internal antenna
  • Display light for easy viewing
  • Fast update speed
  • Simple battery change out
  • Optional logging package
  • Easy to use
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

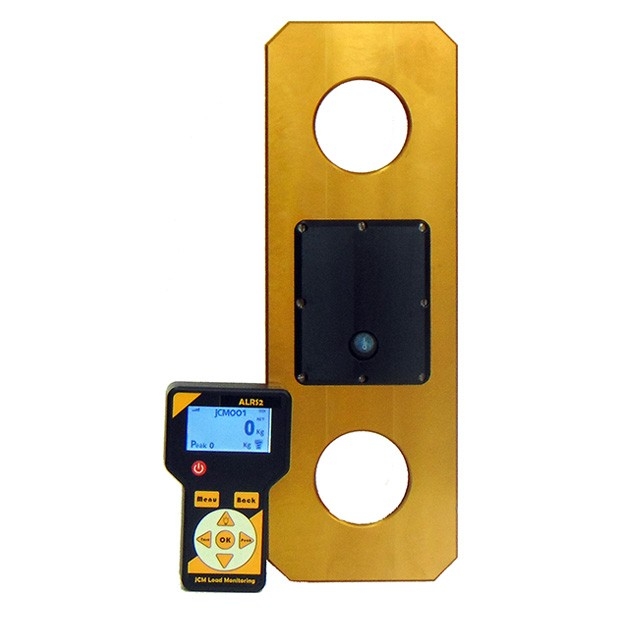

Features of JCM Gold telemetry load links

  • Full O’ring sealing
  • Lightweight aerospace aluminum
  • Flush covers
  • Full traceable calibration
  • Temperature-compensated
  • 360° radio output
  • Units available from 2.5 to 500 Tonne
  • 1-year battery life option on load link



All our load links are manufactured from anodized aerospace-grade aluminum, allied with our full O-ring sealing gives ingress protection of IP67.

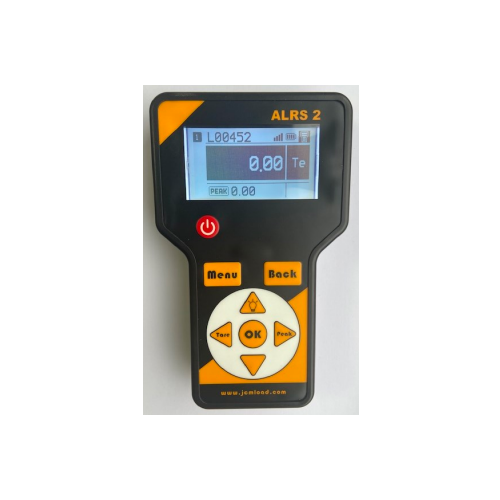

Our new upgraded ALRS2 handset, which stands for Advanced Load Radio System 2 has many features including 6 units of measurement, actual and peak load continuous display.

All of our load links are of a linear construction giving industry-leading accuracy, we have also managed to streamline our manufacturing process which means we can pass this saving on to our customers.

All JCM load links come with the following features:

  • Linear construction

  • Repeatability

  • 6 units of measurement

  • Full O’ring sealing

  • User friendly

All wireless load links are supplied complete with a calibration certificate and proof test certificate. Full user instructions are provided with re-calibration instructions available upon request. We can also provide training on how to use the equipment.

Cabled units are also available.

Data logging with the capability to log up to 96 ALRS2 load cells is also available.

ALRS2 family now consists of

– Telemetry

– Cabled

– Self-indicating

– Telemetry self-indicating

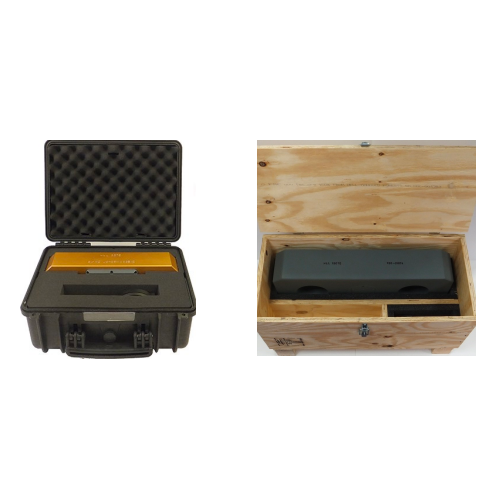

Units from 2.5 to 50 Tonne are supplied in an IP67 transit case,
75 to 500 Tonne units supplied in a hinged wooden transit crate, made with heat-treated wood so ready for international shipping

Additional information

Size

2.5 Tonne, 5 Tonne, 12.5 Tonne, 25 Tonne, 35 Tonne, 55 Tonne, 75 Tonne, 100 Tonne, 150 Tonne, 200 Tonne, 250 Tonne, 300 Tonne, 400 Tonne, 500 Tonne
