Brand: Rice Lake
Categories: Indicators & Controllers
Call for price
Call for price
Tags: Petrascale

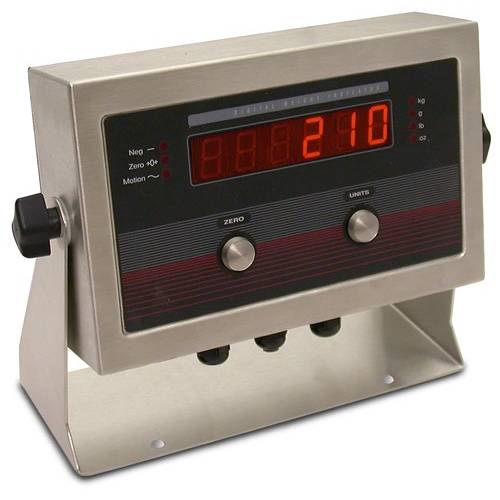

IQ plus 210 digital weight indicator is known for its performance with the IQ plus 2100 bench scale, but it’s the ideal replacement indicator for any bench scale in portioning, ingredient weighing and general industrial applications. It’s large, vibrant display rivals any other in its class as well as the ability to show pounds and ounces simultaneously.
Its rugged design includes a NEMA Type 4X stainless steel enclosure that protects electronics from frequent washdown, and sealed, stainless steel buttons resist damage in abusive environments.
It’s so easy to use—all operations are controlled with just two buttons, zero and units. For ultimate simplicity, the units button can be disabled, virtually eliminating operator errors. Auto or stream print modes are standard, or mount an optional print button on the top of the enclosure for connection to a printer or PC. Configuration can be completed through the indicator’s front panel, EDP port or from a personal computer with Revolution™ software.
| Power: Line voltages: 115 VAC or 230 VAC Frequency: 50-60 HzExcitation Voltage: 10 VDC 4 x 350Ω load cellsAnalog Signal Input Range: 0.6 mV/V – 4.5 mV/V Analog Signal Sensitivity: A/D Sample Rate: Resolution: Digital Inputs: |
Communication Ports: Full duplex RS-232, 9600, 4800, 2400, 1200bps; Seven or eight data bits, even, off, or no parityDisplay: Six-digit light emitting diode (LED) display Seven-segment, 0.8 in (20 mm) digitsTemperature Range: Operating: 14°F to 104°F (-10°C to 40°C) Storage: 14°F to 122°F (-10°C to 50°C) |
Enclosure Dimensions: 9.5 in x 6.0 in x 2.75 in (241 mm x 152 mm x 70 mm)Rating/Material: NEMA Type 4X/IP66, stainless steelWeight: 10 lb (4.5 kg) Warranty: Approvals: |
| IQ Plus 210 Dimensions | |||
|---|---|---|---|
| A | 9.50 in (241 mm) | E | 6.00 in (152 mm) |
| B | 10.03 in (254 mm) | F | 8.58 in (217 mm) |
| C | 11.67 in (296 mm) | G | 3.75 in (95 mm) |
| D | 2.69 in (68 mm) | ||
