iGaging Absolute Digital Indicator 0.5″/12.5mm – Resolution: 0.0005″/0.01mm

Call for price

[posbadges]

Digital indicator

  • Range: 0.5″/12.5mm
  • Resolution: 0.0005″/0.01mm
  • Accuracy: 0.0005″/0.01mm



Part no.: 35-705-10

GET QUOTATION

Brand:

iGaging Absolute Digital Indicator 0.5″/12.5mm – Resolution: 0.0005″/0.01mm

Call for price

[posbadges]

Digital indicator

  • Range: 0.5″/12.5mm
  • Resolution: 0.0005″/0.01mm
  • Accuracy: 0.0005″/0.01mm



Part no.: 35-705-10

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]

Tags:

GET QUOTATION
[woocommerce_variations_table]

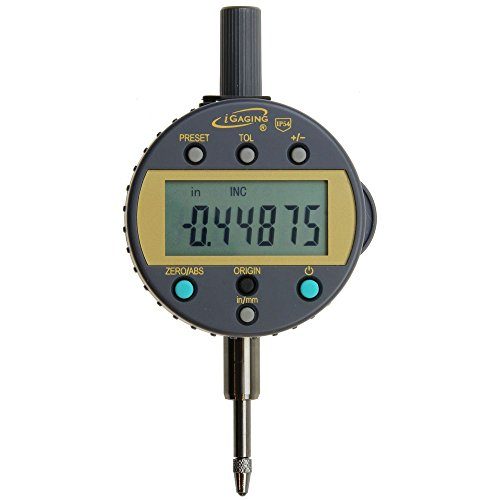

iGaging ABSOLUTE Technology Indicator

The iGaging digital electronic indicator with ABSOLUTE encoder always remembers and traces absolute origin zero or preset data. It provides unlimited measuring speed without losing its origin. This indicator will indicate the absolute position when turned on. The indicator face can be rotated up to 330 degrees



Features:

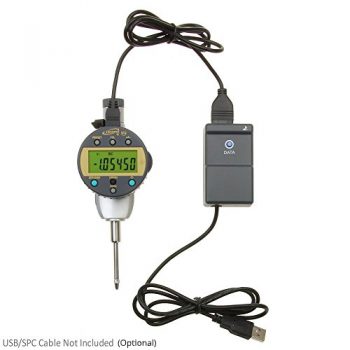

  • SPC/USB Data Port
  • Indicator face can be rotated up to 330 degrees
  • ABSOLUTE encoder technology
  • IP54 Protection
  • Read and convert Inch/mm display
  • Change measuring direction – Positive up or positive down
  • Origin set
  • Preset value
  • Tolerance function
  • Zero/ABS – Switch between the incremental and absolute measuring
  • Super large LCD display
  • Shank diameter: 3/8″
  • Carbide tip
  • 4-48 threaded tip
  • 2 Years warranty



Specifications:

  • Range: 0.5″/12.5mm
  • Resolution: 0.0005″/0.01mm
  • Accuracy: 0.0005″/0.01mm
  • Repeatability: 0.0005″/0.01mm
  • Battery: 1x CR2032 (2 included)



Part no.: 35-705-10



Series comparison:

35-705-10 35-700-10
Range 0.5″/12.5mm
Resolution 0.0005″/0.01mm 0.00005″/0.001mm
Accuracy 0.0005″/0.01mm 0.00016″/0.0041mm
Repeatability 0.0005″/0.01mm 0.00005″/0.001mm

Additional information

Model

35-705-10

Sizes

0-12.5mm (0-0.5")

Resolution

0.0005"/0.01mm

Accuracy

0.0005"/0.01mm
