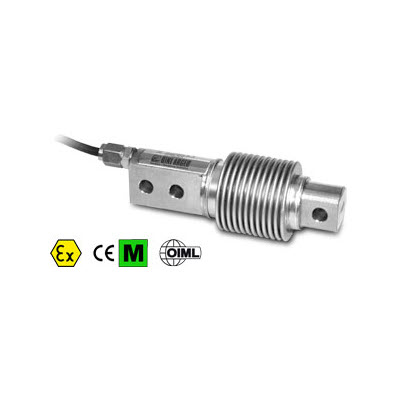

FXD Series Bending Beam Load Cells

Call for price

[posbadges]

Bending beam load cells for approved weighing (capacities from 100kg to 500kg), automatic systems, dosage.
CAPACITIES (kg): 10, 20 , 50, 100, 200, 300, 500.
OIML R60. C3 precision class.
Stainless steel. IP68 protection.

GET QUOTATION

Brand:

FXD Series Bending Beam Load Cells

Call for price

[posbadges]

Bending beam load cells for approved weighing (capacities from 100kg to 500kg), automatic systems, dosage.
CAPACITIES (kg): 10, 20 , 50, 100, 200, 300, 500.
OIML R60. C3 precision class.
Stainless steel. IP68 protection.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

MAIN FEATURES

  • C3 PRECISION CLASS
  • STAINLESS STEEL
  • IP68 PROTECTION
  • MAX. CAPACITIES FROM 10 TO 500 kg
  • SHIELDED CONNECTION CABLE
  • OIML CERTIFICATE AVAILABLE UPON REQUEST
  • TEST CERTIFICATE AVAILABLE UPON REQUEST



TECHNICAL FEATURES

  • Minimum load cell verification interval: Vmin = EMax / 10.000
  • Maximum number of verification intervals: nLC= 3000
  • Full Scale Output: 2 mV/V ± 0,1%
  • Combined error: 0,012% of Full Scale Output (F.S.)
  • Non-Repeatability: 0,01% F.S.
  • Temperature effect on zero: +/- 0,02% F.S. / 10°C
  • Temperature effect on full scale output: +/- 0,02% F.S. / 10°C
  • Compensated Temperature Range: –10°C/+50°C
  • Operating Temperature Range: –20°C/+60°C
  • Creep error after 30 minutes +/- 0,012% F.S.
  • Maximum tolerated excitation voltage: 15 VDC
  • Input Resistance: 385 ± 10 Ohm
  • Output Resistance: 350 ± 3 Ohm
  • Insulation Resistance: > 5000 MOhm
  • Safe Overload: 120% F.S.
  • Ultimate Overload: 150% F.S.
  • Nominal displacement: < 0,4 mm
  • 4-wire shielded cable, 3m long, 5mm diameter.

Additional information

Model

FXD10, FXD20, FXD50, FXD100, FXD200, FXD300, FXD500

Max (kg)

10, 20, 50, 100, 200, 300, 500
