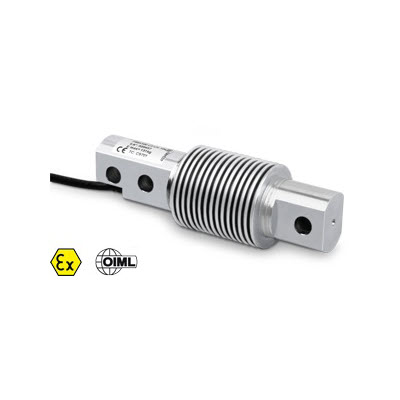

“FXC C6” Series: Bending Beam Load Cells, C6 Class

Call for price

[posbadges]

Bending beam load cells for approved weighing, automatic systems, dosage.
CAPACITIES (kg): 20, 50, 100, 200.
OIML R60. C6 precision class.
Stainless steel. IP68 protection.

GET QUOTATION

Brand:

“FXC C6” Series: Bending Beam Load Cells, C6 Class

Call for price

[posbadges]

Bending beam load cells for approved weighing, automatic systems, dosage.
CAPACITIES (kg): 20, 50, 100, 200.
OIML R60. C6 precision class.
Stainless steel. IP68 protection.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

MAIN FEATURES

  • C6 PRECISION CLASS
  • STAINLESS STEEL
  • IP68 PROTECTION
  • MAX. CAPACITIES FROM 20 TO 200 kg
  • SHIELDED CONNECTION CABLE
  • OIML CERTIFICATE AVAILABLE UPON REQUEST
  • TEST CERTIFICATE AVAILABLE UPON REQUEST



TECHNICAL FEATURES

  • Minimum load cell verification interval: Vmin = EMax / 10.000
  • Maximum number of verification intervals: nLC= 6000
  • Full Scale Output: 2mV/V +/- 1%
  • Combined error: 0,008% of Full Scale Output (F.S.)
  • Temperature effect on zero: +/- 0,0014% /°C
  • Temperature effect on full scale output: +/- 0,0007% /°C
  • Compensated Temperature Range: –10°C/+40°C
  • Operating Temperature Range: –20°C/+60°C
  • Creep error after 30 minutes +/- 0,012% F.S.
  • Maximum tolerated excitation voltage: 15 VDC
  • Input Resistance: 385 ± 20 Ohm
  • Output Resistance: 350 ± 5 Ohm
  • Insulation Resistance: > 5000 MOhm
  • Safe Overload: 150% F.S.
  • Ultimate Overload: 200% F.S.
  • 4-wire shielded cable, 3m long, 4mm diameter.

Additional information

Model

FXC20C6-1, FXC50C6-1, FXC100C6-1, FXC200C6-1

Max (kg)

20, 50, 100, 200
