“Easy Level”, Aluminium Levelling Modules for Mobile or Fixed Axle Weighing Stations

Call for price

[posbadges]

Transportable levelling modules, in aluminium, ideal for creating mobile or fixed axle weighing stations.
Improve the accuracy of the weight reading, thanks to the optimal distribution of the load on the axles during weighing. Specific for WWSE and WWSD series platforms.

GET QUOTATION

Brand:

“Easy Level”, Aluminium Levelling Modules for Mobile or Fixed Axle Weighing Stations

Call for price

[posbadges]

Transportable levelling modules, in aluminium, ideal for creating mobile or fixed axle weighing stations.
Improve the accuracy of the weight reading, thanks to the optimal distribution of the load on the axles during weighing. Specific for WWSE and WWSD series platforms.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

ADVANTAGES

  • Made entirely of aluminum, to resist against corrosion and weathering.
  • Easy to carry, thanks to the carrying handle and built-in hinges that allow you to close the modules easily, reducing the overall dimensions to a minimum.
  • For static and dynamic axle weighing applications.



TECHNICAL FEATURES

  • Aluminium structure.
  • Maximum load capacity of the single module: up to 20t (per axle up to max. 40t).

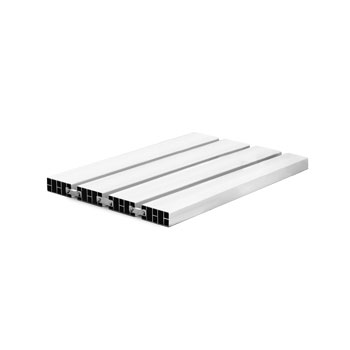

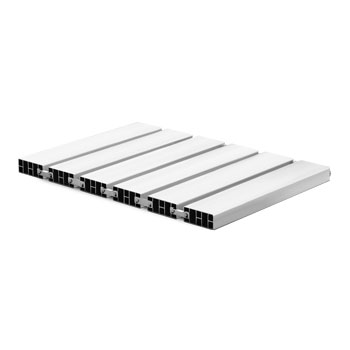

  • Single module dimensions:
    For WWSE: 990 x 59 x 700 mm (LxHxW)
    For WWSD: 650 x 59 x 900 mm (LxHxW)
  • Non-slip surface for maximum grip on all types of surfaces.
  • Carrying handle, with adjustable straps, as standard.

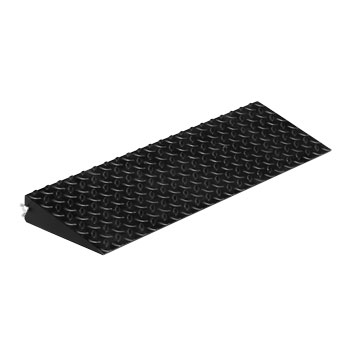

  • Optional iron ramp to facilitate the ascent/descent of the vehicle.
  • Ramp dimensions:
    For WWSE: 201 X 54 X 700 mm (LxHxW)
    For WWSD: 201 X 54 X 900 mm (LxHxW)

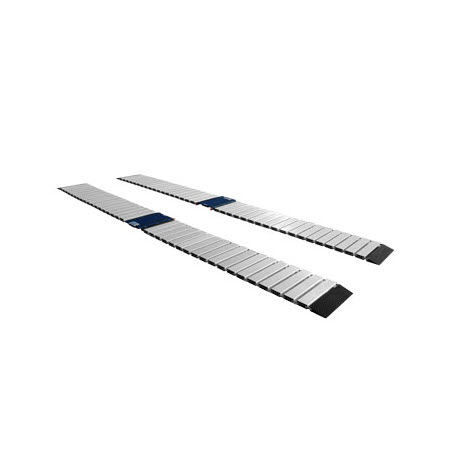

“EASY LEVEL” KIT

  • “Easy level” kit composed by:
    – 12 or 20 levelling modules
    – 4 ramps
    for the creation of complete axle weighing stations.

Additional information

Model

LMEK12, LMDK18, LME, LMRE, LMD, LMRD

Description

"Easy Level" kit, for WWSE. Consisting of 12 levelling modules and 4 ramps., "Easy Level" kit, for WWSD. Consisting of 20 levelling modules and 4 ramps., Aluminium levelling module, for WWSE. Dimensions: 990 x 59 x 700 mm (LxHxW)., Iron ramp, for LME levelling modules. Dimensions: 201 x 54 x 700 mm (LxHxW)., Aluminium levelling module, for WWSD. Dimensions: 650 x 59 x 900 mm (LxHxW)., Iron ramp, for LMD levelling modules. Dimensions: 201 x 54 x 900 mm (LxHxW).
