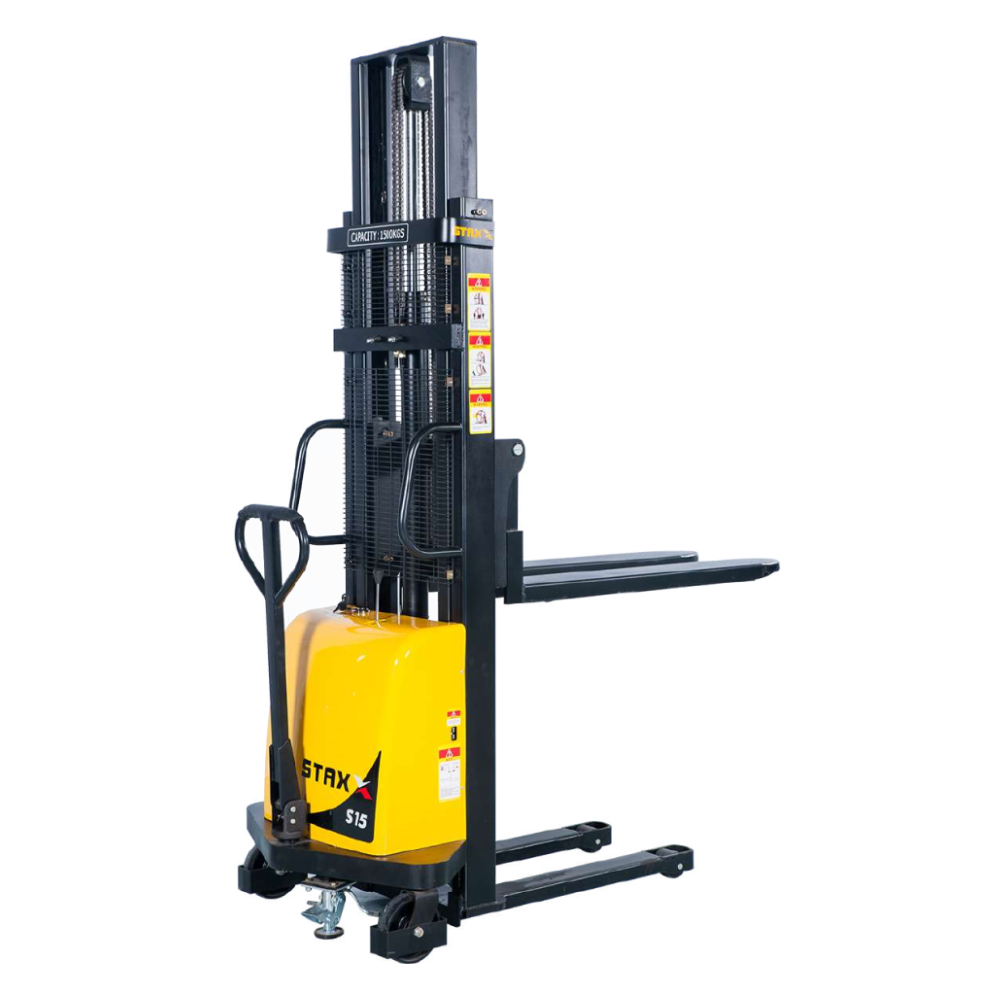

DYC – Semi Electric Forkover Stacker

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Weighing Scale Capacity

Clear

Cost-effective option for carrying out diverse stacking operations and the loading and unloading of utility vehicles.
Study and reliable mast made of rolled U-profiles.
Hard chrome plated piston.
Adjustable lifting chain.
Powerful lift motor 1.5 kW

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Weighing Scale Capacity

Clear

Cost-effective option for carrying out diverse stacking operations and the loading and unloading of utility vehicles.
Study and reliable mast made of rolled U-profiles.
Hard chrome plated piston.
Adjustable lifting chain.
Powerful lift motor 1.5 kW

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

[woocommerce_variations_table]

SPECIFICATIONS

MODEL				DYC10	DYC15	DYC20
CHAR	ACTERISTICS
1.1	Capacity	Q	kg	1000	1500	2000
1.2	Load center	C	mm	450	450	450
1.3	Lifting height	H	mm	1600/2000/2500/3000/3300/3500	1600/2000/2500/3000/3300/3500	800/1600/2000/2500
1.4	Lowered height of fork	H3	mm	85	85	85
1.5	Fork length	L	mm	1000/1150	1000/1150	1000/1150
1.6	Fork size		mm	54*160	54*160	54*160
1.7	Fork width	E	mm	320~540 / 320~680 Adjustable	320~540 / 320~680 Adjustable	320~540 / 320~680 Adjustable
1.8	Turing Radius	Wa	mm	1360	1360	1360
1.9	Mast extend height	H2	mm	2065/2535/3035/3535/3835/4035	2065/2535/3035/3535/3835/4035	1300/2065/2535/3035
1.10	Mast lower height	H1	mm	2065/1580/1830/2080/2230/2330	2065/1580/1830/2080/2230/2330	1300/2065/1580/1830
1.11	Overall width	B	mm	850/950	850/950	850/950
1.12	Overall length	A	mm	1690/1840	1690/1840	1870(800mm lifting) / 1720/1690/1840
1.13	Minimum ground clearance	H4	mm	30	30	30
LIFTI	NG SYSTEM
2.1	Lifting speed(unladen/laden)		m/s	0.08~0.15	0.08~0.15	0.08~0.15
2.2	Lowering speed(unladen/laden)		m/s	0.08~0.15	0.08~0.15	0.08~0.15
2.3	Lifting motor		v/kw	12/1.5	12/1.5	12/1.5
2.4	Battery capacity		v/ah	12/120	12/120	12/120
2.5	Charger		v/a	12/15	12/15	12/15
WEIG	HT
3.1	Weight		kg	380~460	380~480	380~480
