Brand:

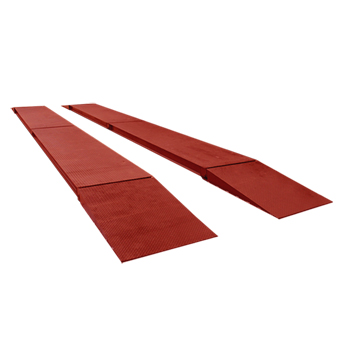

DTW “Dual Track” Vehicle Weighing Series

Categories:

Call for price

[posbadges]

TECHNICAL FEATURES

  • Precise and versatile platforms, suitable for all kinds of applications; ideal for modern industries, farms, work yards, landfills, ports, etc, in which one can save space or change the logistical stations.
  • Extremely compact: only 22 cm high. Takes up little space if installed on the street surface, reduced masonry if installed flush floor to the road surface.
  • The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe (version for higher loads is available upon request).
  • Sturdy loading surface in striated sheet steel.
  • Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.
  • Installable above, as well as flush floor to the street surface.
  • Reinforced on and off ramps, for mobile or fixed installation (optional).
GET QUOTATION

Brand:

DTW “Dual Track” Vehicle Weighing Series

Categories:

Call for price

[posbadges]

TECHNICAL FEATURES

  • Precise and versatile platforms, suitable for all kinds of applications; ideal for modern industries, farms, work yards, landfills, ports, etc, in which one can save space or change the logistical stations.
  • Extremely compact: only 22 cm high. Takes up little space if installed on the street surface, reduced masonry if installed flush floor to the road surface.
  • The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe (version for higher loads is available upon request).
  • Sturdy loading surface in striated sheet steel.
  • Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.
  • Installable above, as well as flush floor to the street surface.
  • Reinforced on and off ramps, for mobile or fixed installation (optional).
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

(*)NET PRICES: please contact the sales department for further information.
WARNING: the product requires special transport, with quote.
(**) Fitted with CE-M 3000e approval. The dual range CE-M 3000 + 3000e approval is optional, upon price estimated.



TECHNICAL FEATURES

  • Precise and versatile platforms, suitable for all kinds of applications; ideal for modern industries, farms, work yards, landfills, ports, etc, in which one can save space or change the logistical stations.
  • Extremely compact: only 22 cm high. Takes up little space if installed on the street surface, reduced masonry if installed flush floor to the road surface.
  • The load capacity complies with the 96/53/EC Directive which defines the maximum axle load for the vehicles transiting in Europe (version for higher loads is available upon request).
  • Sturdy loading surface in striated sheet steel.
  • Sandblasting and varnishing with bi-component epoxy coating, highly resistant to corrosion.
  • Installable above, as well as flush floor to the street surface.
  • Reinforced on and off ramps, for mobile or fixed installation (optional).
  • Weight detection system through oscillating load bars (patented system) with integrated brake / acceleration compensating limits and anti-slip rubber resting plates.
  • Load cells protected from dust and water.
  • Fitted with approval, carried out in factory (to be combined with Dini Argeo indicator).
  • Dust and waterproof wirings and connections, easy to connect and disconnect.
  • Modularity: by adding or removing pairs of modules, the weighbridges can have these lengths: 4,5 m – 9 m – 13,5 m – 18 m – 22,5 (up to 36m by price estimate).
  • Wide range of connectable weight indicators, also functioning with rechargeable battery, which allow to use the weighbridge also without an electrical power supply.
  • 30m long connection cable between DTW and indicators.



OPTIONS AND ACCESSORIES

  • Available upon request with special capacities and divisions.
  • Transport (upon price estimate).
  • Kit of on/off mobile ramps.
  • Angles of crest kit for flush floor installation or for concrete on/off ramps.
  • Dual range CE-M 3000 + 3000e approved (upon price estimate).

Additional information

Model

DTW515A-9, DTW530A-9, DTW930A-9, DTW960A-9, DTW1430A-9, DTW1460A-9, DTW1860A-9, DTW1880A-9, DTW2280A-9

Dimensions

2x (4,50×1,00×0,22), 2x (9,00×1,00×0,22), 2x (13,50×1,00×0,22), 2x (18,00×1,00×0,22), 2x (22,50×1,00×0,22)

Capacity

15000, 30000, 60000, 80000

Division

5, 10, 20, 50

Dual division

'–, 5/10(**), 10/20(**), 20/50(**)

Notes

2 bridges – 4 weighing bars, 4 bridges – 6 weighing bars, 6 bridges – 8 weighing bars, 8 bridges – 10 weighing bars, 10 bridges – 12 weighing bars
