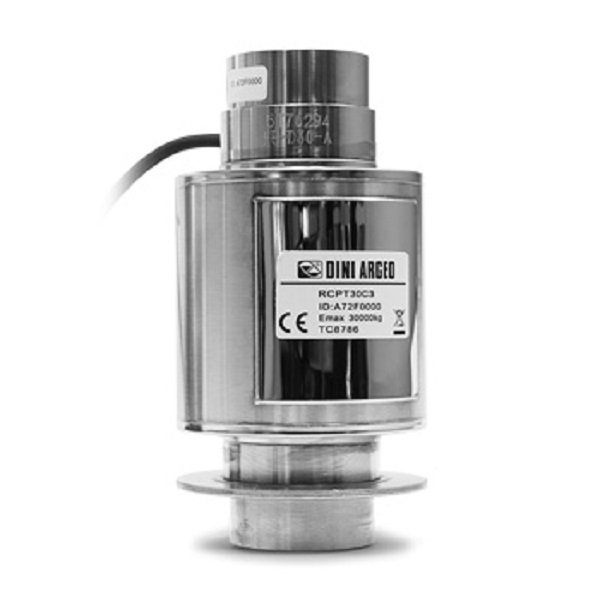

Dini Argeo RCPT Load Cell – Weighbridge, Column, Canister, Compression Type

Call for price

[posbadges]
  • Column load cell for CE-M approved weighbridges, tanks, silos, etc.
  • Special alloy steel body with STAINLESS steel external casing; manufactured with laser soldering.
  • IP68 protection.
  • C3 precision class.
  • Optimized parallel connection
  • Capacity: 20000 TO 50000 kg.
  • Shielded 18m connection cable.

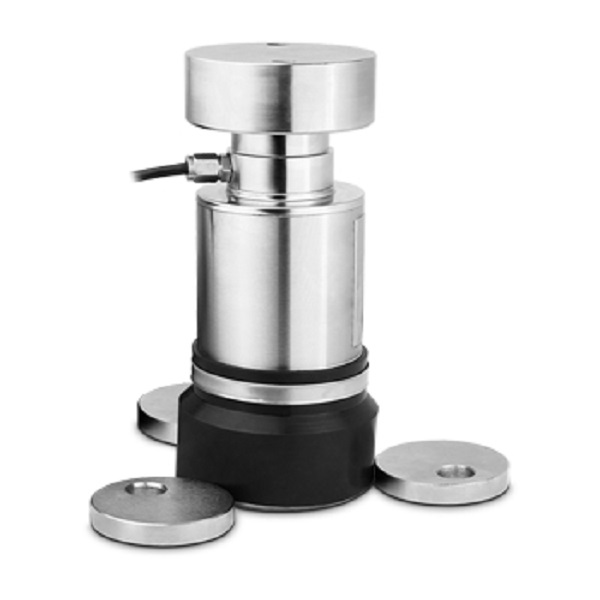

  • Fitted with self-aligned articulated joints, self centering plates and protection washer(version with cups).
GET QUOTATION

Brand:

Dini Argeo RCPT Load Cell – Weighbridge, Column, Canister, Compression Type

Call for price

[posbadges]
  • Column load cell for CE-M approved weighbridges, tanks, silos, etc.
  • Special alloy steel body with STAINLESS steel external casing; manufactured with laser soldering.
  • IP68 protection.
  • C3 precision class.
  • Optimized parallel connection
  • Capacity: 20000 TO 50000 kg.
  • Shielded 18m connection cable.
  • Fitted with self-aligned articulated joints, self centering plates and protection washer(version with cups).
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

Prices for 8 units and more:



  • Minimum load cell verification interval: Vmin = EMax / 10.000
  • Maximum number of load cell divisions: nLC = 3000 (C3)
  • Sensitivity: 2mV/V +/- 0,1%
  • Temperature effect on full scale: 0,002% /°C
  • Temperature effect on zero: 0,002% /°C
  • Compensated Temperature Range: -10°C/+40°C
  • Operating Temperature Range: -30°C/+70°C
  • Creep error after 30 minutes: 0,02% F.S.
  • Excitation voltage from 5 to 15 VDC
  • Input Resistance: 700 ± 20 Ohm
  • Output Resistance: 703 ± 7 Ohm
  • Zero Balance: +/-1% F.S.
  • Insulation Resistance: >5000 MOhm
  • Safe Overload: >150% F.S.
  • Ultimate Overload: 250% F.S.
  • 4-wire shielded cable, 5mm diameter



Applications:

Weighbridges, tanks, silos, etc.

Additional information

Model

RCPT30C3NC, RCPT20C3, RCPT30C3, RCPT50C3

Capacity

20 Ton, 30 Ton, 50 Ton
