Dini Argeo – “Easy Pesa 2GD” series Stainless steel scales , for ATEX 1, 21, 2, 22 zones

Categories: ATEX, Platform Scale

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Platform Size

Clear

Fully stainless steel bench scales, for specific use in ATEX hazardous areas. Powered by a long lasting rechargeable battery which allows an easier installation directly where it’s needed. These scales don’t need a power supply socket in dangerous zone nor ATEX proof power supply cables. Provided with the ATEX declaration of conformity. Ex II 2G IIC T4 Gb X and Ex II 2D IIIC T197°C Db X protection.

Available Capacities: 15 Kg to 300 Kg
FUNCTIONS: Zero, Automatic tare, Presettable tare, Selectable function command, On/Off switching,
SELECTABLE FUNCTIONING MODE: High Resolution Weighing x 10, Net/Gross or lb/kg conversion, Weight totalization, Formula weighing, +/- Checkweighing, Counting (Max. resolution of 1.500.000 divisions.

GET QUOTATION

Brand: Dini Argeo

Dini Argeo – “Easy Pesa 2GD” series Stainless steel scales , for ATEX 1, 21, 2, 22 zones

Categories: ATEX, Platform Scale

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Platform Size

Clear

Available Capacities: 15 Kg to 300 Kg
FUNCTIONS: Zero, Automatic tare, Presettable tare, Selectable function command, On/Off switching,
SELECTABLE FUNCTIONING MODE: High Resolution Weighing x 10, Net/Gross or lb/kg conversion, Weight totalization, Formula weighing, +/- Checkweighing, Counting (Max. resolution of 1.500.000 divisions.

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

Tags: Mobile and Portable Scales, Movable, Platform Weighing Scale, Warehouse Scale

GET QUOTATION

[woocommerce_variations_table]

Approved “single point” STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
ATEX approved load cell with ATEX protection:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga.
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
IP68 Weight indicator for ATEX zones with protection methods according to:
ATEX II 2(2)G Ex ib [ib Gb] IIC T4 Gb for gases.
ATEX II 2(2)D Ex tb [ib Db] IIIC T197°C IP65 Db for dust.
Structure, enclosure and loading plate made in AISI304 satin finish stainless steel.
Adjustable levelling feet with plastic over shoe.
Supplied with support column, height:
- 500 mm in the “Q” models;
- 700 mm in the “X” models.
EC-Type-Examination certificate according to Annex III (ATEX directive). CE-M approvable (OIML R-76 / EN 45501).

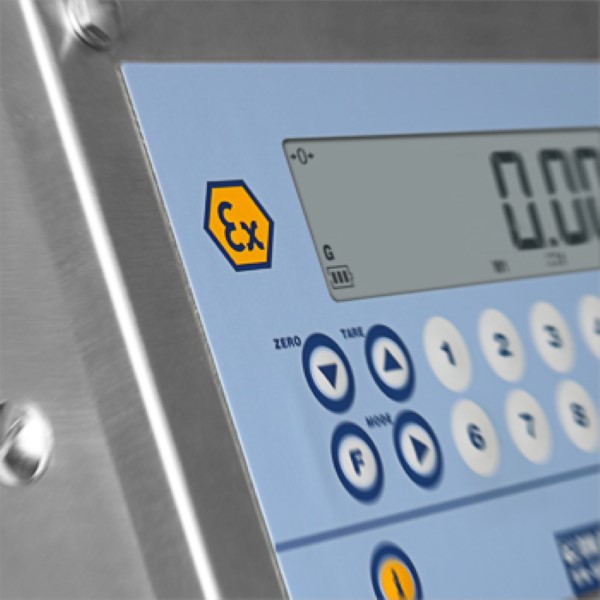

Waterproof 17-key numerical and functional keyboard.
LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures, and with 6 LEDs for showing the active functions.
Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
A/D 24-bit sigma-delta conversion, up to 100 conv./sec. autoselect.
Power supply through external battery pack with 160h operating time. An extra battery pack for continuous use (24/7) is available as option.
Charger included in the supply.

Additional information

Scale Capacity Range (Platform)	200-300 kg, 60-150 kg
Model	EPQI2GD60B, EPQI2GD150B, EPXI2GD60B, EPXI2GD150B, EPXI2GD300B
Capacity / Division	60 kg / 10 g, 150 kg / 20 g, 60 kg / 10 g, 150 kg / 20 g, 300 kg / 50 g
Platform Size	40x40cm, 60x60cm
