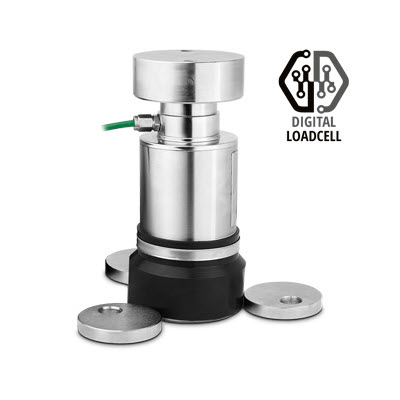

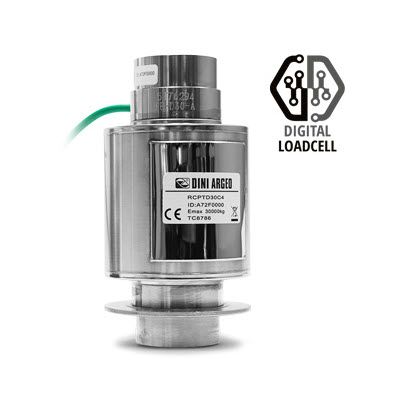

Dini Argeo Digital Column Load Cell “RCPTD” Series

Call for price

[posbadges]

Digital column load cells ideal for approved CE-M weighbridges or silos and tanks.
CAPACITIES (kg): 30000.
OIML R60. C4 precision class.
Special alloy steel body with STAINLESS steel external casing; manufactured with laser solderings. IP68 protection.

GET QUOTATION

Brand:

Dini Argeo Digital Column Load Cell “RCPTD” Series

Call for price

[posbadges]

Digital column load cells ideal for approved CE-M weighbridges or silos and tanks.
CAPACITIES (kg): 30000.
OIML R60. C4 precision class.
Special alloy steel body with STAINLESS steel external casing; manufactured with laser solderings. IP68 protection.

[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

MAIN FEATURES

  • AVAILABLE FOR 3590E TOUCH SCREEN INDICATOR.
  • C4 PRECISION CLASS.
  • SPECIAL ALLOY STEEL BODY with STAINLESS STEEL EXTERNAL CASING; LASER SOLDERINGS.
  • IP68 PROTECTION RATING.
  • CAPACITY 30000Kg.
  • SHIELDED 18m CONNECTION CABLE.
  • TEST CERTIFICATE AVAILABLE UPON REQUEST.
  • APPROVED WITH 3590 TOUCH SCREEN INDICATOR FOR LEGAL-FOR-TRADE WEIGHING SYSTEMS.
  • FITTED WITH SELF-ALIGNED ARTICULATED JOINTS, SELF-CENTERING PLATES AND PROTECTION WASHER.



TECHNICAL FEATURES

  • Resolution for nominal load 60.000d.
  • Combined error on nominal load ± 0,01%.
  • Operating temperature range -10°C/+40°C.
  • Power supply tension from 10 to 18 Vdc.
  • Conversion: 24 bit.
  • Connection RS485.
  • Admissible load: 150% F.S.
  • Shielded cable 4 poles, 5mm diameter.

Additional information

Model

RCPTD30C4-1

Max (kg)

30000
