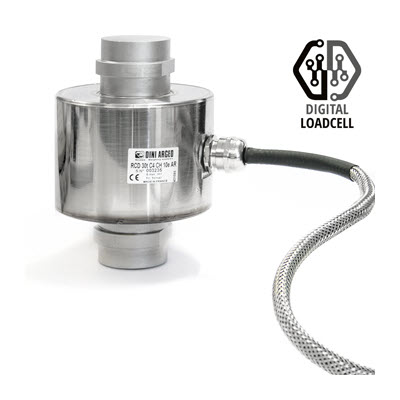

Dini Argeo Digital Column Load Cell, In Stainless Steel, “RCD” Series

Categories: Compression Load Cell, Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Max (kg)

Clear

Digital version of compression load cells, ideal for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, with IP68 protection, 4000 divisions, fitted with “rodent proof” armoured cable.
CAPACITIES (kg): 30000/40000/50000.
OIML R60. C4 precision class.
Load cells with stainless steel body. Degree of protection IP68.
18m Armoured Rodent Resistant Cable, with standard Stainless Steel Armor.
Low Profile Height of only 130mm.

GET QUOTATION

Brand: Dini Argeo

Dini Argeo Digital Column Load Cell, In Stainless Steel, “RCD” Series

Categories: Compression Load Cell, Load Cell

Call for price

[posbadges]

ADD TO CART to buy or to Request for Quotation (RFQ)

Model

Max (kg)

Clear

[showcdownloadbuttoninspp]

[showmdownloadbuttoninspp]

GET QUOTATION

[woocommerce_variations_table]

TECHNICAL FEATURES

METROLOGICAL:

Rated capacity (Cn): 30/40t
Combined error: ± 0,014 %Cn
Temperature effect on zero: 0,0016 %Cn/°C
Temperature effect on sensitivity: 0,0012 %Cn/°C
Creep error (30 min.): 0,021 %Cn

LEGAL METROLOGY OIML R60

Accuracy class: C4
Max. number of intervals (nmax): 4000e OIML
Minimum verification interval (vmin): 10000
Z= Emax/(2xDR): 4000

ELECTRICAL

Nominal range of excitation voltage: 10 – 16Vdc
Rated output: 200000d
Current consumption: 35mA
Conversion type: Delta-sigma
Internal resolution: 24 bit
Converter rate: max. 100 conv./sec.
RS485 interface communication rate: 4800/19200 bit/sec.
Protection against electrostatic discharge according to IEC 61326-1

GENERAL

Service temperature range: -20 ~ +60 °C
Compensated temperature range: -10 ~ +40 °C
Safe load limit: 150% Emax
Ultimate overload: 300% Emax
Protection degree IP68
Load cells with stainless steel body
6-core armoured cable, PVC sheath, 18m length, 9mm diameter.
Nickel plated steel cable gland.
Armoured Anti Rodent Cable with Stainless Steel Armour.
Self-centring spherical bases.

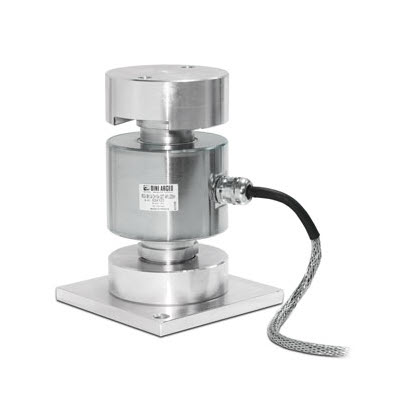

Equipped with anti-rotation system, to be combined with KRCA cups for proper operation.
