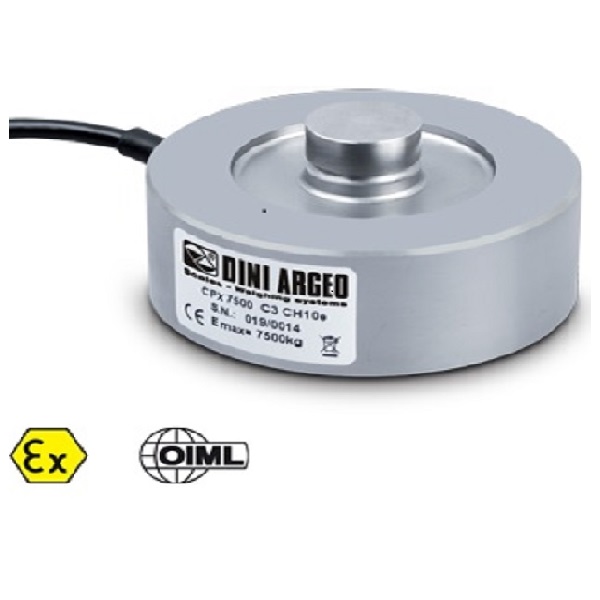

Dini Argeo CPX Load Cell – Compression & Ring Torsion (RTN) Type

Call for price

[posbadges]

Stainless steel compression load cells suitable for weighing tanks and hoppers with the relevant accessories.
CAPACITIES (kg): 250, 500, 1000, 2500, 5000, 7500, 10000, 12500, 15000, 30000, 50000, 100000.
OIML R60, C3 precision class from 2500 to 12500kg.
Stainless steel. IP68/IP69K protection.

  • CAPACITIES FROM 250 TO 100000 kg
  • OIML C3 APPROVED, from 2500 to 12500 kg
  • LOW PROFILE
  • GREAT RESISTANCE TO LATERAL FORCES
  • STAINLESS STEEL CONSTRUCTION
  • IP68 PROTECTION, IP69K UPON REQUEST
  • SHIELDED CONNECTION CABLE
GET QUOTATION

Brand:

Dini Argeo CPX Load Cell – Compression & Ring Torsion (RTN) Type

Call for price

[posbadges]

Stainless steel compression load cells suitable for weighing tanks and hoppers with the relevant accessories.
CAPACITIES (kg): 250, 500, 1000, 2500, 5000, 7500, 10000, 12500, 15000, 30000, 50000, 100000.
OIML R60, C3 precision class from 2500 to 12500kg.
Stainless steel. IP68/IP69K protection.

  • CAPACITIES FROM 250 TO 100000 kg
  • OIML C3 APPROVED, from 2500 to 12500 kg
  • LOW PROFILE
  • GREAT RESISTANCE TO LATERAL FORCES
  • STAINLESS STEEL CONSTRUCTION
  • IP68 PROTECTION, IP69K UPON REQUEST
  • SHIELDED CONNECTION CABLE
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]
  • Minimum load cell verification interval: Vmin = EMax / 10000
  • Full Scale Output: 2mV/V +/- 0,5%
  • Non-Repeatability: 0,01% F.S.
  • Combined Error 0,05%
  • Temperature effect on zero: 0,02% / 10°C
  • Temperature effect on full scale output: 0,02% / 10°C
  • Compensated Temperature Range: -10°C/+40°C
  • Operating Temperature Range: -20°C/+60°C
  • Creep error after 30 minutes: 0,02% F.S.
  • Maximum tolerated excitation voltage: 15 Vdc
  • Input Resistance: 750 ± 10 Ohm
  • Output Resistance: 700 ± 5 Ohm
  • Zero Balance: +/-1% F.S.
  • Insulation Resistance: >5000 MOhm
  • Safe Overload: 120% F.S.
  • 4-wire shielded cable, 5 mm diameter:
    – 5 m long for CPX 250…5000 versions;
    – 10 m long for CPX 7500…100000 versions.



Applications

Tanks and hoppers

Additional information

Model

CPX250, CPX500, CPX1000, CPX2500, CPX5000, CPX7500, CPX10000, CPX12500, CPX15000, CPX30000, CPX50000, CPX100000

Capacity

250 kg, 500 kg, 1000 kg, 2500 kg, 5000 kg, 7500 kg, 10000 kg, 12500 kg, 15000 kg, 30000 kg, 50000 kg, 100000 kg
