Brand: Dacell
Categories: Indicators & Controllers, Weighing Controller
Call for price
Brand: Dacell
Categories: Indicators & Controllers, Weighing Controller
Call for price
The products have designed specifically to operate with strain gauge sensors such as Fast- measurement of Load cell, Pressure Transducer, LVDT, etc. The setup sequence is simple and quick using four push buttons only.
| Specifications | Accuracy |
|---|---|
| Load cell excitation | 10VDC±5%, 320mA |
| Input Signal | 0.5 ~ 3.0mV/V |
| A/D converting speed | 200times/sec |
| A/D converter resolution | 1/520,000 counts(19bits), Δ∑ |
| Non-linearity | 0.01% of full scale |
| Zero adjustment range | -0.6mV~42mV |
| Display Unit | 7 segment, 20.0mm(H)×13.0(W)mm |
| Annunciator | steady, zero, tare, gross, auto, print, hold,Interface |
| Decimal point position | 0, 0.0, 0.00, 0.000 |
| Keyboard | Number key and function key 12 PCS. |
| Temperature-drift | zero ±20PPM/℃, span ±20PPM/℃ |
| Non-linearity | 0.01% of full scale |
| Rear panel | Loadcell input : 5pin connector External control : 12pin input terminal (zero, tare,tare reset/hold/print, gross/hold reset/subprint,Current loop, RS232C) control relay output : 7pin terminal |
| Power | SMPS Free Voltage (85V~265V) |

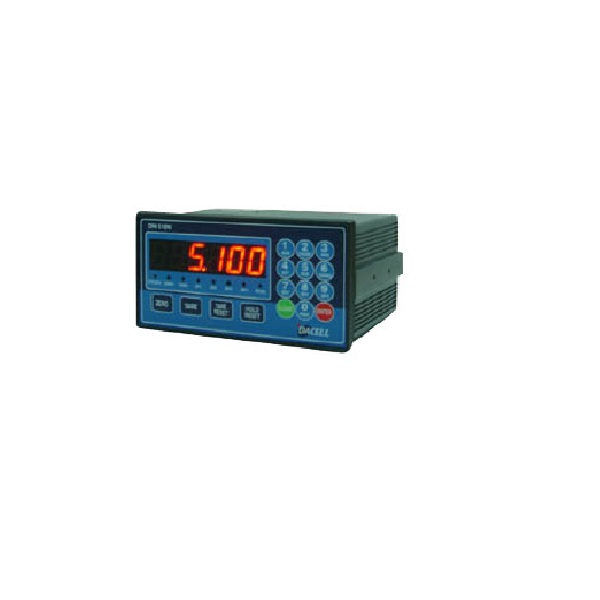

| Model | DN510N |
|---|---|
| Description | DACELL – Weight Indicator |
