Brand: Rice Lake
Categories: Indicators & Controllers
Call for price
Call for price
Tags: Petrascale

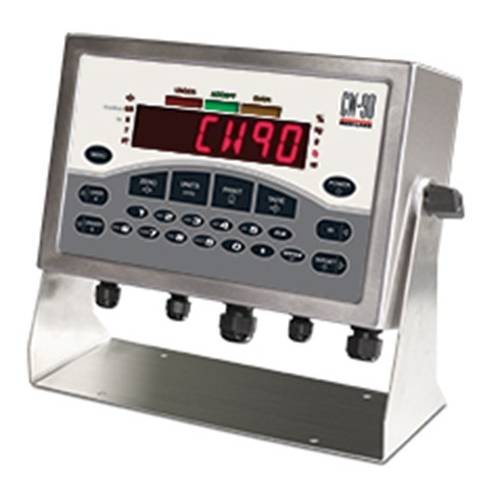

Ease of use, real-time data collection and rugged, stainless steel construction make the CW-90 digital weight indicator the equipment of choice for operators, quality control and maintenance departments.
The configuration menu of the CW-90 is accessible through the front keypad, eliminating the need to open the back of the indicator and expose the unit to moisture or contaminants. Access to these keypad controls can be limited to meet the operator’s needs. The CW-90 will store detailed information for up to 50 separate IDs, allowing for easy recall of previously saved information. An adjustable contrast display is visible in any environment.

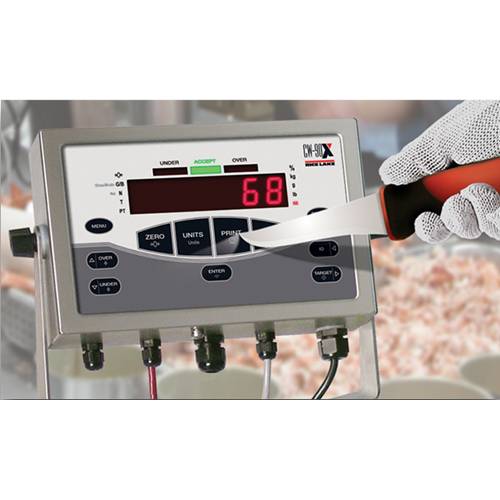

Made to withstand sharp knife-point contacts as well as contaminants and liquids, Rice Lake’s CW-90X features an amazingly tough piezo keypad. Its extra-strength material is the most durable in the industry, ensuring your scale will continue to work through any challenge.
Manufacturers with harsh production environments look for the IP69K rating to provide the highest level of
protection available. The CW-90X uses a hermetically sealed load cell and stainless steel indicator, which have both earned IP69K rating, guaranteeing protection from repeated high temp/high pressure washdowns. Complete with 304 stainless-steel construction, the CW-90X will help meet all of your HACCP and food industry requirements.
Power – AC: Line voltages: 115-230 VAC Frequency: 50-60 HzPower Consumption: 1.5 A at 115 VAC (8 W) 0.75 A at 230 VAC (8 W) Excitation Voltage: Analog Signal Input Range: Analog Signal Sensitivity: A/D Sample Rate: Resolution: |
System Linearity: ± 0.01% full scaleDigital I/O: Four channels on CPU board Circuit Protection: Status Annunciators: Display: Keys/Buttons: |
Temperature Range: Certified: 14ºF to 104ºF (-10ºC to 40ºC)Rating/Material: CW-90: IP66, stainless steel CW-90X: IP69K, stainless steel Warranty: Approvals: |
CW-90/90X Indicator Dimensions | |||||
---|---|---|---|---|---|
A | 9.5 in (241 mm) | D | 3.12 in (79 mm) | G | 3.75 in (95 mm) |
B | 10.02 in (255 mm) | E | 6.00 in (152 mm) | H | 4.00 in (102 mm) |
C | 11.24 in (285 mm) | F | 8.57 in (218 mm) |
