Brand:

BEL Engineering – Biological Microscope – BIO2- AC-LED

Categories:

Call for price

[posbadges]

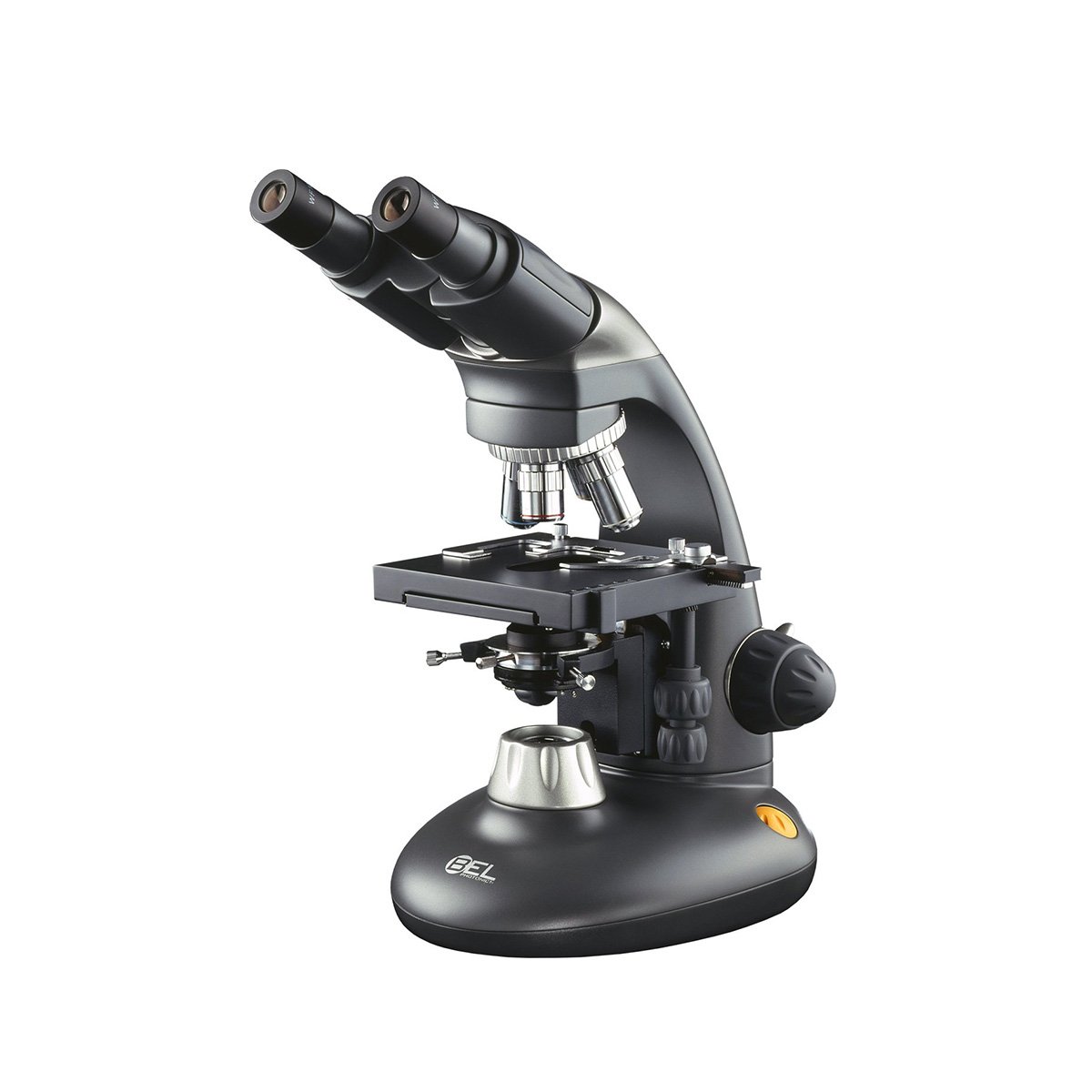

  • BIO2 series is an innovative line of biological microscope with refined style and with an optical system suitable for most laboratory microscopy applications.
  • In fact these biological microscopes mount as standard a Koehler illuminator, widefield eyepieces, 5 places inward tilt nosepiece, halogen bulb or LED.
  • Can accept dark field and phase contrast as accessories. All this, combined with an refined Italian design, ergonomic and steady aluminum stand and with a choice of achromatic / semiplan / plan-achromatic DIN16Omm or INFINITY objectives, give to these microscopes the capability to match a wide range of applications from educational use to routine laboratory work.
GET QUOTATION

Brand:

BEL Engineering – Biological Microscope – BIO2- AC-LED

Categories:

Call for price

[posbadges]
  • BIO2 series is an innovative line of biological microscope with refined style and with an optical system suitable for most laboratory microscopy applications.
  • In fact these biological microscopes mount as standard a Koehler illuminator, widefield eyepieces, 5 places inward tilt nosepiece, halogen bulb or LED.
  • Can accept dark field and phase contrast as accessories. All this, combined with an refined Italian design, ergonomic and steady aluminum stand and with a choice of achromatic / semiplan / plan-achromatic DIN16Omm or INFINITY objectives, give to these microscopes the capability to match a wide range of applications from educational use to routine laboratory work.
[showcdownloadbuttoninspp]
[showmdownloadbuttoninspp]
GET QUOTATION
[woocommerce_variations_table]

Name                           :BIO2

Optical system           : Built-in transmitted Koehler illumination with field diaphragm

Illumination               : 6V 20W Halogen bulb or High intensity LED. Adjustable Intensity

Eyepieces                    : Wide field WF10x/18mm

Objectives                   :   –AC ACHROMATIC 4x/0.1;  10x/0.25;  40x/0.65;  100x/1.25 (oil immersion)

Focusing                     :  Macrometric and micrometric coaxial knobs on both sides (0,002mm). Upper limit excursion adjustment. Torque adjustment on coarse focus knob

Revolving nosepiece :Reversed quintuple nosepiece, rotating and locking at every objective.

Type Binocular Trinocular
Tube inclination 30° tilted, 360° rotable

Observation tube :

Interpupillary distance adjustment 55-75mm, dioptric difference adjustment ± 5mm
Light division 70% : 30%

Stage                       : 135x125mm. Excursion XY: 75x35mm (div 0,1mm). Coaxial knobs on right side

Condenser             :  Abbe N.A. 1,25. Equipped with diaphragm and filter seat. Height and centering are adjustable.

Additional information

Model

BIO2T – AC-LED
