M5-iThermo balances are moisture analyzers with large 5’’ color touchscreen display that gives a user-friendly access to all the moisture analyzer’s advanced applications and internal databases.
The user has easy and intuitive access with fast programming of drying cycles, thanks to icon-driven menus.
Features:
- Electromagnetic force restoration weighing system (A64M and 163M)
- High resolution load cell weighing system (163L and 62L)
- Halogen-infrared lamp
- External calibration
- Large 5’’ color touchscreen 800×480 display
- RS232 serial interface
- Drying resolution 0,001% (-A64M), 0,01% (-163M and -163L), 0,1% (-62L)
- Drying modes:Time mode (1-99 min.),Autostop % or absolute autostop in grams, Manual
- Live Graph of humidity content changing

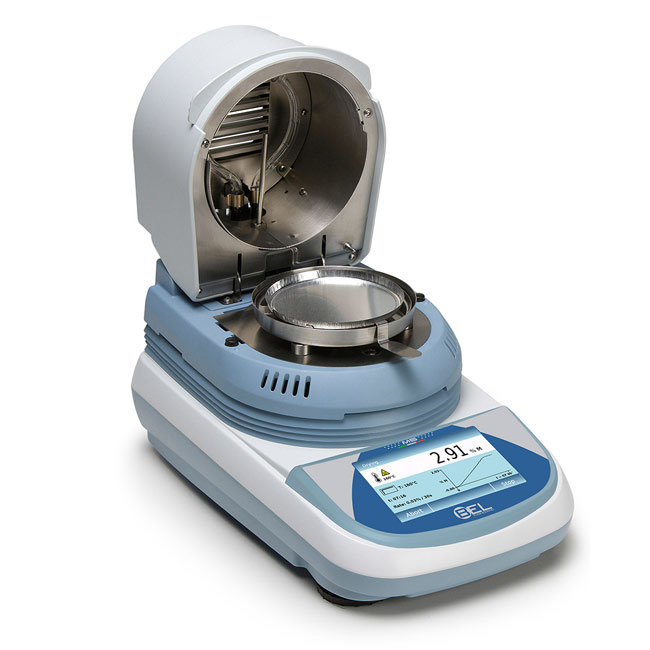

BEL M5-iThermo – Moisture Analyzer (Moisture Analyzer Balance )
The BEL M5-iThermo is a electronic digital Moisture Analyzer Balance with advance function that can be used by its easy and clear touch screen
This moisture analyzer used in food and chemical industry works with thermogravimetric principal; It consists of a weighing unit and a heating unit (infrared technology) and is used to determine the moisture content of a sample with the loss on drying principle. Consider them a quality control tool.
Moisture analyzers are sometimes called as “moisture meters” or “moisture balances”
The many on-board functions already included, the possibility of calibrating the internal thermometer using the optional KIT (STCi-02), up to 6 operating languages, the large 5’’ inch display and the RS232 serial output close the circle of a complete product, reliable and truly convenient. The models in the family allow to reach up to 0,001% drying resolution.
- Temperature range:35-160°C, step of 1°C
- Temperature Profiles: Standard, fast, mild, steps
- Results in: Humidity %, Dry residue %, ATRO %, Weight
- Test results complete of full drying cycle Graph
- Up to 10 hot keys for fast recall of drying cycles from internal database
- Default database stored already with more than 30 products
- Saving results with test reports and drying graphic up to 3000 records, for each user
- Customizable settings for up to 10 users with the possibility of password protection
- Serial output for connection to printer, USB port for export or import database, test results, etc.
Technical data:
- Span drift (+ 10…+ 30 °C): +/- 3ppm/°C [M5-Thermo A64M]; +/- 4ppm/°C [other models]
- Dimensions LxWxH (mm): 345x215x235
- Maximum dimension of container on the pan: 100mm (Ø) x 25mm (height)
- Power supply: AC 220-240 V (at request AC 110 Volt) 50/60Hz; plugs EU,UK
- Power consumption: rating 430 VA;
- Heater: 230V AC 50/60Hz, 400Watt
- Net Weight: 6.1Kg (A64M and 163M)
- Net Weight: 4.7Kg (163L and 62L)
Petra ME – Moisture Analyzer Balance Supplier
As a part of products range of laboratory balances we offer sales and service of different types and models of Moisture Analyzer in UAE
| Model | M5Thermo A64M | M5Thermo 163M | M5Thermo 163L | M5Thermo 62L |
| Capacity | 60g | 160 g | 160 g | 60g |
| Resolution | 0.1mg | 0.001g | 0.001g | 0.01g |
| Calibration | External | |||
| Pan size | 100mm Samples Pan | |||
| Repeatibility | 0.1mg | 0.001g | 0.001g | 0.01g |
| Linearity | ± 0.0003g | ± 0.003g | ± 0.003g | ± 0.03g |
| Response time (sec.) | ≤3 | ≤3 | ≤4 | ≤3 |
| Moisture Readability | 0.001% |
0.01% |
0.01% |
0.1% |
| Moisture Repeatibility | ± 0.18% (~2g sample) |
± 0.18% (~2g sample) |
± 0.20% (~2g sample) |
± 0.50% (~2g sample) |
| Verification | N/A | |||
| Temperature Range | 35-160°C, step of 1°C | |||
| Drying Modes | Time (1-99min) / Autostop % / Absolute autostop / Manual | |||
| Temperature Profiles | standard / fast / mild / steps | |||
| Display Of Results | Moisture % , Dry residue % , ATRO, Weight | |||
| Printout Of Results |
Current results, GLP, full drying cycle graph, calibration data |
|||
| Max Sample Height | 25 mm | |||
| Heater | halogen-infrared lamp/ 400W | |||
| Minimum Load | 10 mg | 20mg | 20mg | 500mg |
| Display |
5′ COLOR TOUCH-SCREEN |
|||
| Tare Range (Subtractive) | 60 g | 160 g | 160 g | 60 g |
| Span Drift In +10…+30°c | ± 3 ppm/°C | ± 4 ppm/°C | ± 4 ppm/°C | ± 4 ppm/°C |
| Interface | RS232, USB | |||
| Database Capacity |
3000 x each user |
|||
| Working Temperature | 5 – 35°C | |||
| Power Supply | 220-240Vac. (at request 110V) 50/60Hz. | |||
| Power Consumption (Max) | 430VA | |||
| Calibrates With (Class) | 20 g (E2) |
100 g (F1) |
100 g (F1) |
20 g (F1) |
| Balance Dimensions (W X L X H) | 215 x 345 x 235 mm | |||
| Net Weight / Gross Weight, Approx. | 6.3 / 8.2 Kg | 6.3 / 8.2 Kg | 4.9 / 6.8 Kg |
4.9 / 6.8 Kg |
| Package Size (W X L X H) | 290 x 420 x 360 mm | |||
