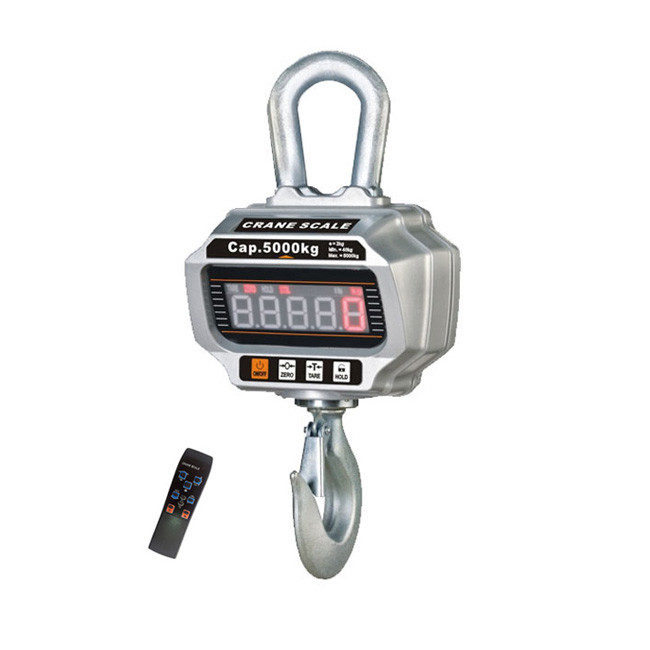

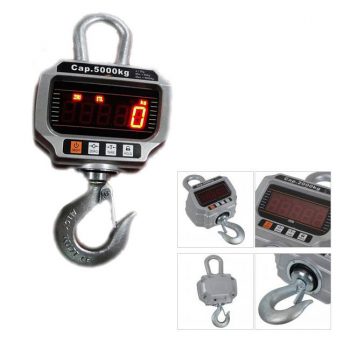

SENS OCS-T is an established, economical choice for many medium to heavy capacity crane scale needs, and offers a marine-grade alloy enclosure that’s ideal for fishing and marine environments. No other crane scale compares with the advanced features and benefits provided by the SENS CS-T.
Features:
- High Strength load receptor
- Includes infra-red remote control
- Body Structure: Aluminum die-casting Case with American standard Fixed shackle and American standard rotatable 360 Degree Swivel hook
- High quality Alloy Steel Loadcell
- Available Capacities: 2000 to 5000 Kg
- Waterproof panel
- Display: 35 mm LED Display
- High Capacity Rechargeable battery
- Units: Kg/ Lb./ N
- Resolution (Division) switch
- Wireless hand held indicator with advance functions and RS232/Printer interface
- Functions: Zero, Digital calibration, Tare,3-Point Calibration, Hold, Unit Switch, Battery Supervision, Resolution switch, Overload Alarm / record, Gravity Acceleration Set, Total Accumulation, Auto Zero, Auto Power off, anti-motion, illumination level, Gross & Net weight
- Power: AC/DC with Rechargeable battery
- Over Load Protection and alarm
The scale has a large bright red LED clearly visible from long distances and benefits from a long life internal 6V/4Ah rechargeable battery

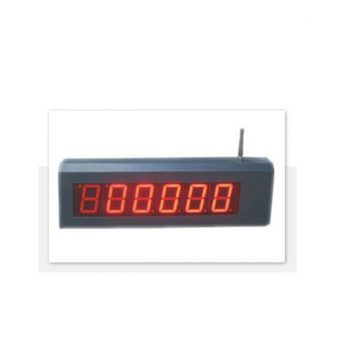

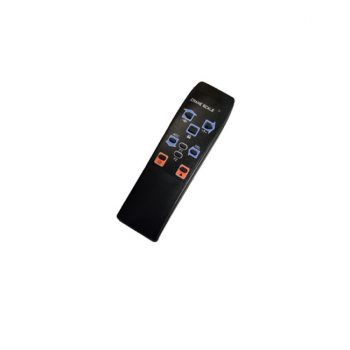

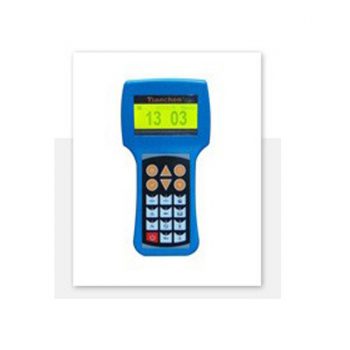

An infrared remote control comes as standard and enables easy operation at a safe distance from the crane scale. The Wireless Handheld Display makes things easier to view it from anywhere.
Hold, tare and zero features come as standard and there is an easy to use digital calibration routine to ensure weighing accuracy. This latest design of crane scale is robust, portable, accurate.
- Heavy Duty Crane Scale
- Easy to use
- Great Safety
- Strong Reliability
- Broad Applicability
- Complete function.
- Includes infra-red remote control
- Body Structure: Aluminum die-casting Case with American standard Fixed shackle and American standard rotatable 360 Degree Swivel hook
- High quality Alloy Steel Loadcell
- Available Capacities: 2000, 3000 & 5000 Kg
- Waterproof panel
- Display: 35 mm LED Display
- High Capacity Rechargeable battery
- Units: Kg/ Lb./ N
- Resolution (Division) switch
- Wireless hand held indicator with advance functions and RS232/Printer interface
- Zero
- Digital calibration
- Tare
- 3-Point Calibration
- Hold
- Unit Switch
- Battery Supervision
- Resolution switch
- Overload Alarm / record
- Gravity Acceleration Set
- Total Accumulation
- Auto Zero
- Auto Power off
- Anti-motion
- Illumination level
- Gross & Net weight
- Power: AC/DC with Rechargeable battery
- Over Load Protection and alarm
| Model | OCS-T-2 | OCS-T-3 | OCS-T-5 | |
| Capacity x Readability | 2000 Kg
1 kg |
300Kg
1 Kg |
500Kg
2Kg |
|
| Legal for Trade |
Class III Equivalent to OIML R76 |
|||
| Digits | 5 Digit | |||
| Display & Size | 38 mm LED | |||
| Tare Range | 100% F.S. | |||
| Auto Zero | ±20% F.S. | |||
| Manual Zero | ±4% F.S. | |||
| Zero‐tracking | 0.5e/s | |||
| Reading Stable Time | ≤10 seconds | |||
| Overload | 100% F.S. 9e | |||
| Max. Safety Load | 120% F.S. | |||
| Ultimate Load | 400% F.S. | |||
| Keys | Power, Tare, Zero, Hold | |||
| Functions | Wireless Hand Held indicator, Zero, Digital calibration, Tare, 3-Point Calibration, Hold, Unit Switch, Battery Supervision, Resolution switch, Overload Alarm / record, Gravity Acceleration Set | |||
| Operating Temp | – 10 °C ~ 40 °C | |||
| Operating Humidity | 20℃ ≤90% | |||

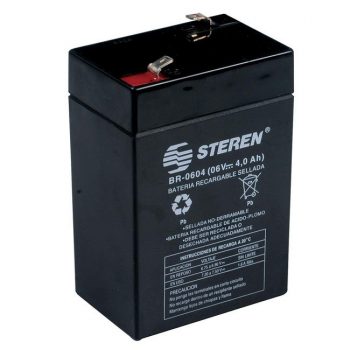

| Battery | 6V/4Ah lead acid rechargeable battery. | |||

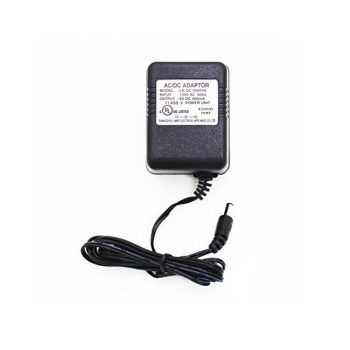

| Adaptor | 100~220VAC 50/60Hz input , 7.2VDC/1000mA output | |||
| Battery Life | >80 hours | |||
| Remote Distance | 10 Meter | |||
| Dimensions | 61x31x30cm | |||
| Product Weight (approx.) | 11.0Kg Net Weight, 14 Kg Gross Weight | 12.5 K Net Weight, 18 Kg Gross Weight | ||
| Warranty | 3 Years | |||
