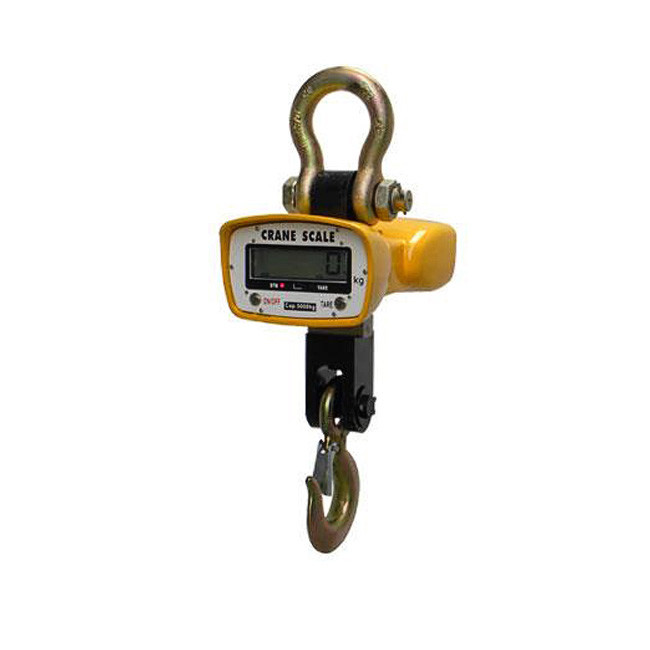

The Heavy duty crane scale is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, whether used as conventional crane weighed or to measure force.
OCS SW is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator.
OCS SW is compatible with the concept of portable, print and easy to operate. Shoulder bag style leather case, easy to carry, suitable for protected outdoor use., calibration is easier with 580 indicators.
- Enclosure: NEMA 12/IP54 powder coated Foundry Cast Aluminum.
- Multi-weighing units: Kg, lb are selectable, kg is default unit.
- Multi-function operation: are, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller.
- User-friendly design: Large red 5 digit LED display.
- Low battery indication, Automatic turn off, power-saving function.
- Accuracy: According to OIML class Ⅲ.
- DISPLAY: 30 mm (1.2″) 5digits LCD/LED.
- Battery: Fully sealed Lead-Acid battery, 6V/7Ah, can reach 70hours continuous working.
- Adapter: DC 9V/1000mA
- Ultimate Load: 400% of capacity.
- Operation temperature: -20℃ to 50℃
- Gravity regulation: The acceleration of gravity can be regulated through wireless indicator according to different places value.
- Multi options: RS-232-continuous or on demand data output, user-selectable Wireless big screen 3″, 5″, wireless handheld indicator 180, 280 380,and 580 can match with the scale, user- selectable.
- RF wireless palm indicator. (Optional)
- 580 Indicator communications (Optional): Both RS232 serial port and USB port solve most laptops without serial port problem. with the Everight company’s PC host computer software, not only display weigh value and stable information on the PC, can also enter company’s name, complete storage, print query and other functions
- Antenna: Internal antenna for Wireless indicators and printer
