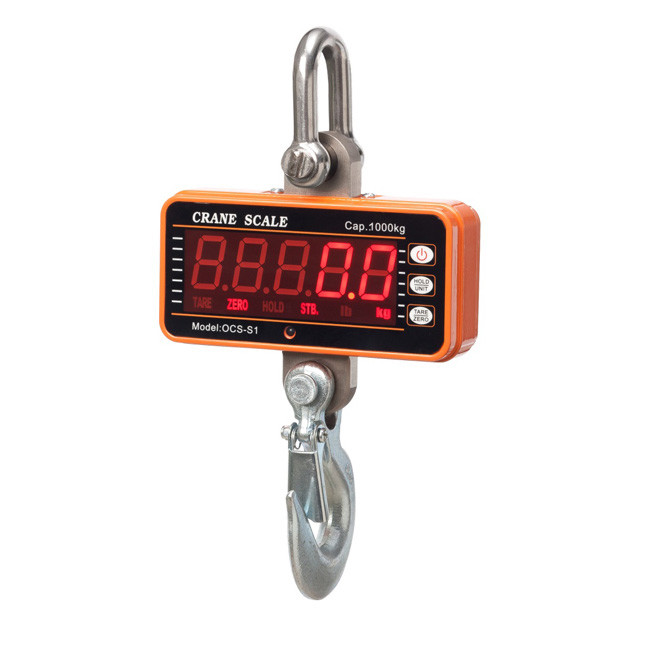

OCS-S1 hanging/crane scale provides the most efficient, simple solution to suspension weighing.
Features:
- Portable Compact Crane Scale
- Lightweight, highly accurate crane scale

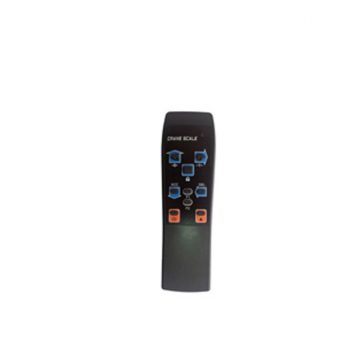

- Includes infra-red remote control
- Body Structure: Aluminum die-casting Case with Stainless Steel Shackle and Alloy steel hook
- Available Capacities: 100 to 1000 Kg
- Waterproof panel
- Display: LED Module Display
- Long Battery Life
- Units: Kg/ Lb./ N
- Functions: Units Conversion, Hold, TARE, Zero, Calibration, Auto Zero, low battery, Auto Power Off
- Battery powered (4x AA batteries)
- Over Load Protection and alarm
The OCS-S1 is a hanging/crane scale that has fast become one of our best-selling crane scales. Constructed of aluminium it is a hardwearing and reliable crane scale which is built to last. With capacities ranging from 100kg to 1 ton it is suitable for a wide range of applications: there is a weighing solution for everybody.
To ensure that the OCS-S1 is always highly accurate and reliable an overload alarm is fitted which will sound when the scale is reaching its maximum load. An infra-red remote control is provided with this scale making it easy to operate the scale from a safe distance. The hook and shackle of the OCS-S1 is stainless steel which provides strength and durability.
Additional features such as auto-power off, and auto-dim, which will lower the brightness on the indicator, prolongs the battery life even more!
Tare, Zero and Hold features ensure that reliable and accurate readings are always provided. The scale has a large, bright red LED display which makes the weight reading easy to see from distances or in poorly lit environments.
- Portable Compact Crane Scale
- Lightweight, highly accurate crane scale
- Includes infra-red remote control
- Great Safety
- Strong Reliability
- Broad Applicability
- Complete function.
- Body Structure: Aluminum die-casting Case with Stainless Steel Shackle and Alloy steel hook
- Available Capacities: 100 to 1000 Kg
- Waterproof panel
- Display: LED Module Display
- Long Battery Life
- Units: Kg/ Lb./ N
- Units Conversion
- Hold
- TARE
- Zero
- Calibration
- Auto Zero
- Low battery
- Auto Power Off
- Battery powered (4x AA batteries)
- Over Load Protection and alarm
| Model | OCS-01-S1 | OCS-03-S1 | OCS-05-S1 | OCS-1-S1 | |
| Capacity x Readability | 100 Kg
0.05 kg |
300Kg
0.1Kg |
500Kg
0.2Kg |
1000 Kg
0.5 Kg |
|
| Legal for Trade |
Class III Equivalent to OIML R76 |
||||
| Digits | 6 digits (weight) | ||||
| Display & Size | LED , 25.4 mm Ultra bright LED | ||||
| Tare Range | 100% F.S. | ||||
| Auto Zero | ±20% F.S. | ||||
| Manual Zero | ±4% F.S. | ||||
| Zero‐tracking | 0.5e/s | ||||
| Reading Stable Time | ≤10 seconds | ||||
| Overload | 100% F.S. 9e | ||||
| Max. Safety Load | 120% F.S. | ||||
| Ultimate Load | 400% F.S. | ||||
| Keys | Power, Hold/unit, Tare/Zero | ||||
| Functions | Zero Tare In/Tare Out, Hold, Auto Power off Battery
Supervision, Overload Alarm, Unit Switch |
||||
| Operating Temp | – 10 °C ~ 40 °C | ||||
| Operating Humidity | 20℃ ≤90% | ||||
| Power | 4*AA battery | ||||
| Battery Life | >100 hours | ||||
| Dimensions | 280 x 150 | ||||
| Product Weight (approx.) | Net Weight : 620 gm | ||||
| Warranty | 3 Years | ||||
