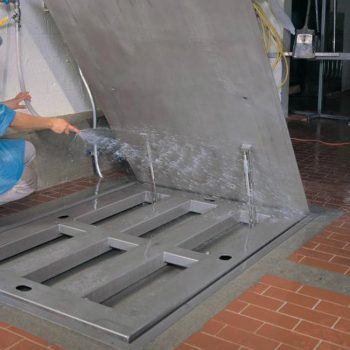

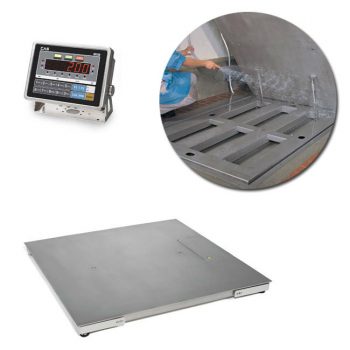

CAS CI200 series is designed for static check-weighing operations along with other bench weighing applications from general purpose to wash-down. Suitable for use in wet and harsh industrial environments due to its fully stainless steel construction that offers durability and cleanliness.
Features:
-
- Waterproof Floor Scale
- Available Capacities: from 3000 & 5000 Kg
- Display: 25mm LED
- Body Structure:

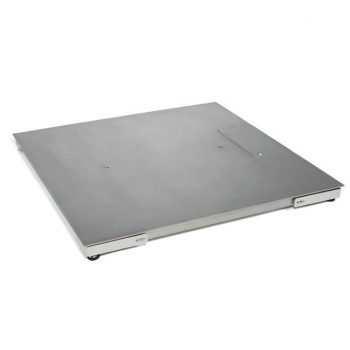

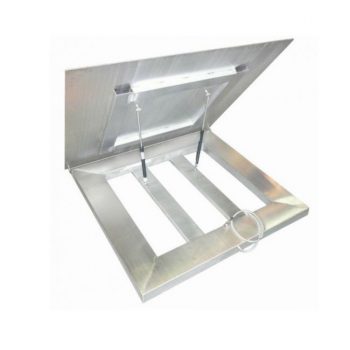

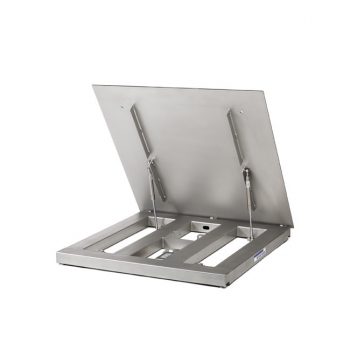

-Platform: Heavy duty, low profile, single deck, Stainless Steel 304
-Indicator: Waterproof Wash-down Stainless Steel IP67, Wall/Desk Mount kit Included
- Load Cells: 4 nos. of standard OIML Stainless steel shear beam type
- legs: 4 height adjustable swivel Stainless steel and rubber feet
- 5m cable
- Selectable Units: Kg/ Lb.
- Functions: Unit Conversion, Hold, Accumulation, TARE, Net, Gross, Zero, Check Weight, Auto Calibration, Time & Date, Auto Zero, livestock stabilization, Illumination Level, Auto off, ID capabilities, Print Format, programmable Special function
- Interface: Serial RS232
- AC/DC adaptor 110-240v with rechargeable battery
- Over Load Protection with alert

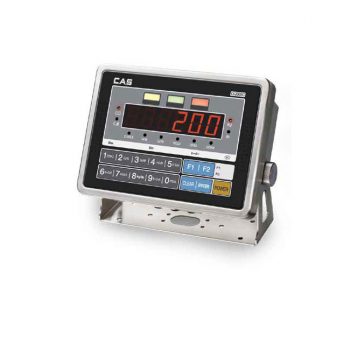

CAS CI-200SC Digital Check-Weigh Indicator series is a compact weighing Indicator with stainless steel housing (IP67). LCD display with check-weigh lights for static check-weighing scales.
Platform Structure is Waterproof Wash-down Stainless Steel and 6 wire and 4 wire load cell support and PC command mode. Applicable for various weighing applications, with the added flexibility of manually setting functions via numeric keys. The CI-200SC series has an internal rechargeable battery and is highly portable and ideal for wet & harsh environments.
The CI-200 Series, a family of digital indicators providing full featured versatility and dependability at an economical price. A wide array of standard features include either 304 stainless steel IP67 rated or hardened plastic NEMA 12 enclosures, AC or DC operation, choice of dry cell or rechargeable battery, full function numeric keypad, ID capabilities, and much more.
- Waterproof Platform Scale
- 72 Hrs of continuous use (6V4Ah Sealed Batteries)
- Available capacities: 3000 & 5000 Kg
- Brighter and Clear LED Display
- 3 colored check-weighing lights
- IP67 grade Stainless steel structure
- Number Key & Function Key applied
- High Speed A/D conversion speed (80 times/sec)
- Built-in Chargeable battery
- Selectable Units: Kg/ Lb.
- Hold
- TARE
- Net
- Gross
- Zero
- Check Weight
- Auto Calibration
- Auto Zero
- Time & Date
- Livestock stabilization
- Illumination Level
- Auto off
- ID capabilities
- Print Format
- Programmable Special function
- Interface: Serial RS232
- Load Cells: 4 nos. of standard OIML Stainless steel shear beam type
- Legs: 4 height adjustable swivel Stainless steel and rubber feet
- 5m cable
- Legal for trade
- Great for all type of Industries
| Model | CI-200S-A-1010-3 | CI-200S-B-1212-5 | CI 200S-C-1515-5 | |
| Capacity x Readability | 3000 Kg
200 gm |
5000 Kg
500 gm |
5000 Kg
500 gm |
|
| Resolution | Internal Degradability: 1/520,000
External Degradability : 1/10,000, (1/30,000 Non approval) |
|||
| Approvals | NTEP COC# 11-026 | |||
| Loadcell Input voltage | DC 5V | |||
| Loadcell connection | 8 @ 350 ohm / 16 @ 1000 ohm | |||
| Zero Calibration | 0~2 mV/V | |||
| Input Sensitivity | Over 2.0μV/D (OIML,NTEP), 0.5 μV/D(Non approval) | |||
| Digits | 6 digits (weight) | |||
| Display | 6 Segment 1 inch / 25 mm LED
3-color weight distinguishing LED (CI-200SC) |
|||
| Display Designators | ZERO, TARE, GROSS, NET, STABLE, UNIT | |||
| A/D Conversion speed | 80 times/sec | |||
| Water Proof Grade | IP67 | |||
| Load Cell | 4 nos. of standard OIML Stainless steel shear beam type | |||
| Keys | 10 numeric keys, 2 function keys | |||
| Functions | Unit Conversion, Hold, Accumulation, TARE, Net, Gross, Zero, Check Weight Auto Calibration, Time and date, Auto Zero, livestock stabilization, Illumination Level, Auto off, ID capabilities, | |||
| Interface | RS-232C | |||
| Operating Temp | -10°C ~ 40°C / 14°F ~ 104°F | |||
| Power | DC 12V , AC 100~240 V adaptor, 6V battery | |||
| Battery Life Time | Approx. 26 hours | |||
| Battery charging time Approx. | Approx. 12 hours | |||
| Platter Size (CM) | 1.0×1.0 | 1.2×1.2 | 1.5×1.5 | |

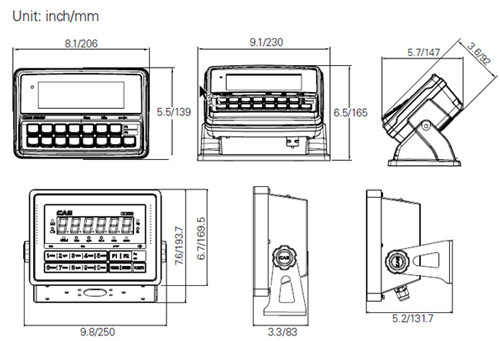

| Dimensions (CM) | 100x100x10 | 120x120x10 | 150x150x10 | |
| Product Weight (approx.) | 120 kg | 150 kg | 180 kg | |
| Warranty | 1 Year | |||
