The Dynamometer is the most efficient tension load cells which is manufactured with special and advance features to handle all type of requirements for heavy industrial usage.
Features:
- Dynamometer
- Body Structure: Aluminum
- Waterproof keypad
- Display: 25mm LCD display with backlight
- Units: Kg/ Ton/ Lb./ N/ kN
- Functions: Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation, Calibration, Auto Zero, low battery alert, Illumination Level, Auto off, Programmable Set-Point, gravity acceleration
- AA battery power supply
- Over Load Protection and alarm

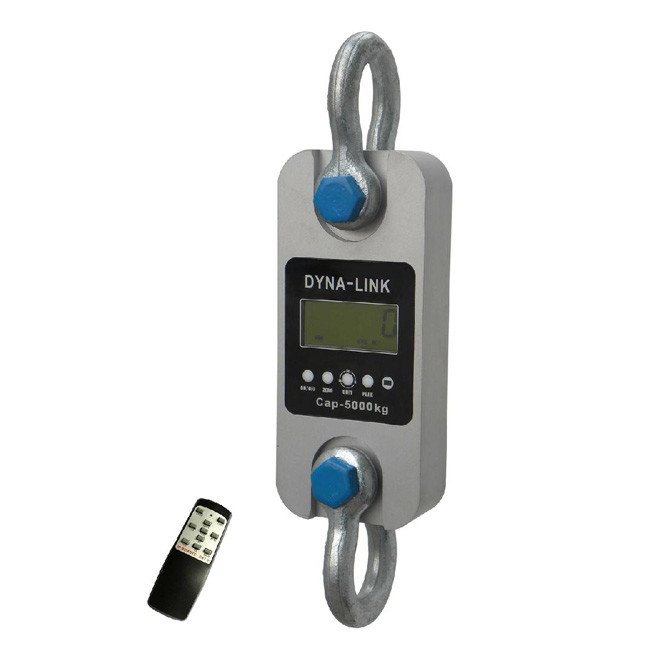

DL – R Dynamometer is an extremely well-built instrument for industry use, as a standard wireless tool offer universal applications, whether used as conventional crane weighed or to measure force,

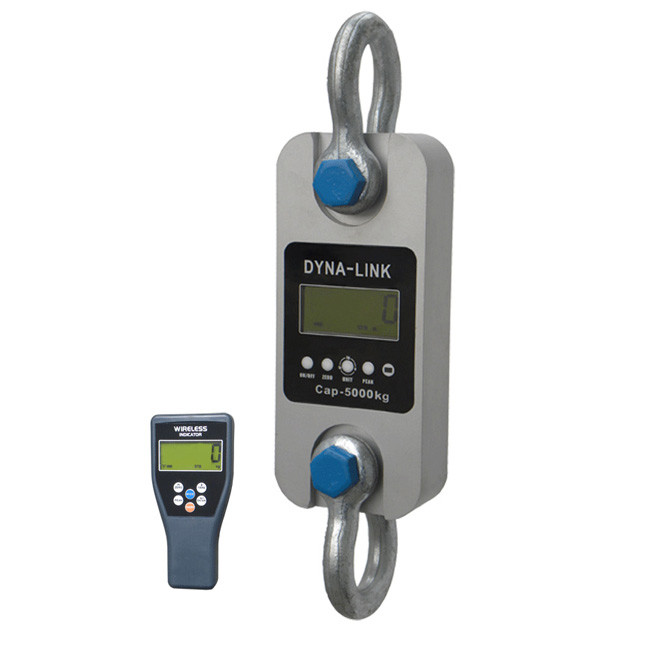

DL-W3 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with wireless handheld indicator.

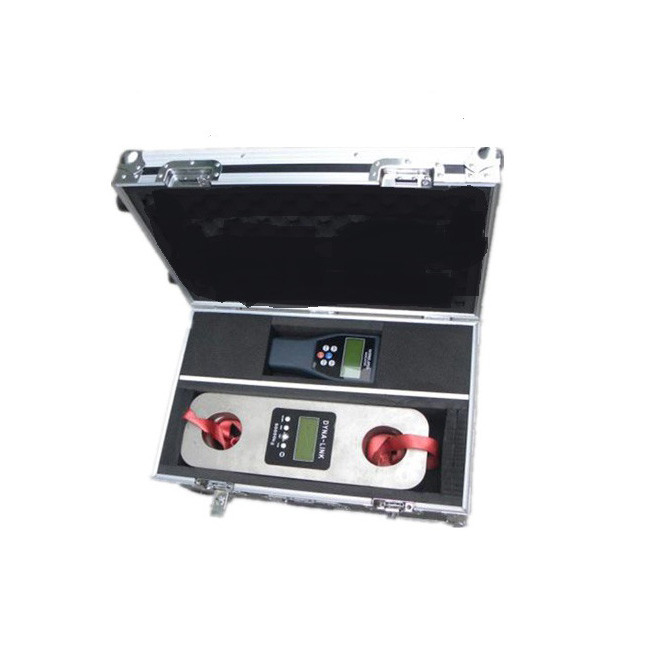

DL-W5 wireless dynamometer is the latest design, compatible with the concept of portable, print and easy to operate. Shoulder bag style leather case, easy to carry, suitable for protected outdoor use., calibration is easier with 580 indicators.
- Rugged construction.
- Accuracy: 0.05% of capacity.
- All fuctions and units are clearly display on the LCD (with backlighting).
- Digits are 1-inch-high for easy distant viewing.
- Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
- Long battery life on 3 standards “LR6(AA)” size alkaline batteries.
- All commonly used internationally recognized units are available: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
- Infrared Remote control easier to calibration (with password).
- Infrared Remote control with many functions: “ZERO”,” TARE”,” CLEAR”, “PEAK”,” ACCUMULATE”,” HOLD”,” Unit Change”,” Voltage Check” and “Power OFF”.
- Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
- Gravity regulation: The acceleration of gravity can be regulated through indicator according to different places value
- 4 local mechanical keys:” ON/OFF”,” ZERO”,” PEAK” and” Unit Change”
- low battery warning.

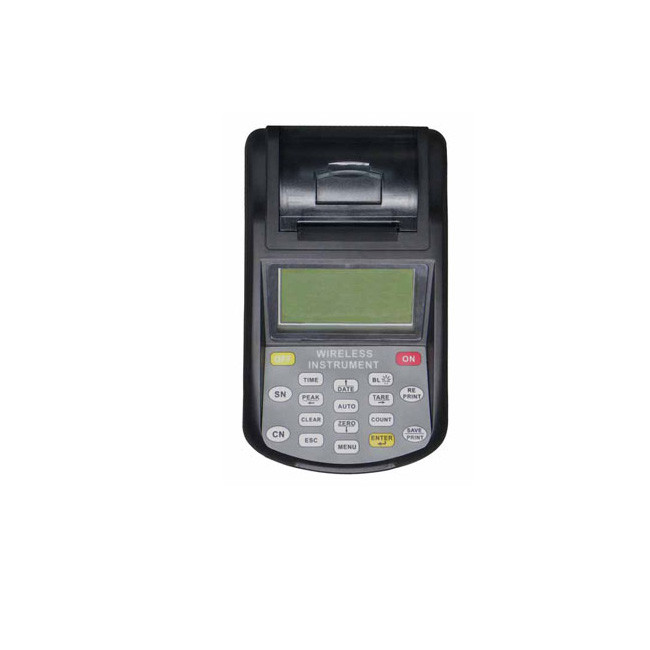

- 580 Indicator communications: Both RS232 serial port and USB port solve most laptops without serial port problem. with the Everight company’s PC host computer software, not only display weigh value and stable information on the PC, can also enter company’s name, complete storage, print query and other functions
- Antenna: Internal antenna for Wireless indicators and printer

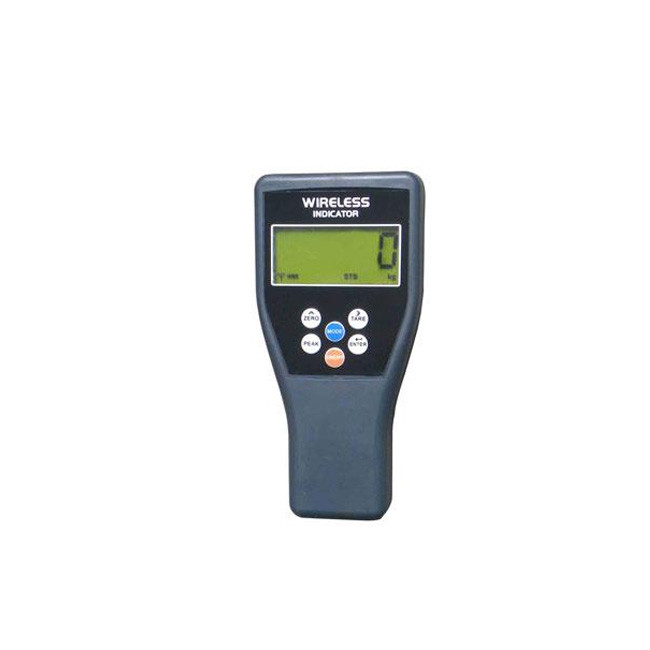

- RF wireless palm indicator. (Optional)
| Model | DL-R-01 | DL-R-02 | DL-R-03 | DL-R-05 | DL-R-10 | DL-R-20 | DL-R-30 | DL-R-50 | |||||
| Capacity x Readability | 1000 Kg
0.5 Kg |
2000 Kg
1 Kg |
3000 Kg
1 Kg |
5000 Kg
2 Kg |
10,00 Kg
5 Kg |
20,000 Kg
10 Kg |
30,00 Kg
10 Kg |
50,000 Kg
20 Kg |
|||||
| Digits | 5 Digit | ||||||||||||
| Display & Size | 25mm (1’’) LCD | ||||||||||||
| Tare Range | 20% F.S. | ||||||||||||
| Manual Zero | ±4% F.S. | ||||||||||||
| Reading Stable Time | ≤10 seconds | ||||||||||||
| Overload | 100% F.S. + 9e | ||||||||||||
| Max. Safety Load | 125% F.S. | ||||||||||||
| Ultimate Load | 400% F.S. | ||||||||||||
| Keys | ON/OFF”,” ZERO”,” PEAK” and” Unit Change” | ||||||||||||
| Functions | Unit conversion, Hold, Peak Hold, TARE, Zero, Accumulation,Calibration, Auto Zero, low battery alert, Illumination Level, Auto off, Programmable Set-Point, gravity acceleration | ||||||||||||
| Operating Temp | – 10 °C ~ + 40 °C | ||||||||||||
| Operating Humidity | ≤85% RH under 20℃ | ||||||||||||
| Battery Type | “LR6(AA)”size alkaline batteries. 1.5Vⅹ3 | ||||||||||||
| Battery for Remote controller | 7AAA battery, 1.5V×2 | ||||||||||||
| Hand held display battery | “LR6(AA)”size alkaline batteries. 1.5Vⅹ4 | ||||||||||||
| Indicator Battery | Rechargeable Ni-H battery, SC 3.5Ah | ||||||||||||
| Indicator printer | FUJITSU FTP-628 MCL101#50″ high speed thermal printer | ||||||||||||
| Battery Life | >40 hours | ||||||||||||
| Remote Control Distance | Min 15 Meter | ||||||||||||
| Wireless Frequency | 2.4GHz(default),433MHz,860MHz(optional) | ||||||||||||
| Wireless Distance | Min. 80m(default) [200m(optional)] | ||||||||||||
| Material | Aluminum | Aluminum | Aluminum | Aluminum | Alloy Steel | Alloy Steel | Alloy Steel | Alloy Steel | |||||
| Product Weight (approx.) | 1.6 | 2.1 | 2.1 | 2.7 | 10.4 | 17.8 | 25 | 39 | |||||
| Product Weight with Shackles (approx.) | 3.1 | 4.6 | 4.6 | 6.3 | 24.8 | 48.6 | 73 | 128 | |||||
| Warranty | 1 Year | ||||||||||||
